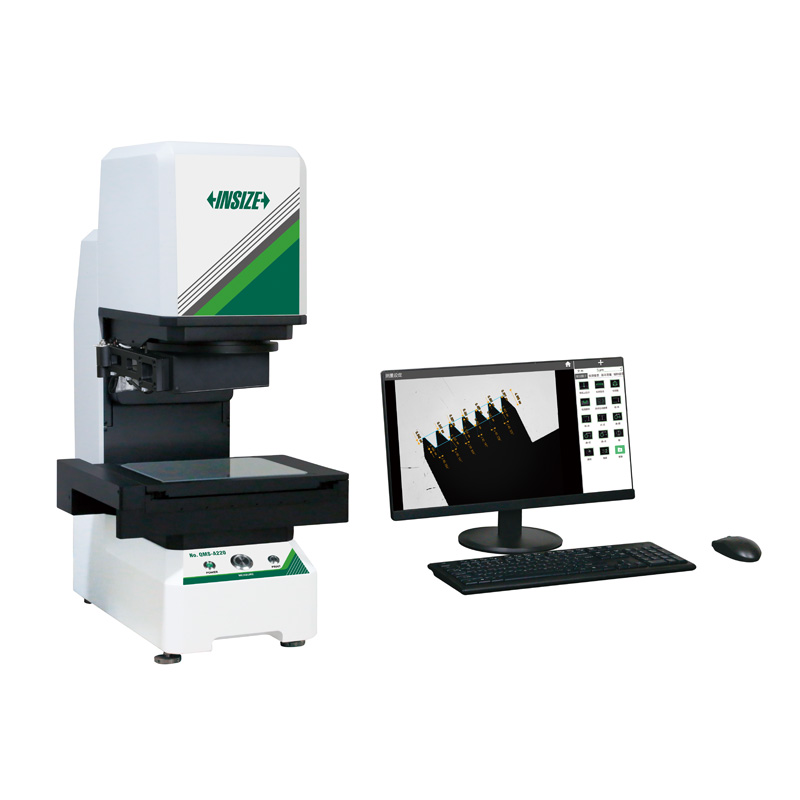

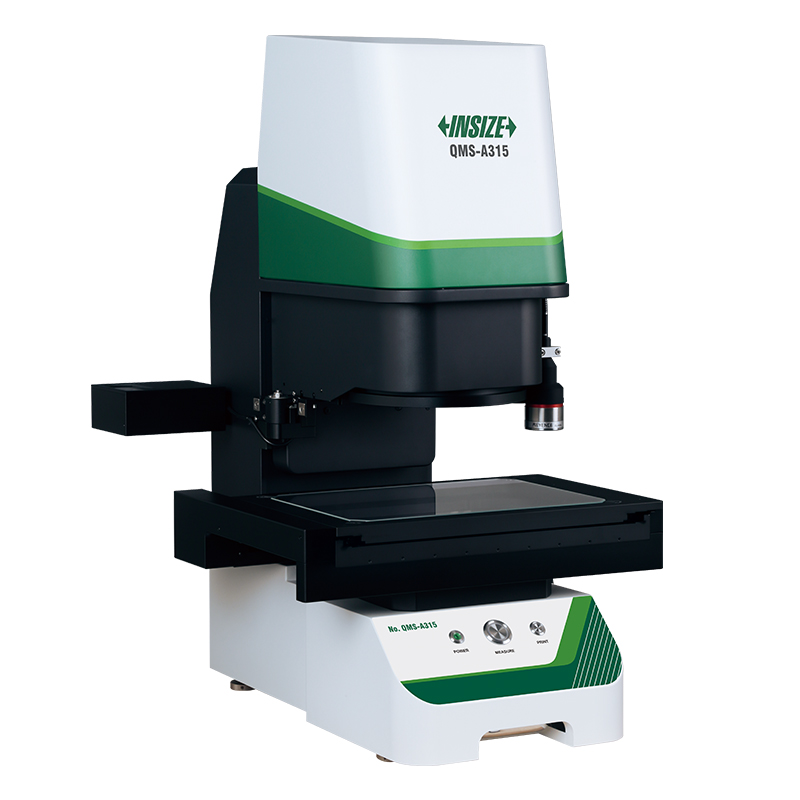

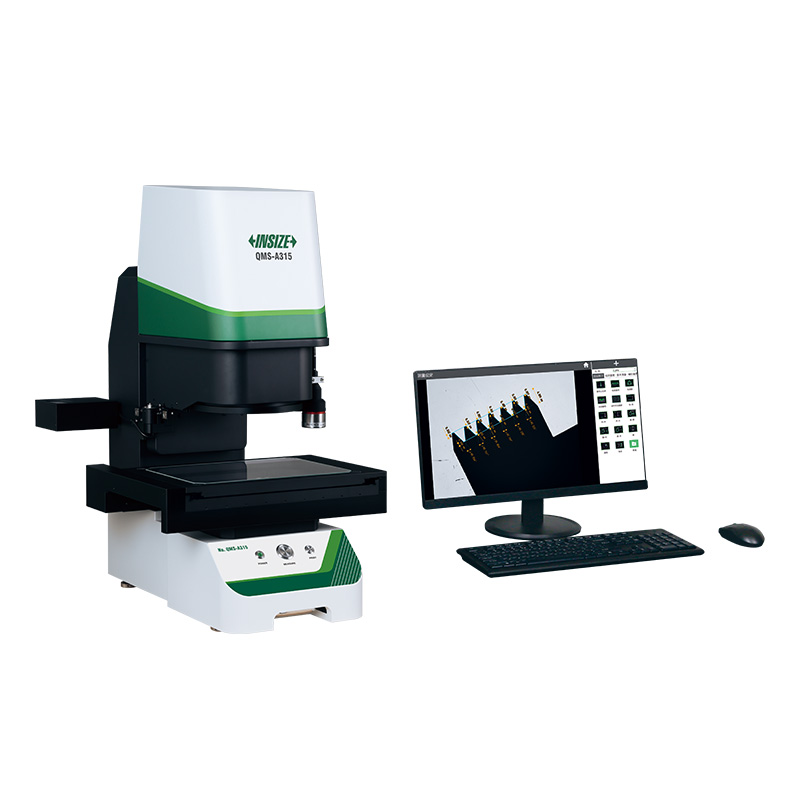

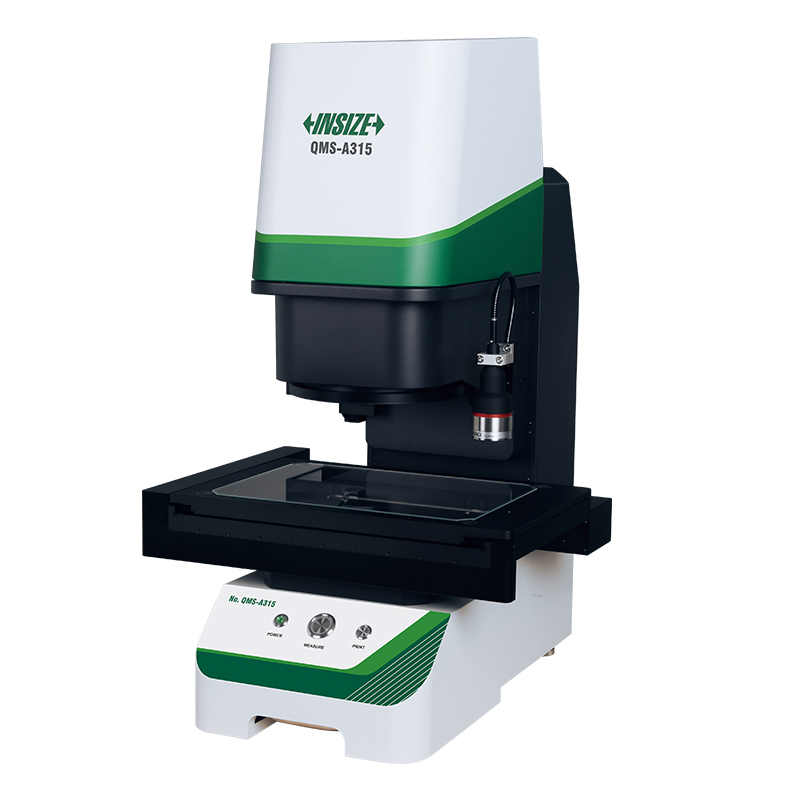

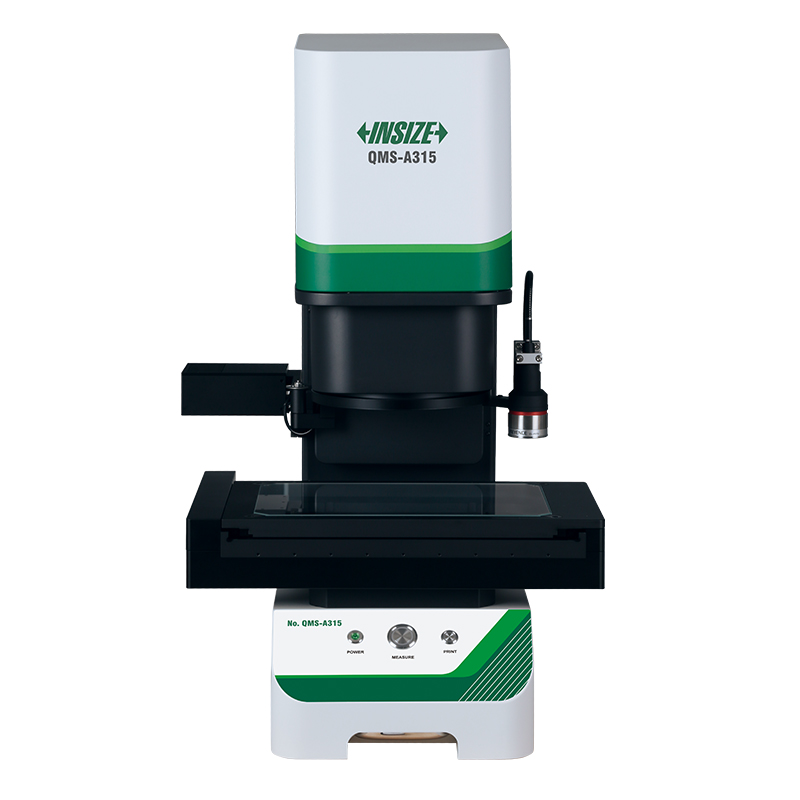

Quick Measurement Systems (With Stitching)
Code: QMS-A220/A315
One or more workpieces can be measured by one step operation
Place workpieces at any position
Focus and measure automatically
Measurement of 999+dimensions and 200+workpieces
| Code | Range | Without stitching accuracy | With stitching accuracy | Without stitching repeatability | With stitching repeatability | Max. load |
|---|---|---|---|---|---|---|
| QMS-A220 | wide view field:200×200mm/ small view field:130×130mm | wide view field:±3μm/small view field:±1μm | wide view field:±(5+0.02L)μm/small view field:±(3+0.02L)μm | wide view field:±1μm/small view field:±0.5μm | wide view field:±2μm/small view field:±1.5μm | 5kg |
| QMS-A315 | wide view field:300×200mm/ small view field:230×130mm | wide view field:±3μm/small view field:±1μm | wide view field:±(5+0.02L)μm/small view field:±(3+0.02L)μm | wide view field:±1μm/small view field:±0.5μm | wide view field:±2μm/small view field:±1.5μm | 5kg |
