Capacitive Displacement Sensor And Measurement System
Code: 9437

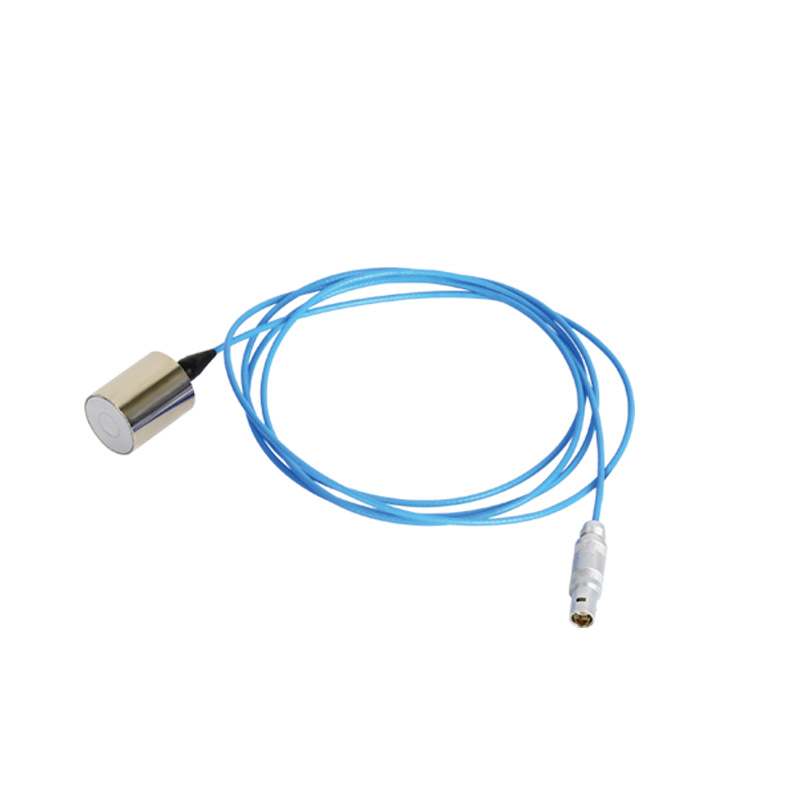

Capacitive displacement sensor: Suitable for measurements of micro-displacement, runout, deformation, high-frequency vibration etc. Three-electrode design improves anti-interference capability. Non-contact, wear-free measurement. Close-range high precision, nanometer-level resolution. Wide operation temperature range. Cable length: 1.5 m (can be customized)

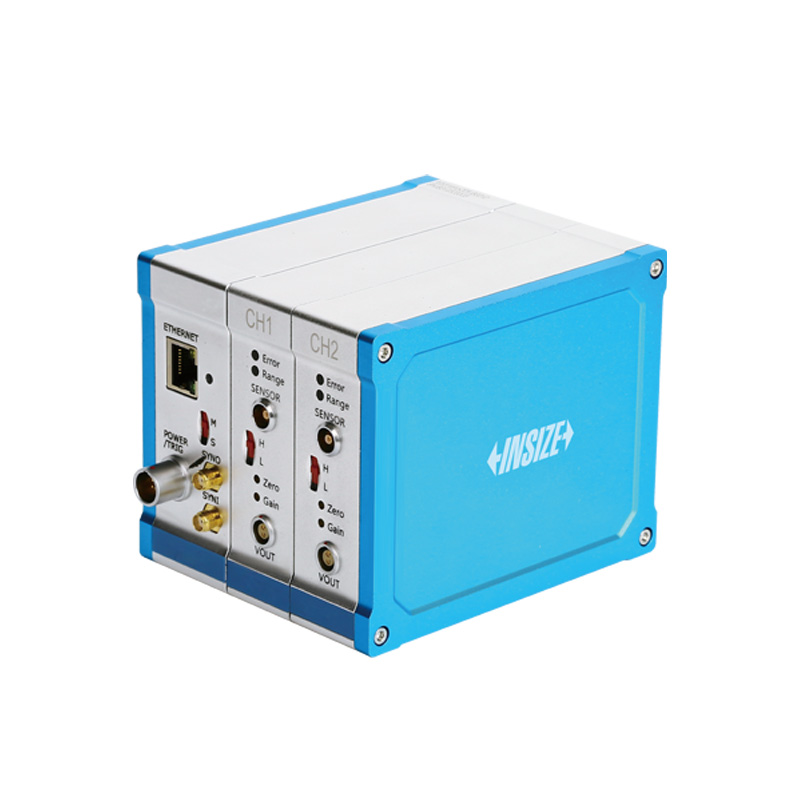

Measurement system: Industrial DIN-rail design, easy for installation. Multiple interfaces for signal communication. Standard PC software: 9437-SOFTWARE, for real-time reading and data logging.
| Code | Type | Range | Accuracy |
|---|---|---|---|
| 9437-A005 | capacitive | 0.05mm | 0.0125µm |
| 9437-A02 | capacitive | 0.2mm | 0.05µm |
| 9437-A05 | capacitive | 0.5mm | 0.125µm |
| 9437-A08 | capacitive | 0.8mm | 0.2µm |
| 9437-A1 | capacitive | 1mm | 0.25µm |
| 9437-A2 | capacitive | 2mm | 0.5µm |
| 9437-A3 | capacitive | 3mm | 0.75µm |
| 9437-A5 | capacitive | 5mm | 1.25µm |
| 9437-A7 | capacitive | 7mm | 1.75µm |
| 9437-A10 | capacitive | 10mm | 2.5µm |
