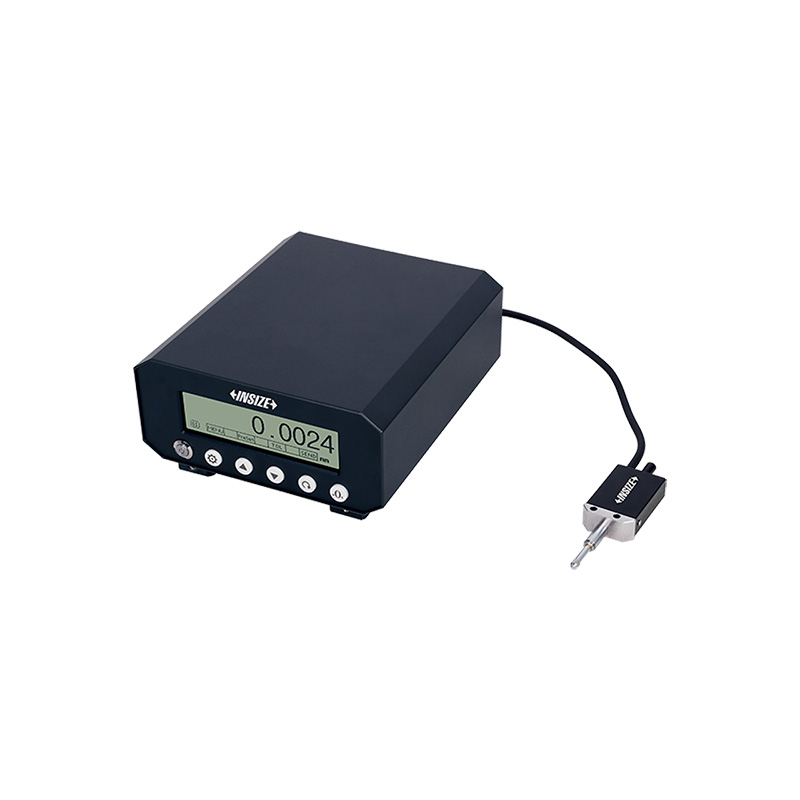

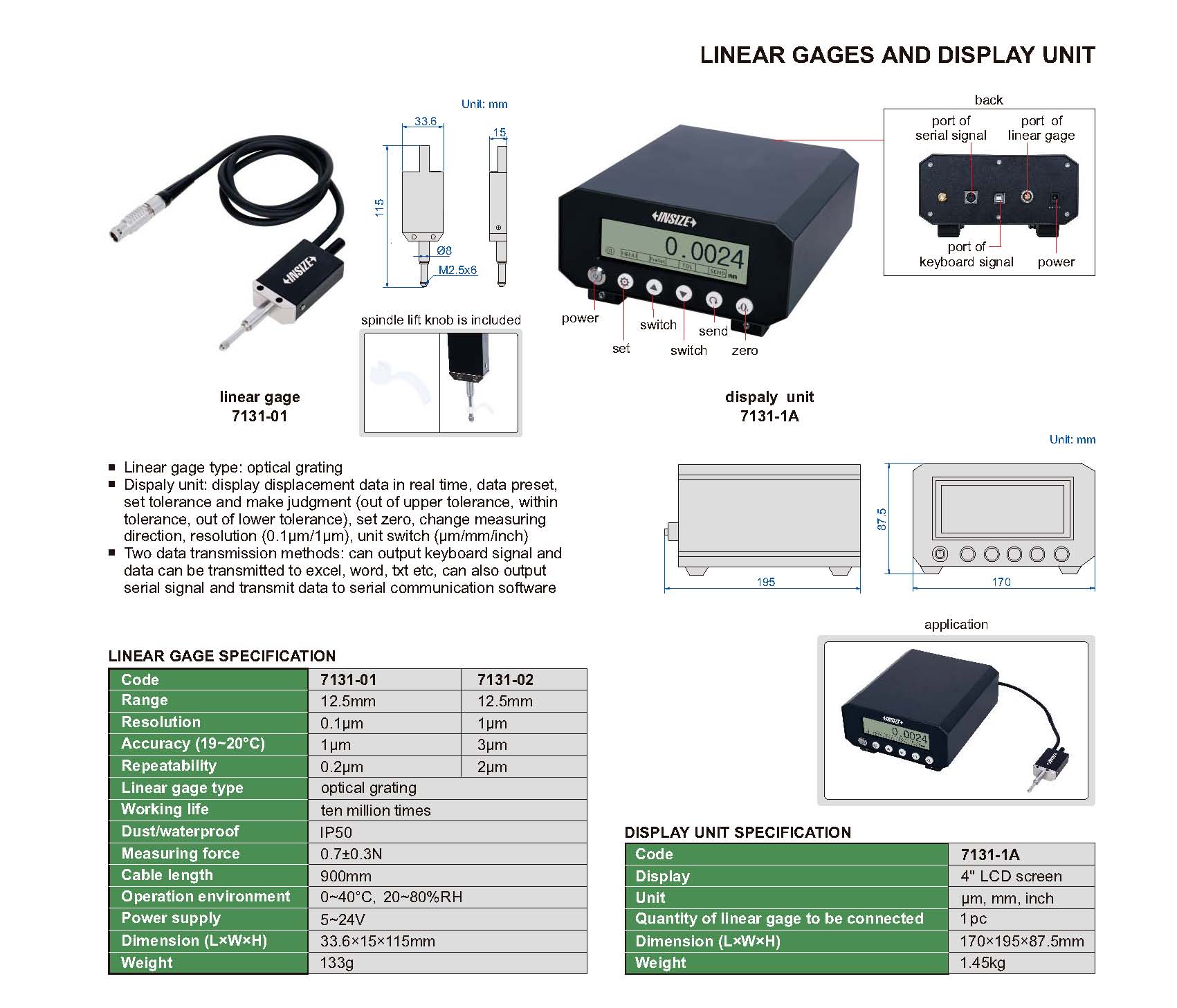

Linear Gage And Display Unit
Code: 7131
Linear gage type: optical grating
Dispaly unit: display displacement data in real time, data preset, set tolerance and make judgment (out of upper tolerance, within tolerance, out of lower tolerance), set zero, change measuring direction, resolution (0.1μm/1μm), unit switch (µm/mm/inch)
Two data transmission methods: can output keyboard signal and data can be transmitted to excel, word, txt etc, can also output serial signal and transmit data to serial communication software
| Code | Type | Range | Accuracy | Resolution |
|---|---|---|---|---|
| 7131-01 | Optical grating | 12.5mm | 1µm(19~20°C) | 0.1µm |
| 7131-02 | Optical grating | 12.5mm | 3µm(19~20°C) | 1µm |
