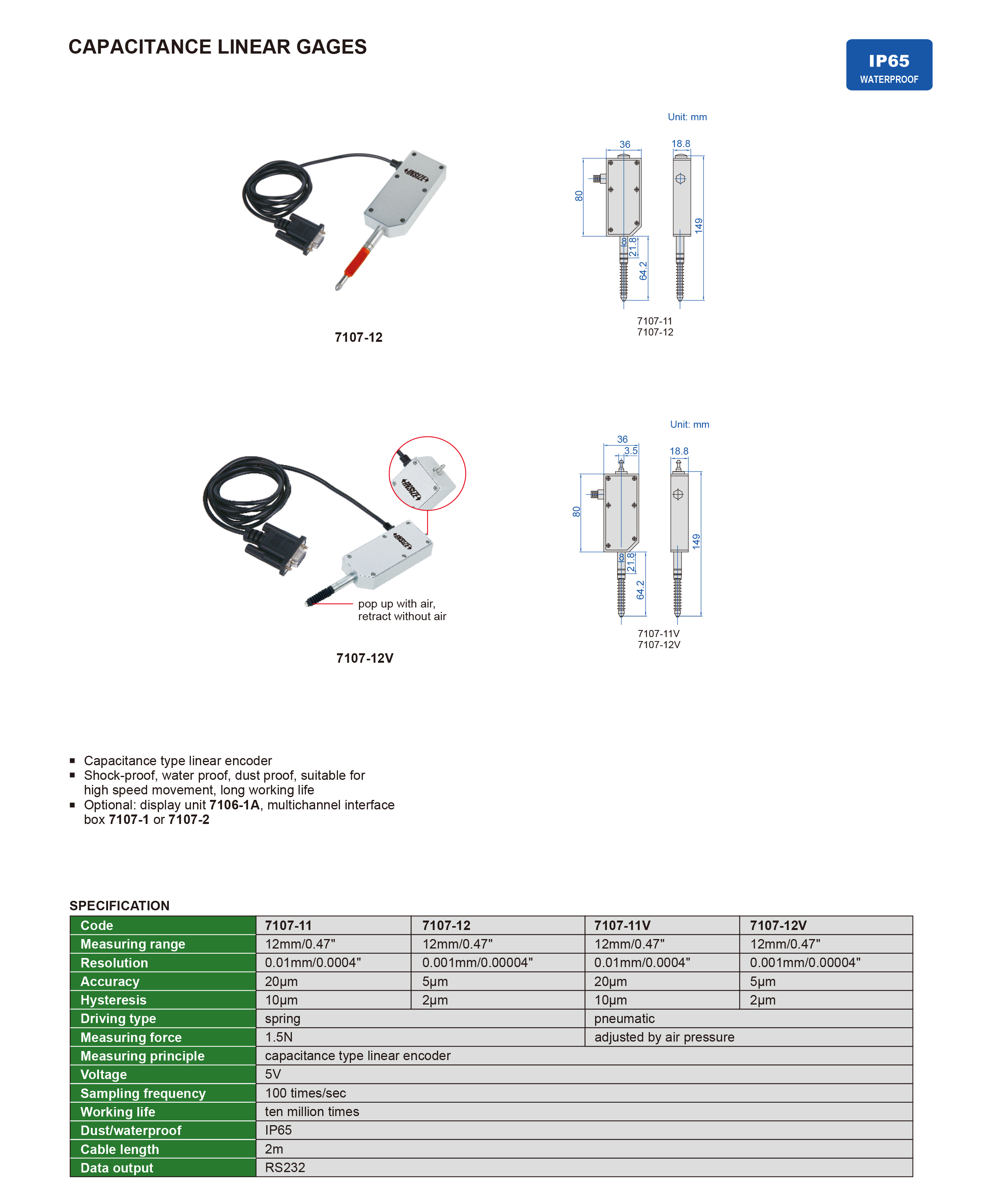

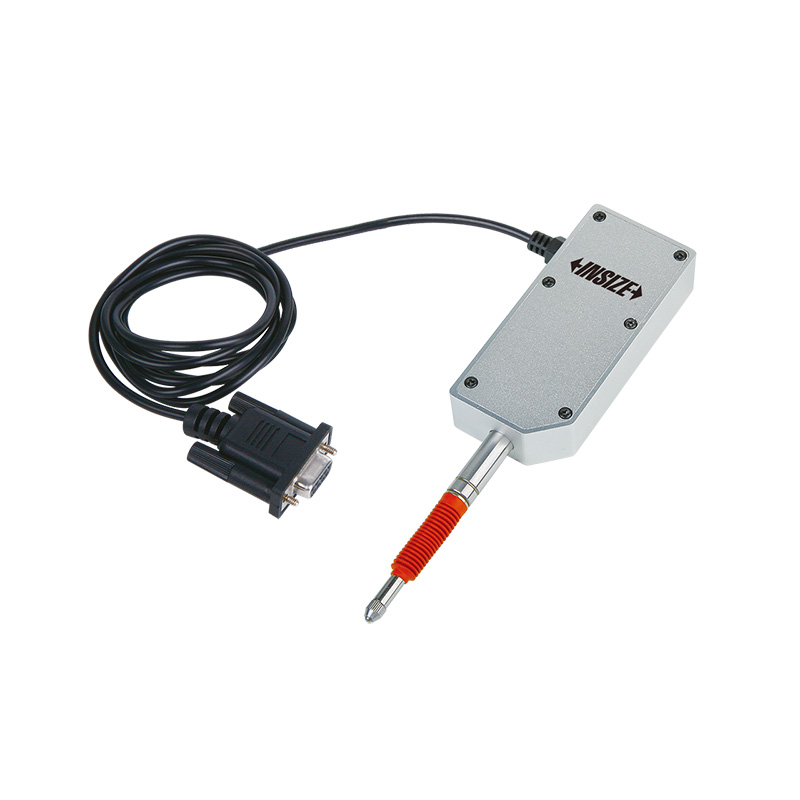

Capacitance Linear Gauges
Code: 7107 Series
Capacitance type linear encoder
Shock-proof, water proof, dust proof, suitable for high speed movement, long working life
Optional: display unit 7106-1A, multichannel interface box 7107-1 or 7107-2
| Code | Type | Range | Accuracy | Driving type |
|---|---|---|---|---|
| 7107-11 | Capacitance | 12mm/0.47" | 20µm | spring |
| 7107-12 | Capacitance | 12mm/0.47" | 5µm | spring |
| 7107-11V | Capacitance | 12mm/0.47" | 20µm | pneumatic |
| 7107-12V | Capacitance | 12mm/0.47" | 5µm | pneumatic |
