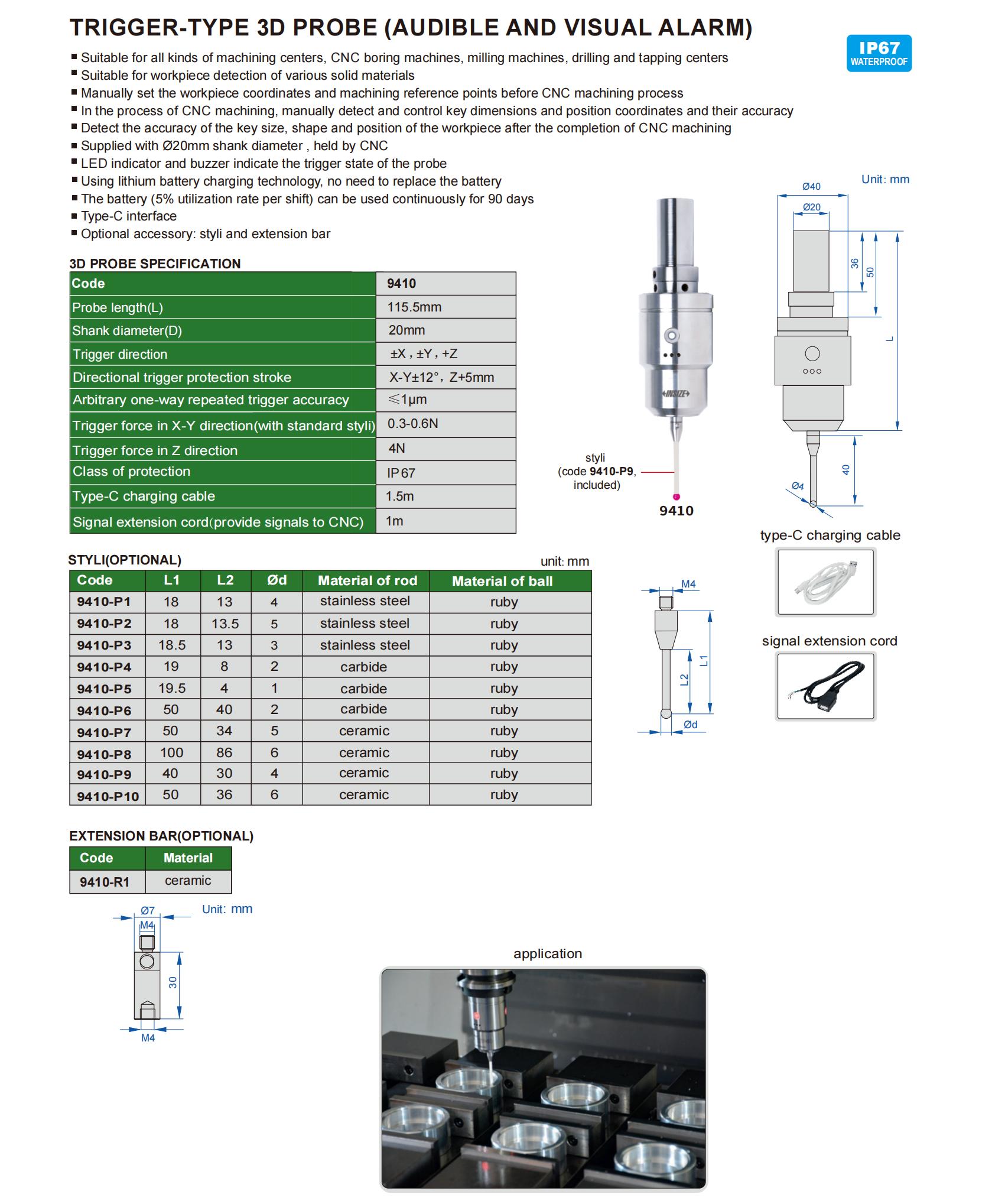

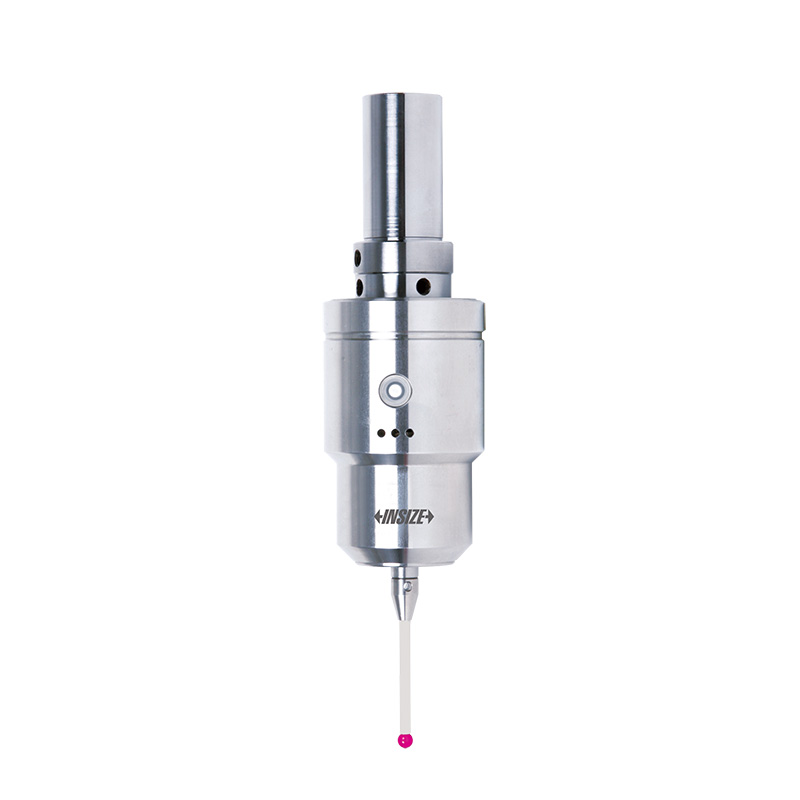

Trigger-Type 3d Probe (Audible And Visual Alarm)
Code: 9410
Suitable for all kinds of machining centers, CNC boring machines, milling machines, drilling and tapping centers
Suitable for workpiece detection of various solid materials
Manually set the workpiece coordinates and machining reference points before CNC machining process
In the process of CNC machining, manually detect and control key dimensions and position coordinates and their accuracy
Detect the accuracy of the key size, shape and position of the workpiece after the completion of CNC machining
| Code | Accuracy | Probe length (L) | Protection stroke | Trigger force |
|---|---|---|---|---|
| 9410 | ≤1μm | 115.5mm | X-Y: ±12°, Z: +5mm | X and Y axis: 0.3-0.6N, Z axis: 4N |
