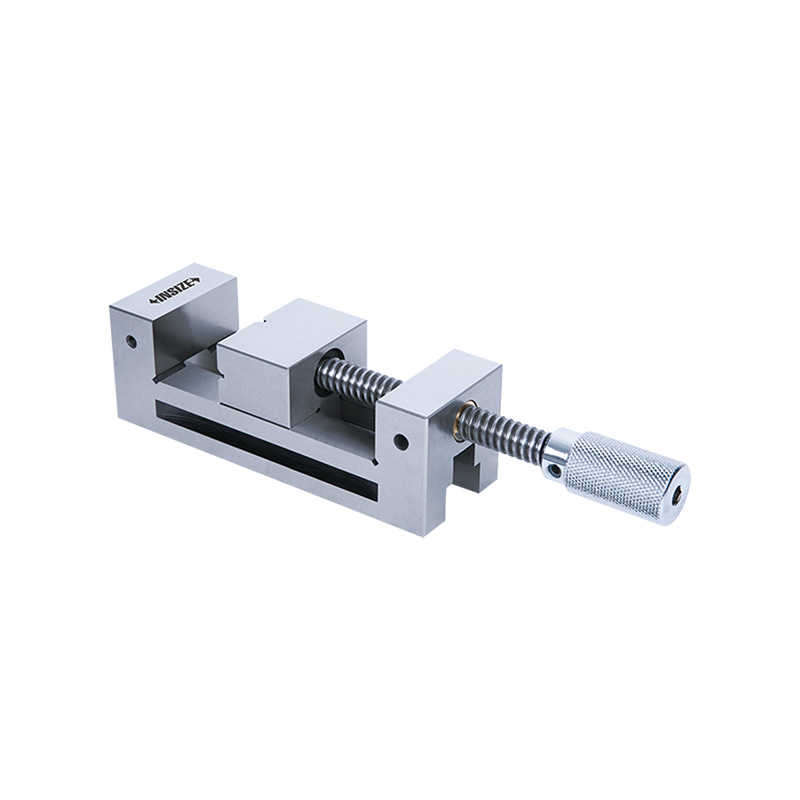

Precision Vises (High Precision)
Code: 6525
Made of alloy steel
Hardness HRC58-62

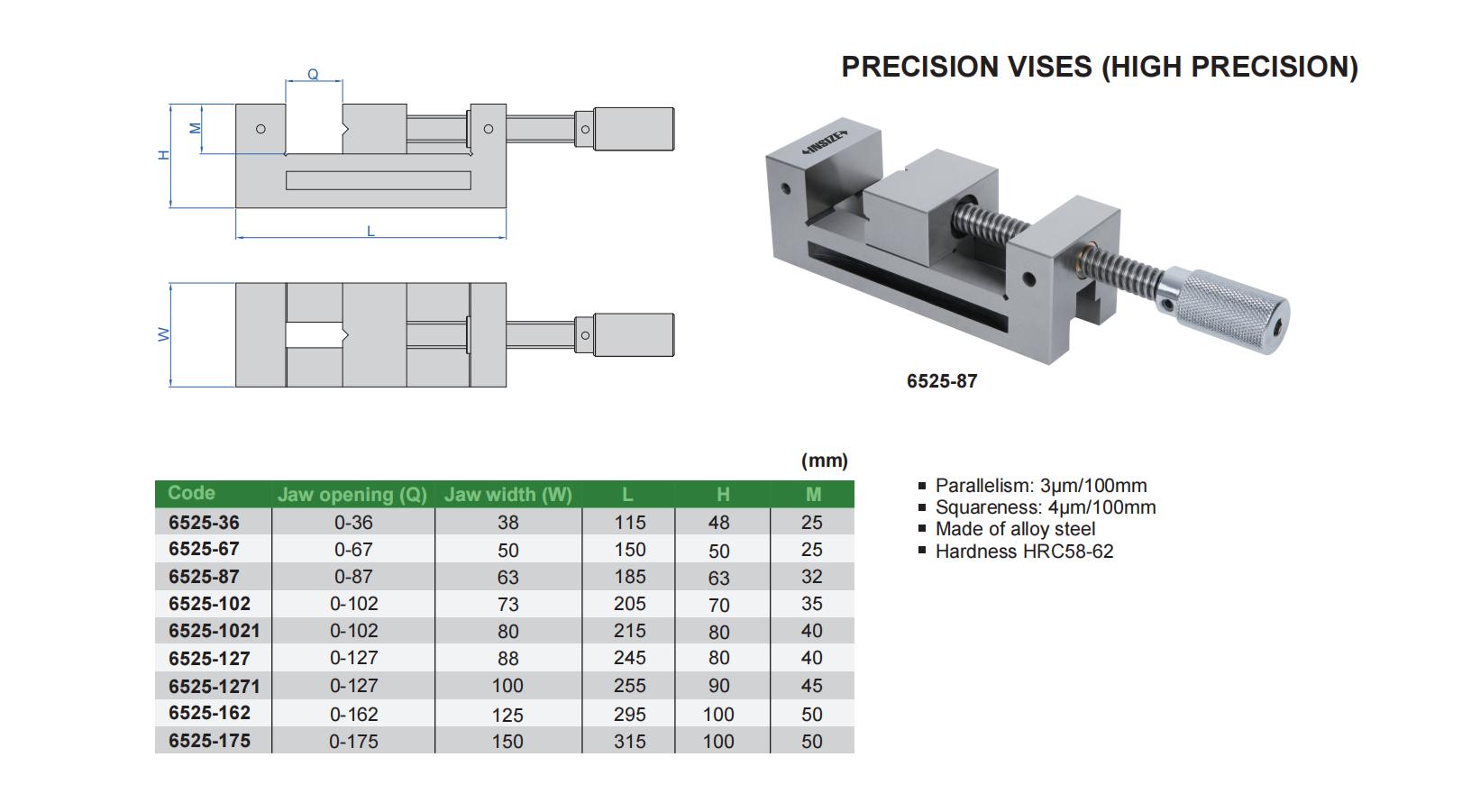

| Code | Jaw opening (Q) | Jaw width (W) | Parallelism | Squareness |
|---|---|---|---|---|
| 6525-36 | 0-36mm | 38mm | 3μm/100mm | 4μm/100mm |
| 6525-67 | 0-67mm | 50mm | 3μm/100mm | 4μm/100mm |
| 6525-87 | 0-87mm | 63mm | 3μm/100mm | 4μm/100mm |
| 6525-102 | 0-102mm | 73mm | 3μm/100mm | 4μm/100mm |
| 6525-1021 | 0-102mm | 80mm | 3μm/100mm | 4μm/100mm |
| 6525-127 | 0-127mm | 88mm | 3μm/100mm | 4μm/100mm |
| 6525-1271 | 0-127mm | 100mm | 3μm/100mm | 4μm/100mm |
| 6525-162 | 0-162mm | 125mm | 3μm/100mm | 4μm/100mm |
| 6525-175 | 0-175mm | 150mm | 3μm/100mm | 4μm/100mm |
