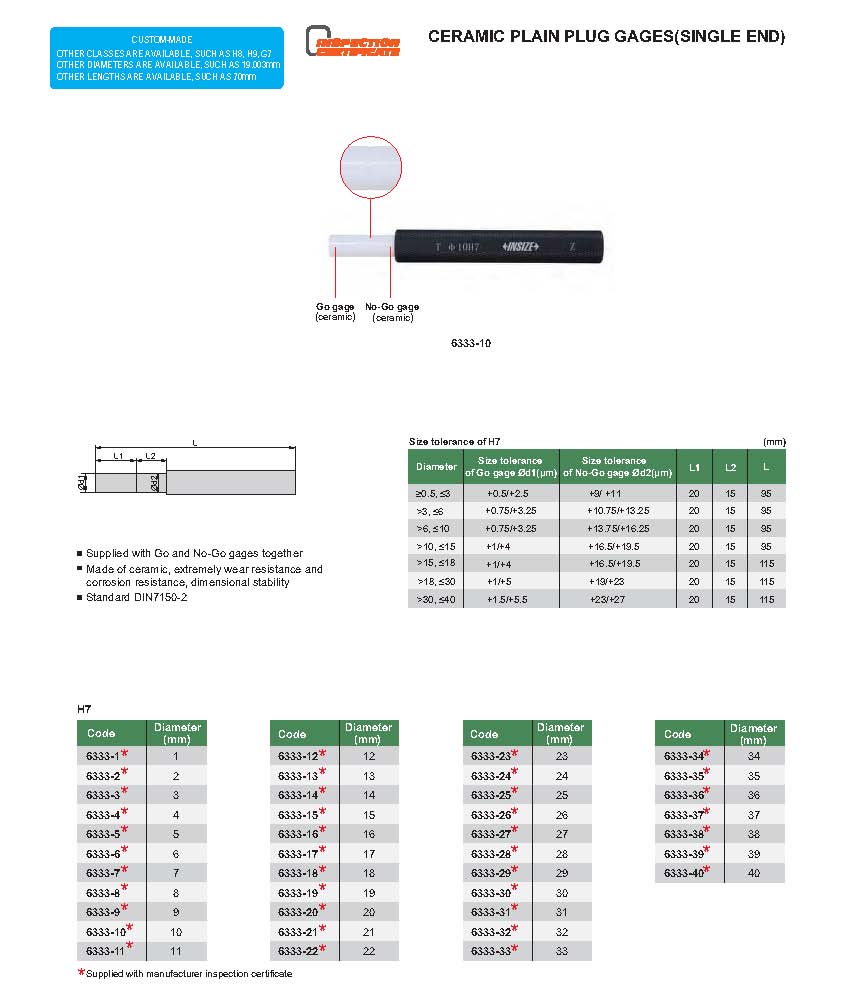

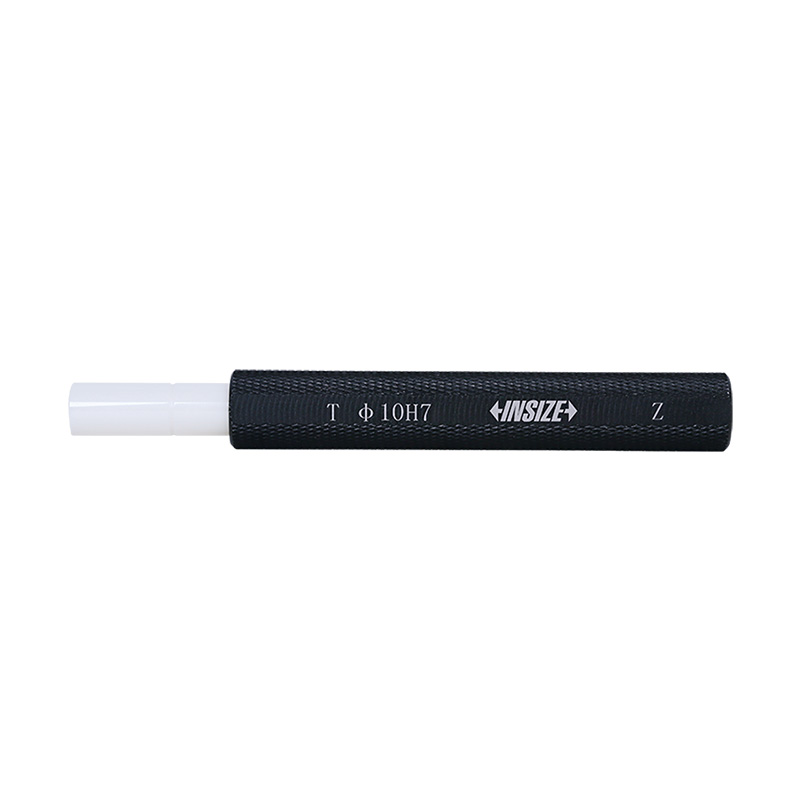

Ceramic Plain Plug Gauges (Single End)
Code: 6333
Supplied with Go and No-Go gauges together
Made of ceramic, extremely wear resistance and corrosion resistance, dimensional stability
Standard DIN7150-2
| Code | Diameter (ØD) | Class |
|---|---|---|
| 6333-1 | 1mm | H7 |
| 6333-2 | 2mm | H7 |
| 6333-3 | 3mm | H7 |
| 6333-4 | 4mm | H7 |
| 6333-5 | 5mm | H7 |
| 6333-6 | 6mm | H7 |
| 6333-7 | 7mm | H7 |
| 6333-8 | 8mm | H7 |
| 6333-9 | 9mm | H7 |
| 6333-10 | 10mm | H7 |
| 6333-11 | 11mm | H7 |
| 6333-12 | 12mm | H7 |
| 6333-13 | 13mm | H7 |
| 6333-14 | 14mm | H7 |
| 6333-15 | 15mm | H7 |
| 6333-16 | 16mm | H7 |
| 6333-17 | 17mm | H7 |
| 6333-18 | 18mm | H7 |
| 6333-19 | 19mm | H7 |
| 6333-20 | 20mm | H7 |
| 6333-21 | 21mm | H7 |
| 6333-22 | 22mm | H7 |
| 6333-23 | 23mm | H7 |
| 6333-24 | 24mm | H7 |
| 6333-25 | 25mm | H7 |
| 6333-26 | 26mm | H7 |
| 6333-27 | 27mm | H7 |
| 6333-28 | 28mm | H7 |
| 6333-29 | 29mm | H7 |
| 6333-30 | 30mm | H7 |
| 6333-31 | 31mm | H7 |
| 6333-32 | 32mm | H7 |
| 6333-33 | 33mm | H7 |
| 6333-34 | 34mm | H7 |
| 6333-35 | 35mm | H7 |
| 6333-36 | 36mm | H7 |
| 6333-37 | 37mm | H7 |
| 6333-38 | 38mm | H7 |
| 6333-39 | 39mm | H7 |
| 6333-40 | 40mm | H7 |
