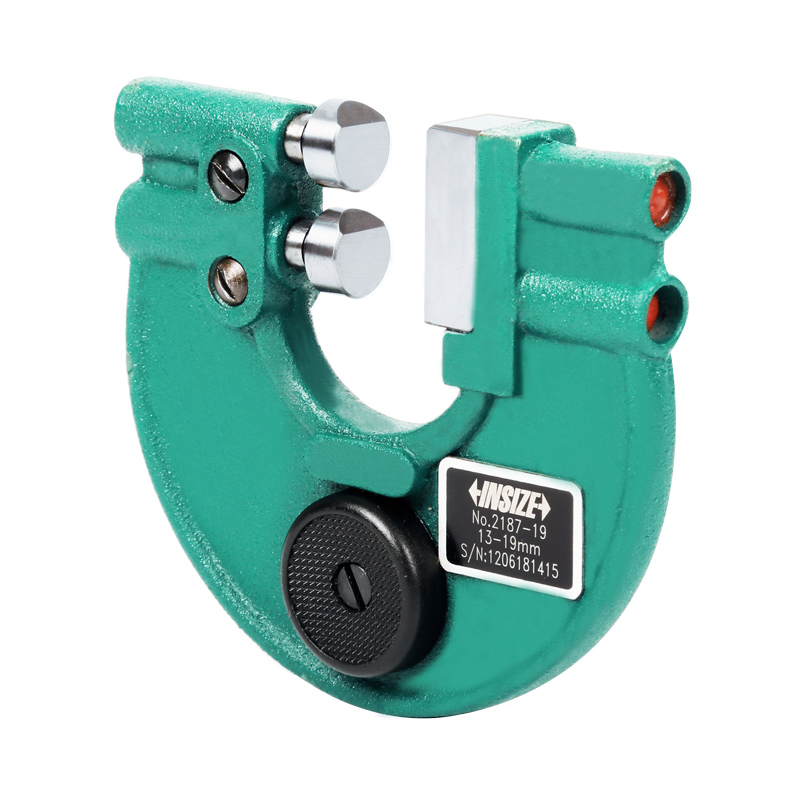

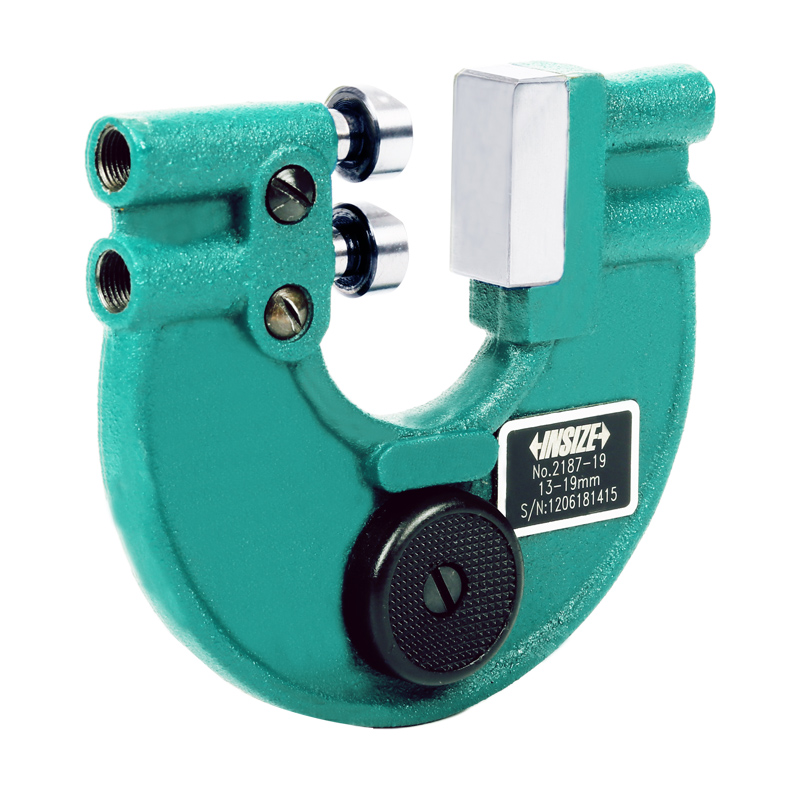

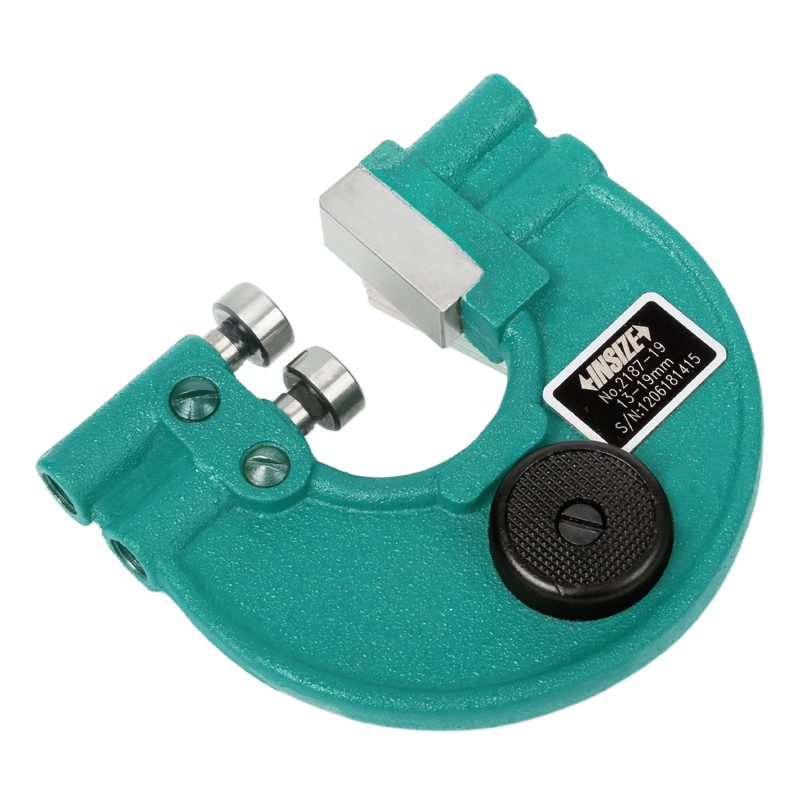

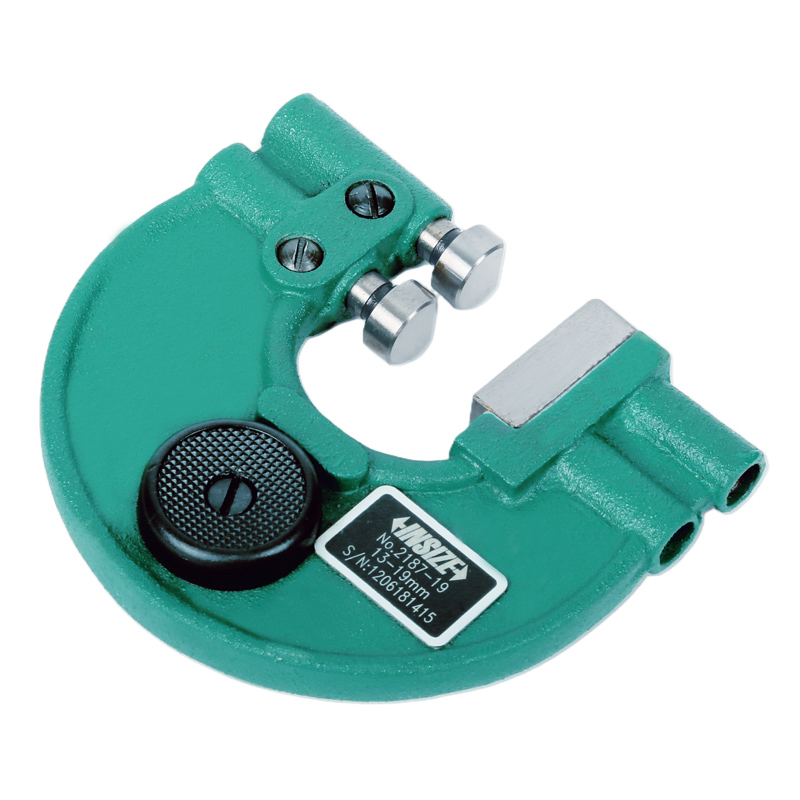

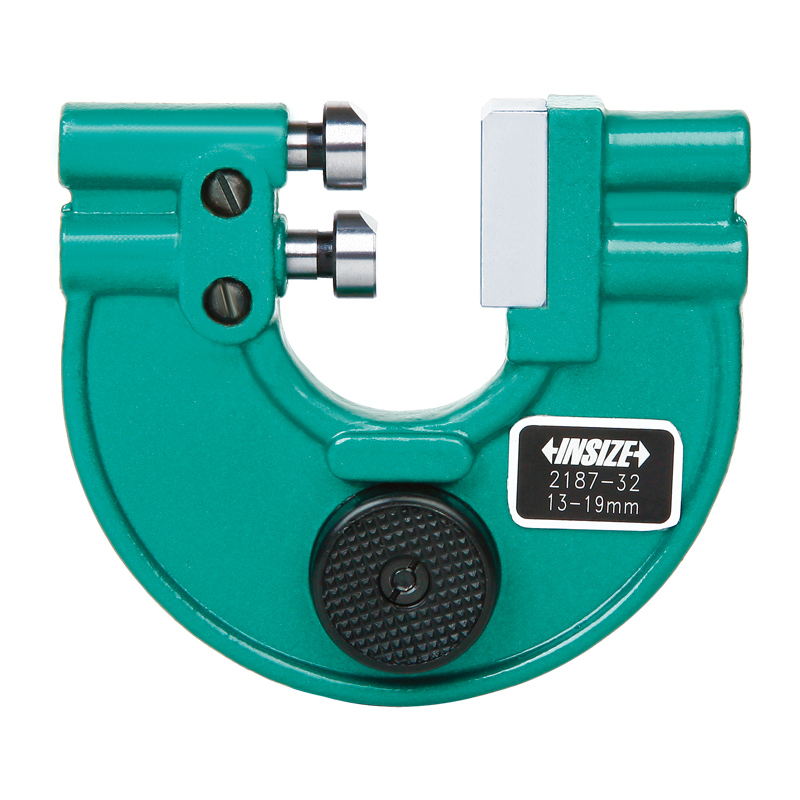

Adjustable Snap Gauges
Code: 2187
Used as Go/No-Go gauge by setting upper and lower limits
Flatness of anvil: 1.5μm
Parallelism of measuring faces: range 0-32mm: 3μm, range 32-89mm: 4μm, range 89-300mm: 5μm

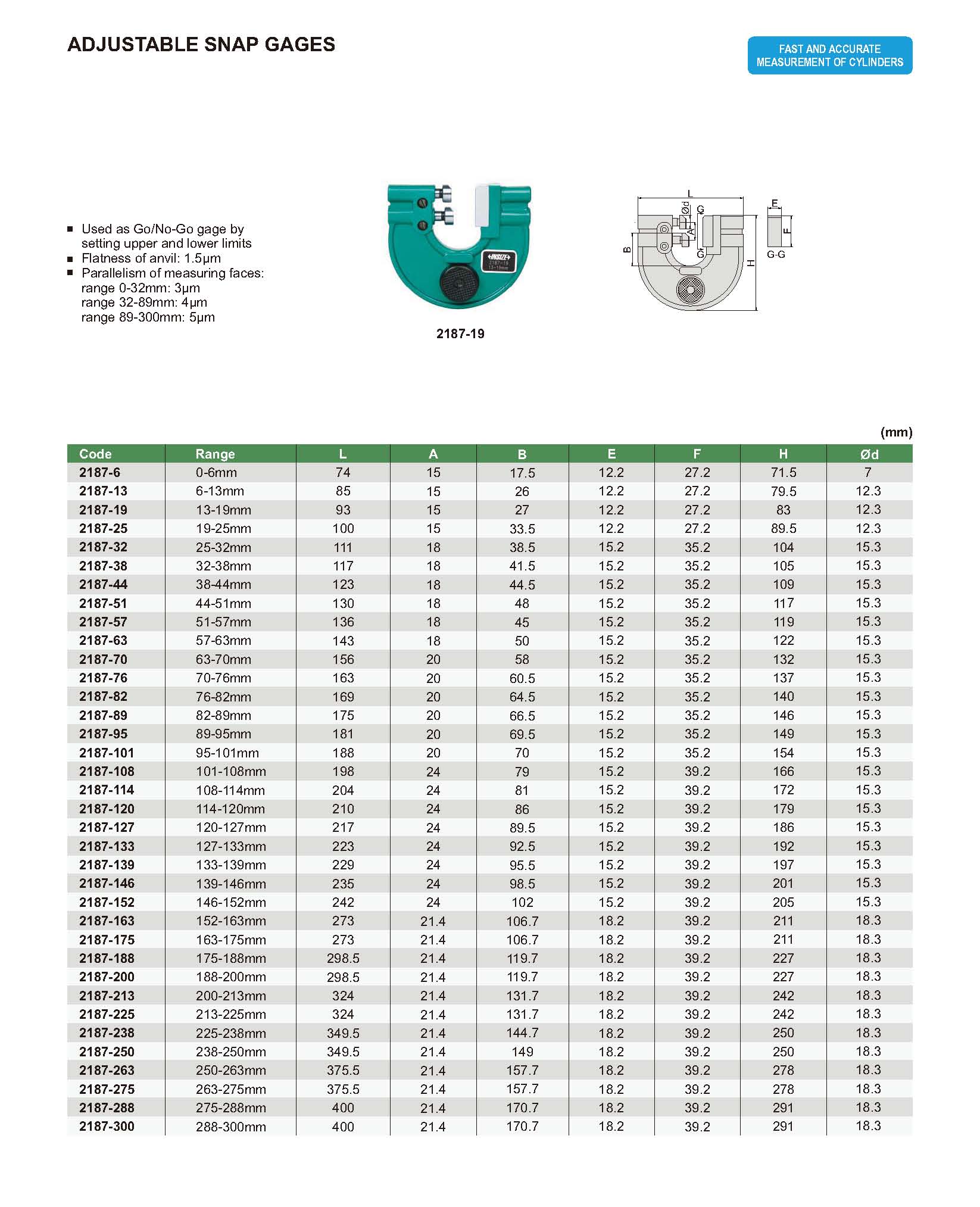

| Code | Range |
|---|---|
| 2187-6 | 0-6mm |
| 2187-13 | 6-13mm |
| 2187-19 | 13-19mm |
| 2187-25 | 19-25mm |
| 2187-32 | 25-32mm |
| 2187-38 | 32-38mm |
| 2187-44 | 38-44mm |
| 2187-51 | 44-51mm |
| 2187-57 | 51-57mm |
| 2187-63 | 57-63mm |
| 2187-70 | 63-70mm |
| 2187-76 | 70-76mm |
| 2187-82 | 76-82mm |
| 2187-89 | 82-89mm |
| 2187-95 | 89-95mm |
| 2187-101 | 95-101mm |
| 2187-108 | 101-108mm |
| 2187-114 | 108-114mm |
| 2187-120 | 114-120mm |
| 2187-127 | 120-127mm |
| 2187-133 | 127-133mm |
| 2187-139 | 133-139mm |
| 2187-146 | 139-146mm |
| 2187-152 | 146-152mm |
| 2187-163 | 152-163mm |
| 2187-175 | 163-175mm |
| 2187-188 | 175-188mm |
| 2187-200 | 188-200mm |
| 2187-213 | 200-213mm |
| 2187-225 | 213-225mm |
| 2187-238 | 225-238mm |
| 2187-250 | 238-250mm |
| 2187-263 | 250-263mm |
| 2187-275 | 263-275mm |
| 2187-288 | 275-288mm |
| 2187-300 | 288-300mm |
