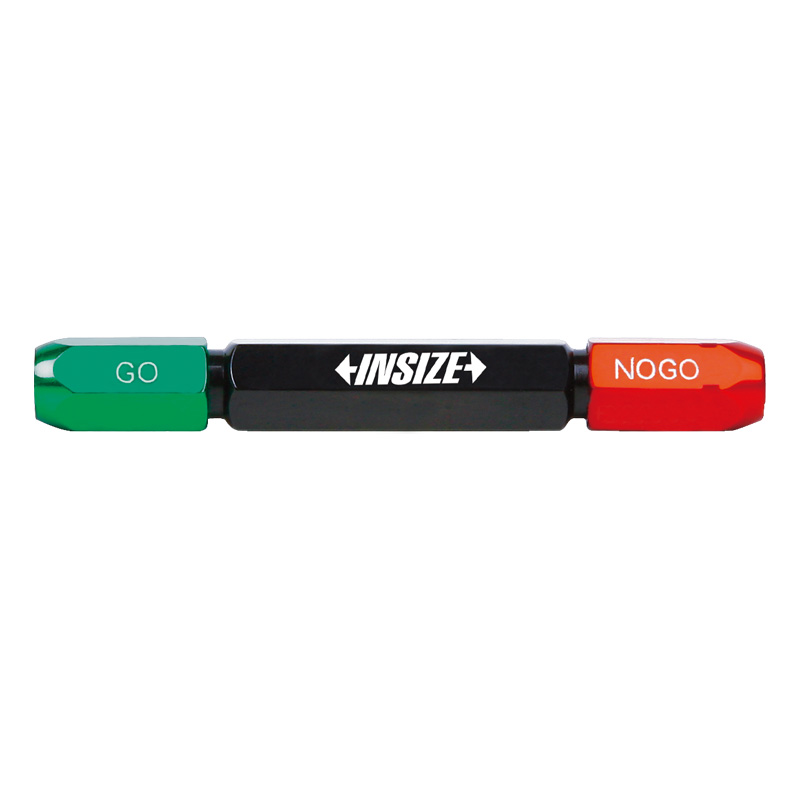

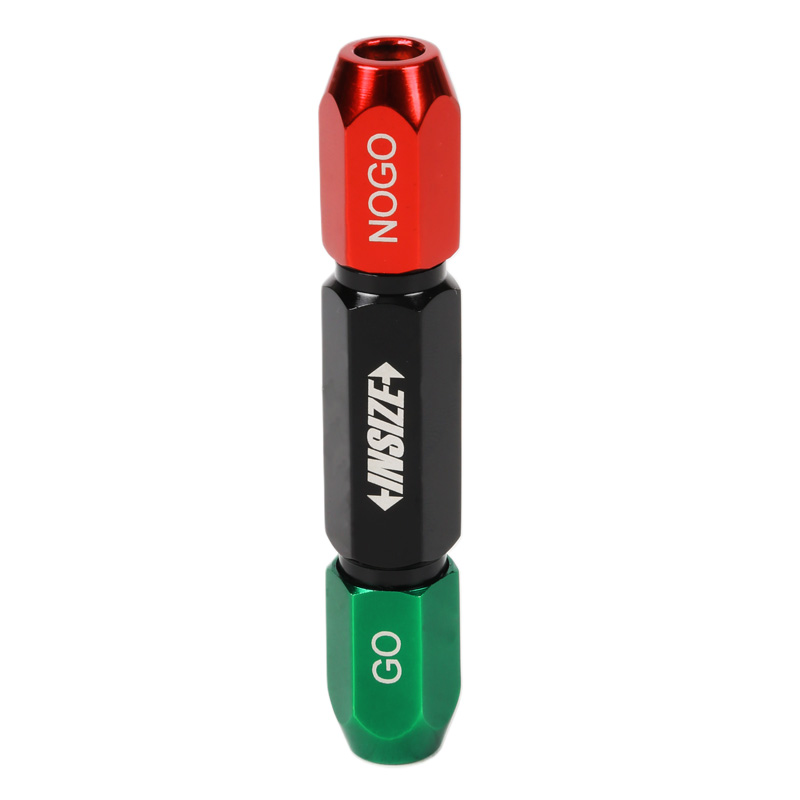

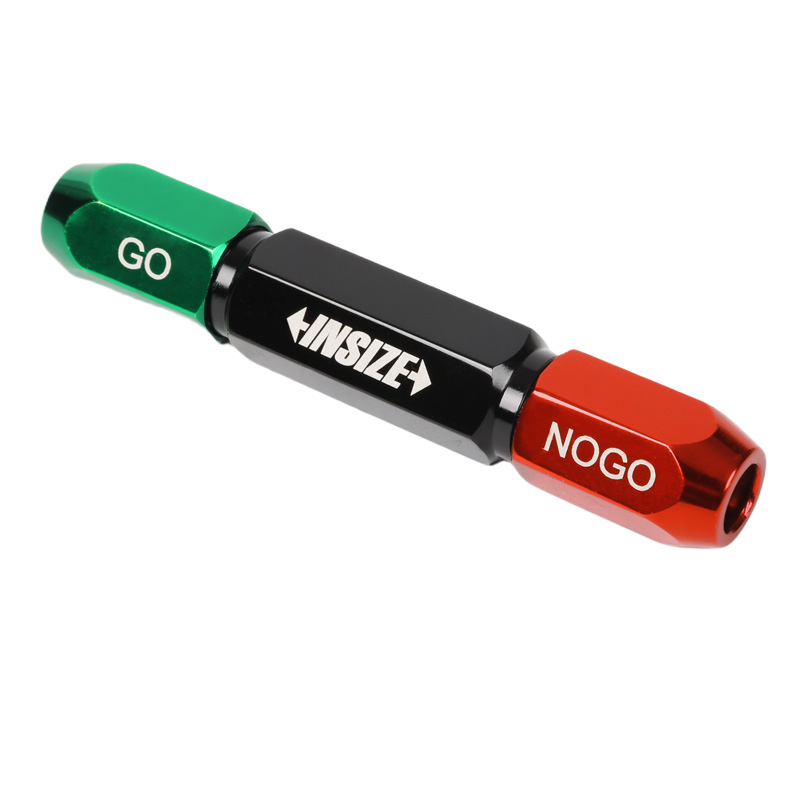

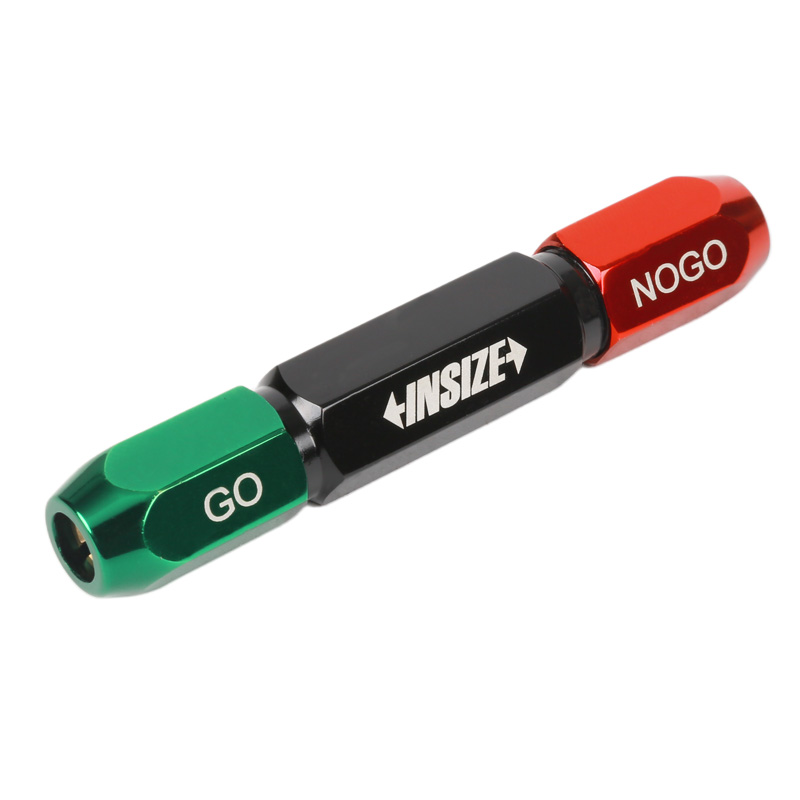

Pin Gauge Handles (Operated With Wrench)
Code: 7341
Wrench is needed to install pins
Clamping bushes (0.2~7.14mm) are made of brass, clamping bushes (7.14~24.80mm) are made of aluminum
| Code | Material | Applicable pin gauge diameter |
|---|---|---|
| 7341-0S | aluminum | 0.2-1.02mm |
| 7341-1S | aluminum | 1.02-1.91mm |
| 7341-2S | aluminum | 1.91-3.33mm |
| 7341-3S | aluminum | 3.33-4.57mm |
| 7341-4S | aluminum | 4.57-5.79mm |
| 7341-5S | aluminum | 5.79-7.14mm |
| 7341-6S | aluminum | 7.14-8.66mm |
| 7341-7S | aluminum | 8.66-10.31mm |
| 7341-8S | aluminum | 10.31-11.81mm |
| 7341-9S | aluminum | 11.81-12.95mm |
| 7341-10S | aluminum | 12.95-14.71mm |
| 7341-11S | aluminum | 14.71-16.13mm |
| 7341-12S | aluminum | 16.13-17.88mm |
| 7341-13S | aluminum | 17.88-19.30mm |
| 7341-15S | aluminum | 19.30-24.80mm |
