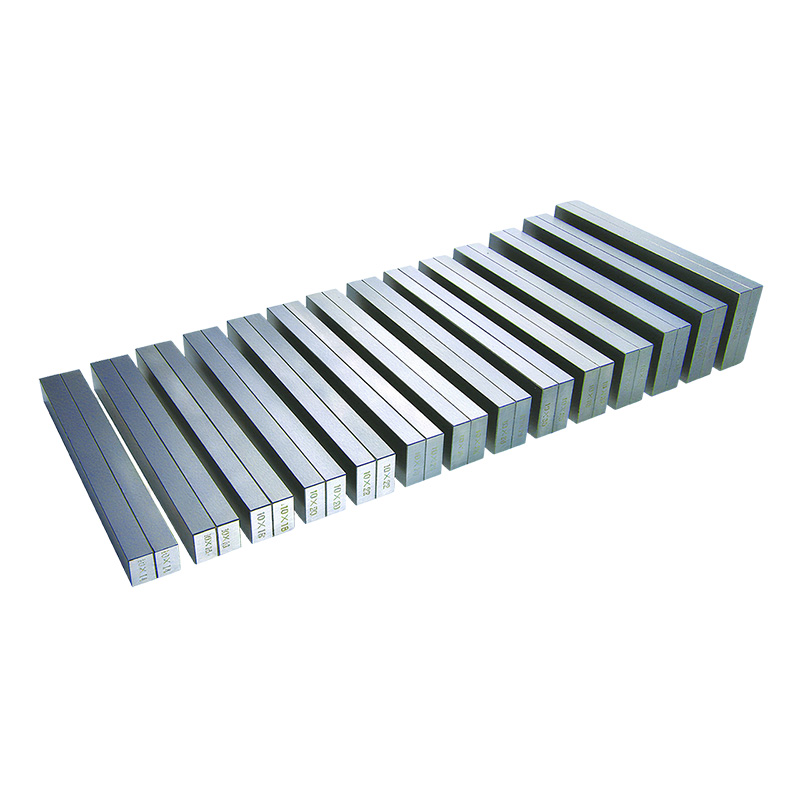

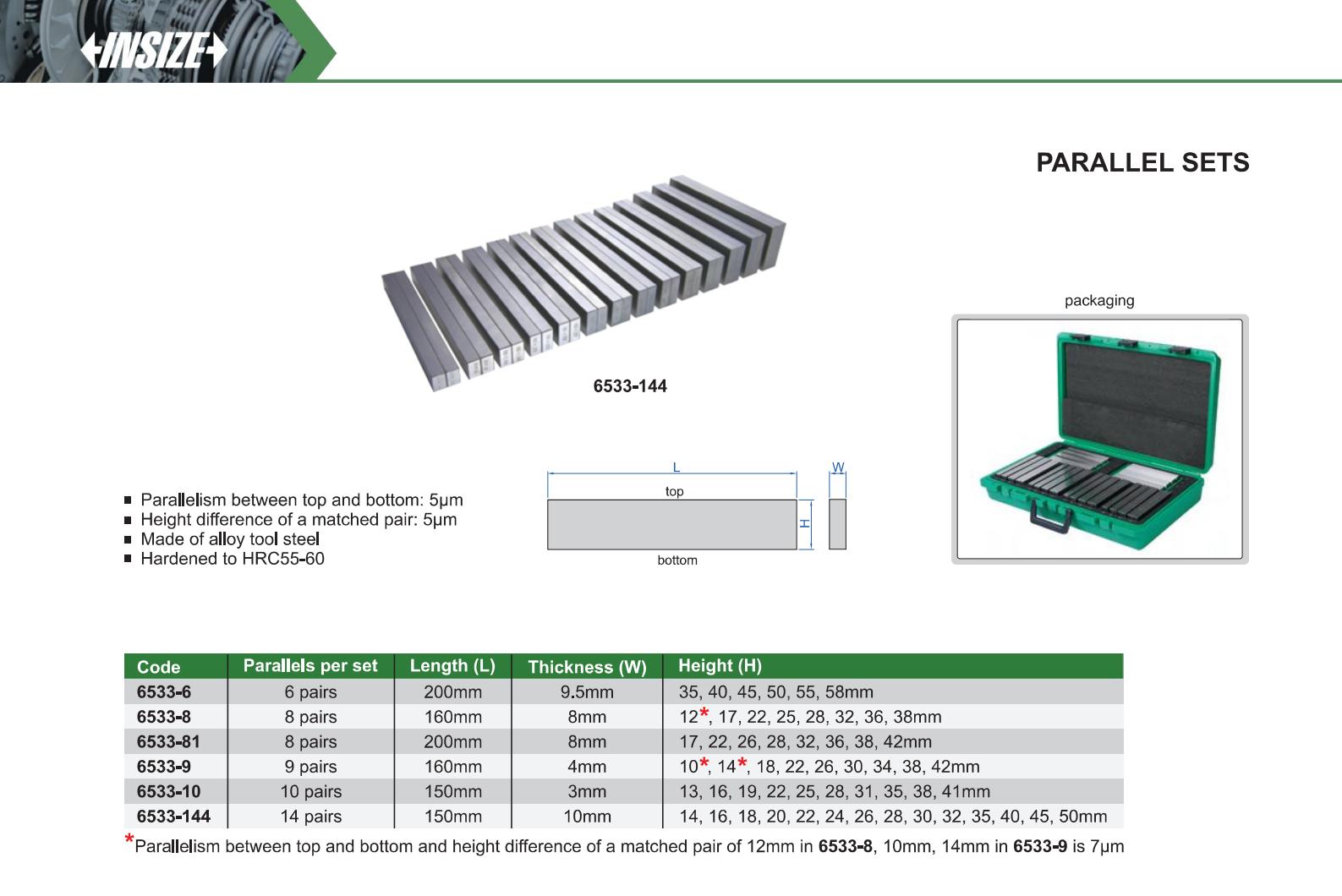

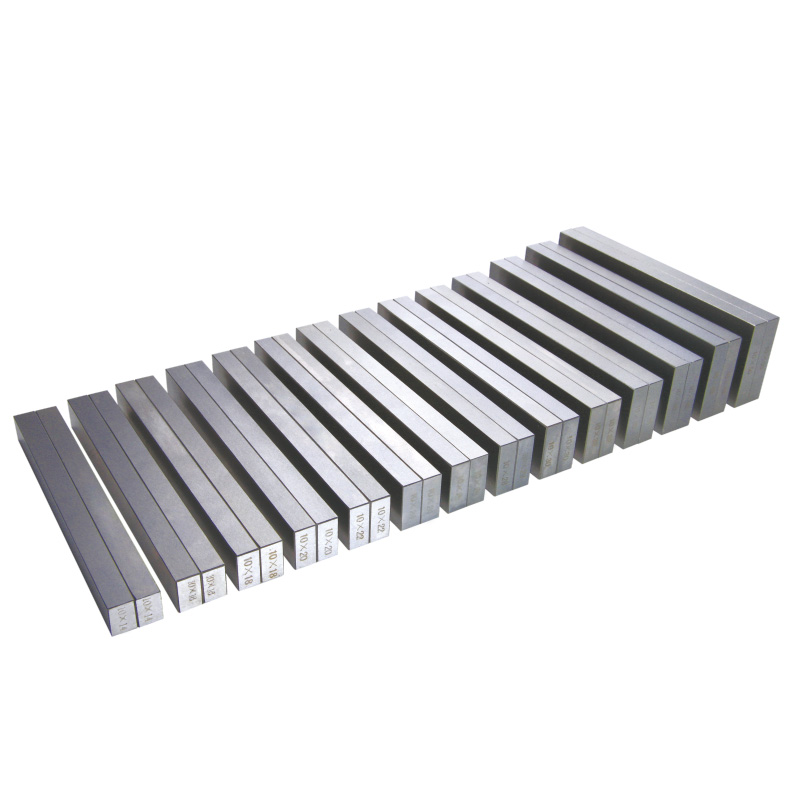

Parallel Sets
Code: 6533
Parallelism between top and bottom: 5µm
Height difference of a matched pair: 5µm
Made of alloy tool steel
Hardened to HRC55-60
| Code | Length | Thickness | Parallels per set |
|---|---|---|---|
| 6533-6 | 200mm | 9.5mm | 6 pairs |
| 6533-8 | 160mm | 8mm | 8 pairs |
| 6533-81 | 200mm | 8mm | 8 pairs |
| 6533-9 | 160mm | 4mm | 9 pairs |
| 6533-10 | 150mm | 3mm | 10 pairs |
| 6533-144 | 150mm | 10mm | 14 pairs |
