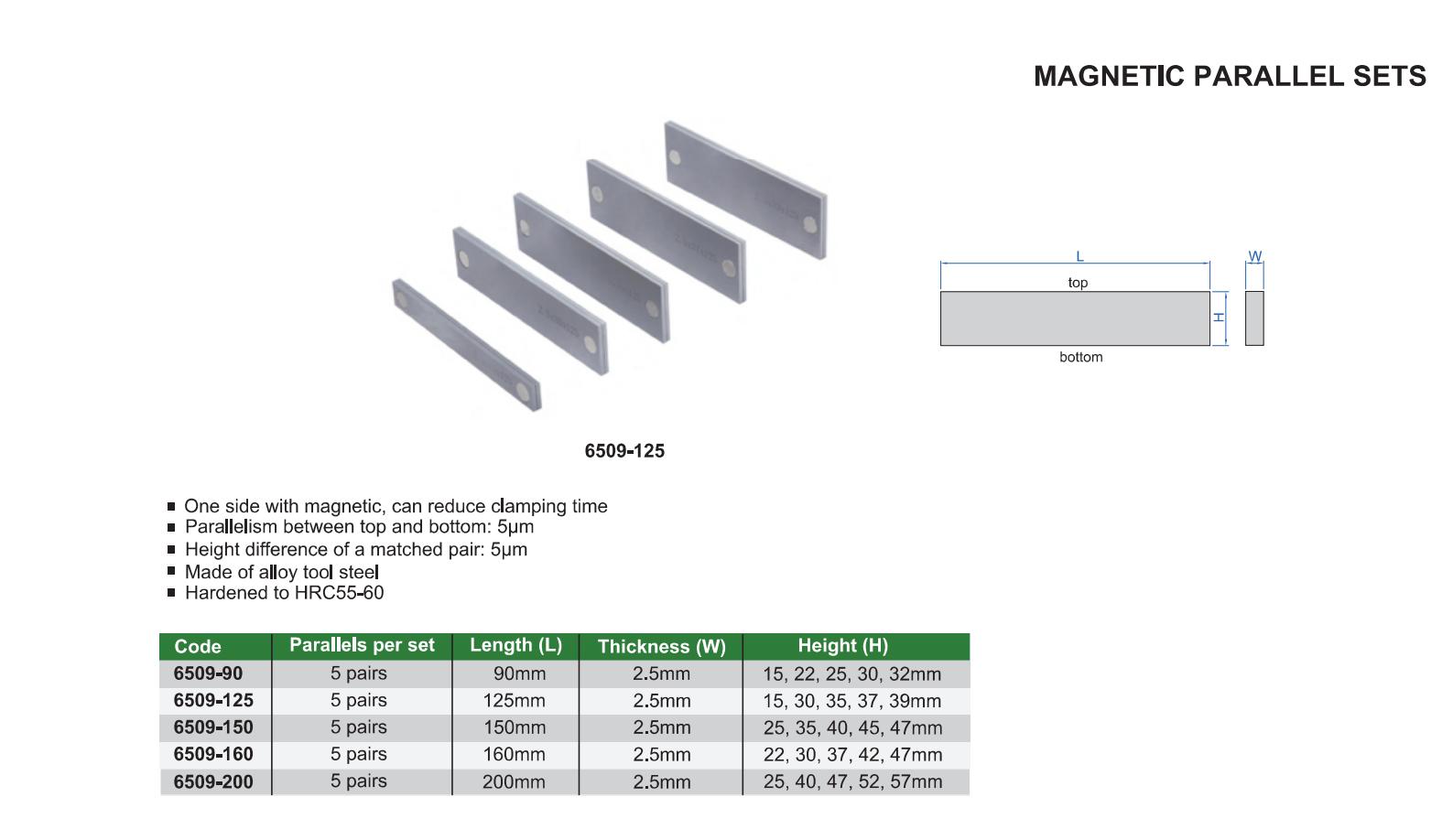

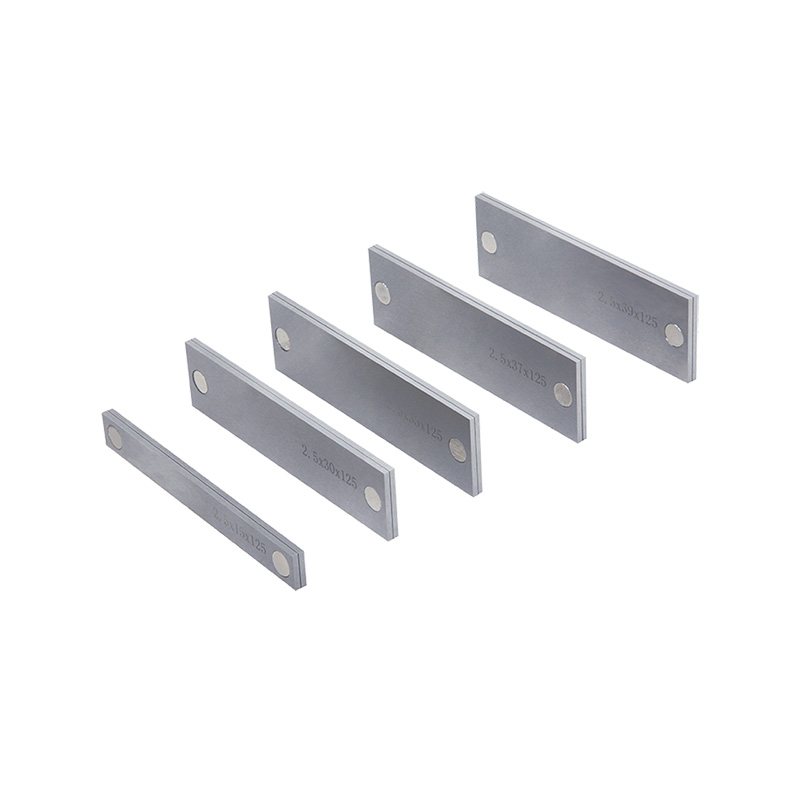

Magnetic Parallel Sets
Code: 6509
Parallelism between top and bottom: 5µm
Height difference of a matched pair: 5µm
Made of alloy tool steel
Hardened to HRC55-60
| Code | Length | Thickness | Parallels per set |
|---|---|---|---|
| 6509-90 | 90mm | 2.5mm | 5 pairs |
| 6509-125 | 125mm | 2.5mm | 5 pairs |
| 6509-150 | 150mm | 2.5mm | 5 pairs |
| 6509-160 | 160mm | 2.5mm | 5 pairs |
| 6509-200 | 200mm | 2.5mm | 5 pairs |
