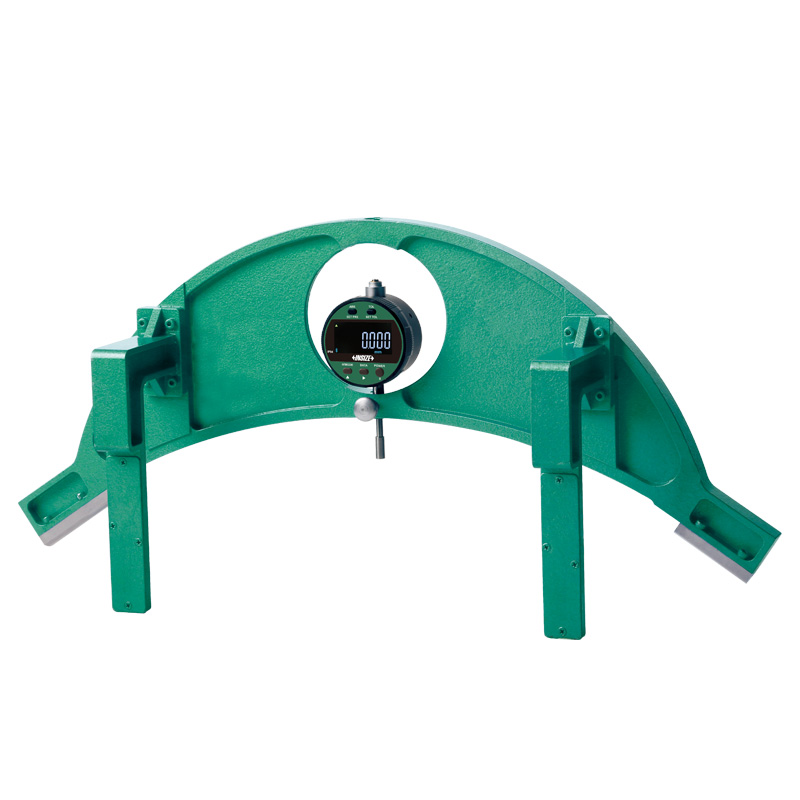

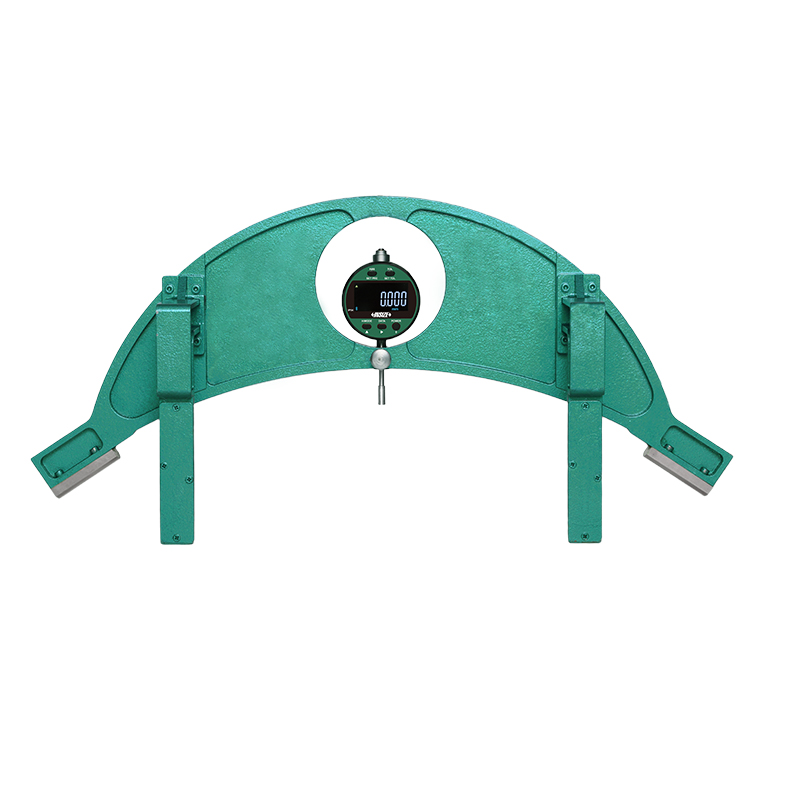

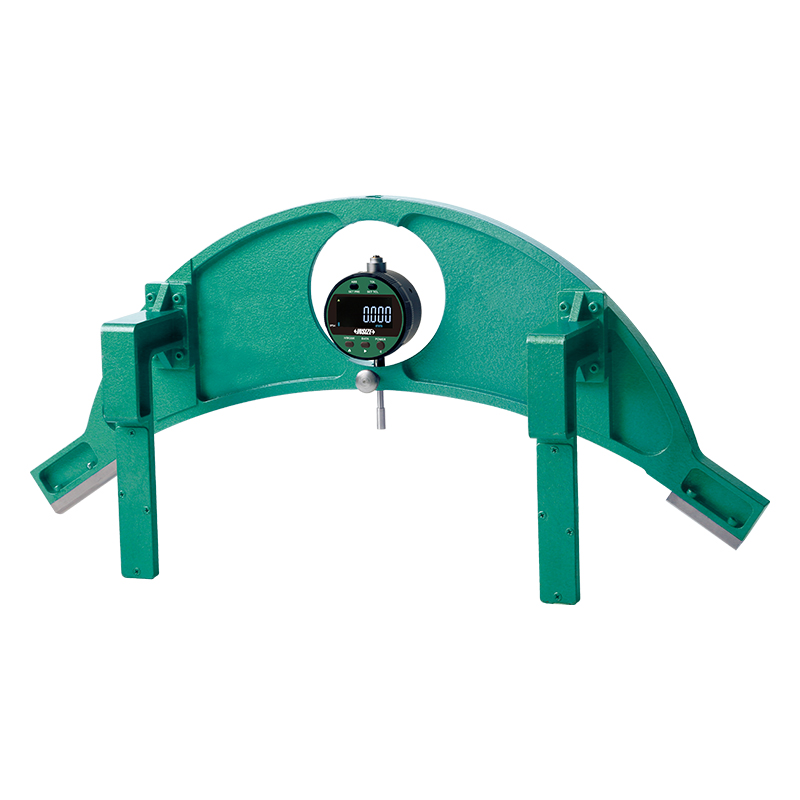

Wheel Diameter Gauges
Code: 4994
To measure the wheel diameters of railway vehicles and metro trains
Aluminum alloy ruler body, alloy steel measuring probe
Data transmission, rotatable screen, automatic power off
Button: on/off, zero, data preset, tolerance setting, data hold

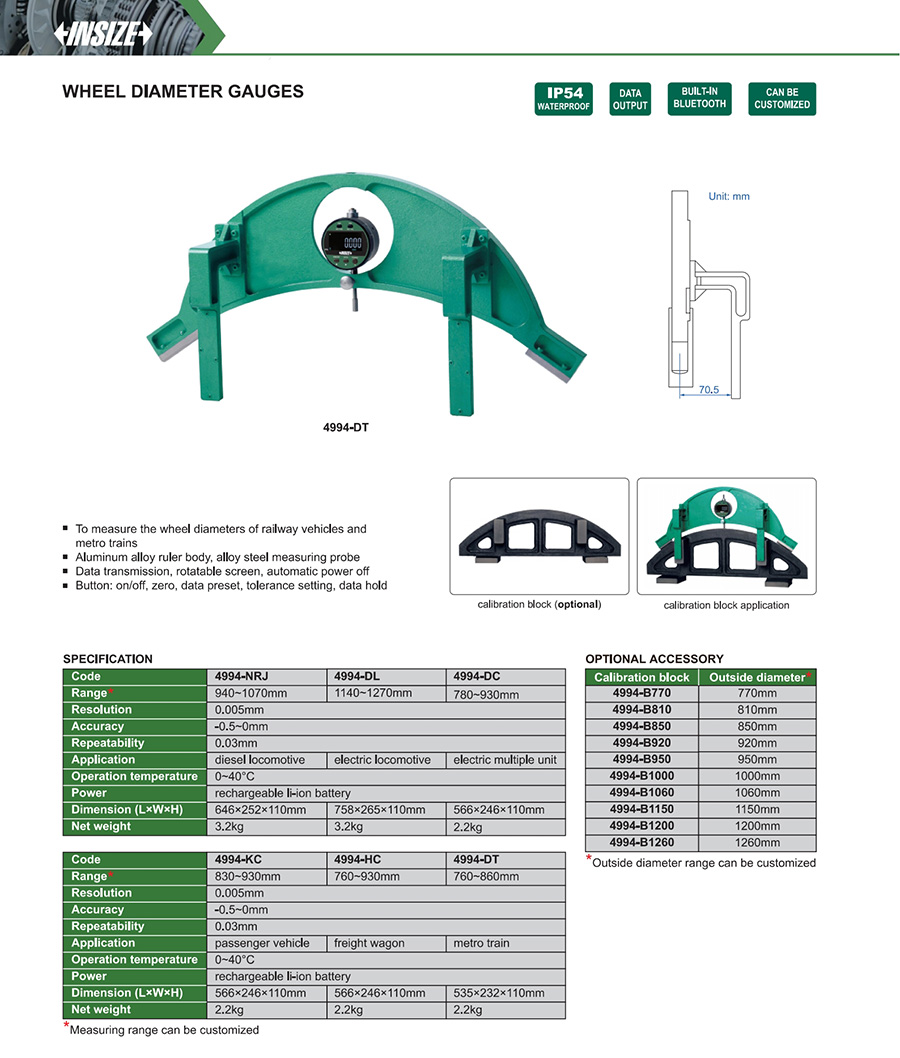

| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 4994-NRJ | 940~1070mm | -0.5~0mm | 0.03mm |
| 4994-DL | 1140~1270mm | -0.5~0mm | 0.03mm |
| 4994-DC | 780~930mm | -0.5~0mm | 0.03mm |
| 4994-KC | 830~930mm | -0.5~0mm | 0.03mm |
| 4994-HC | 760~930mm | -0.5~0mm | 0.03mm |
| 4994-DT | 760~860mm | -0.5~0mm | 0.03mm |
