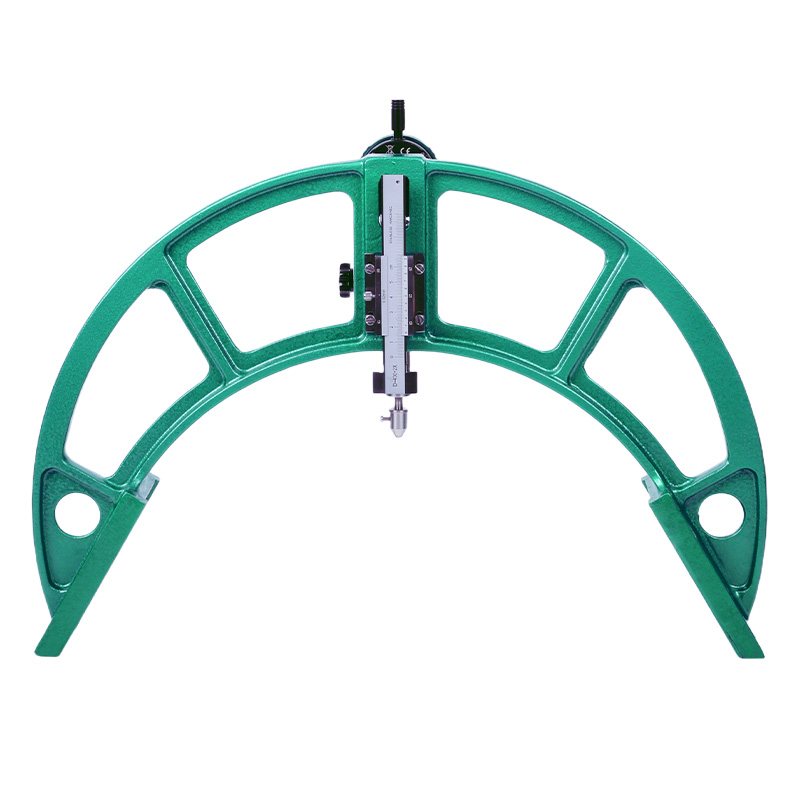

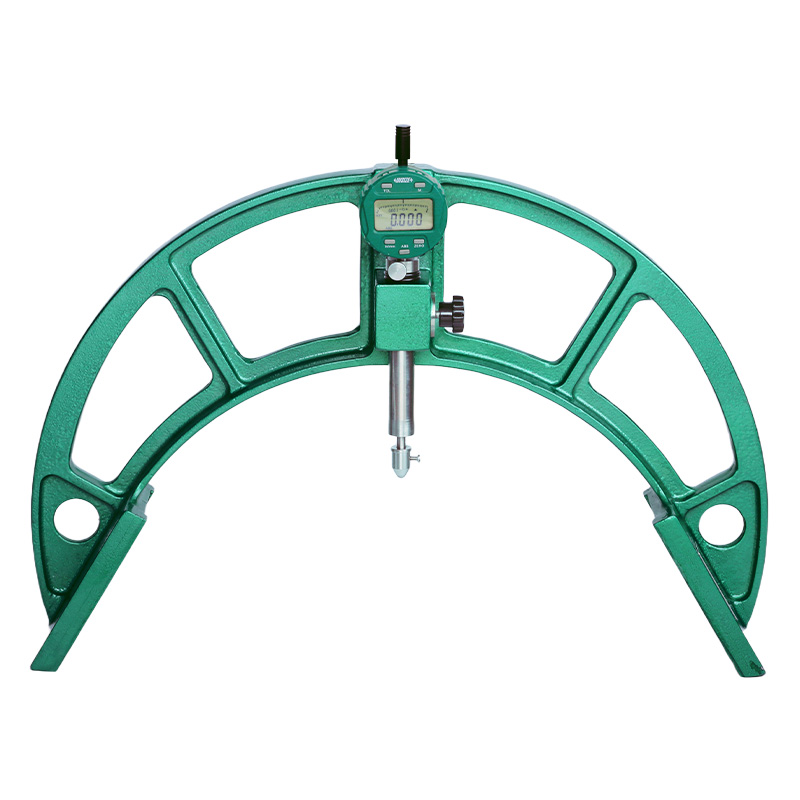

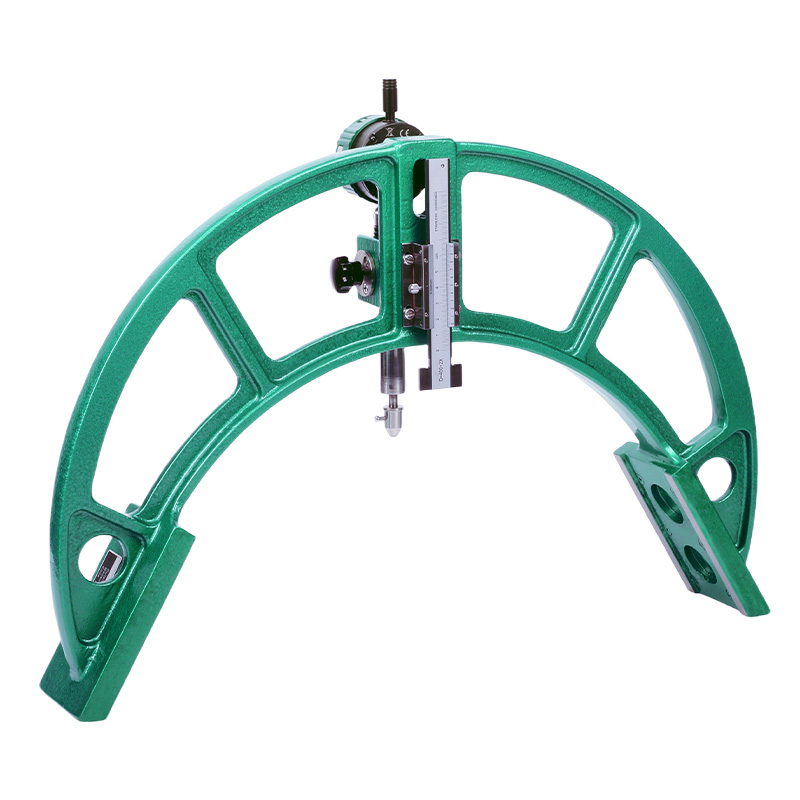

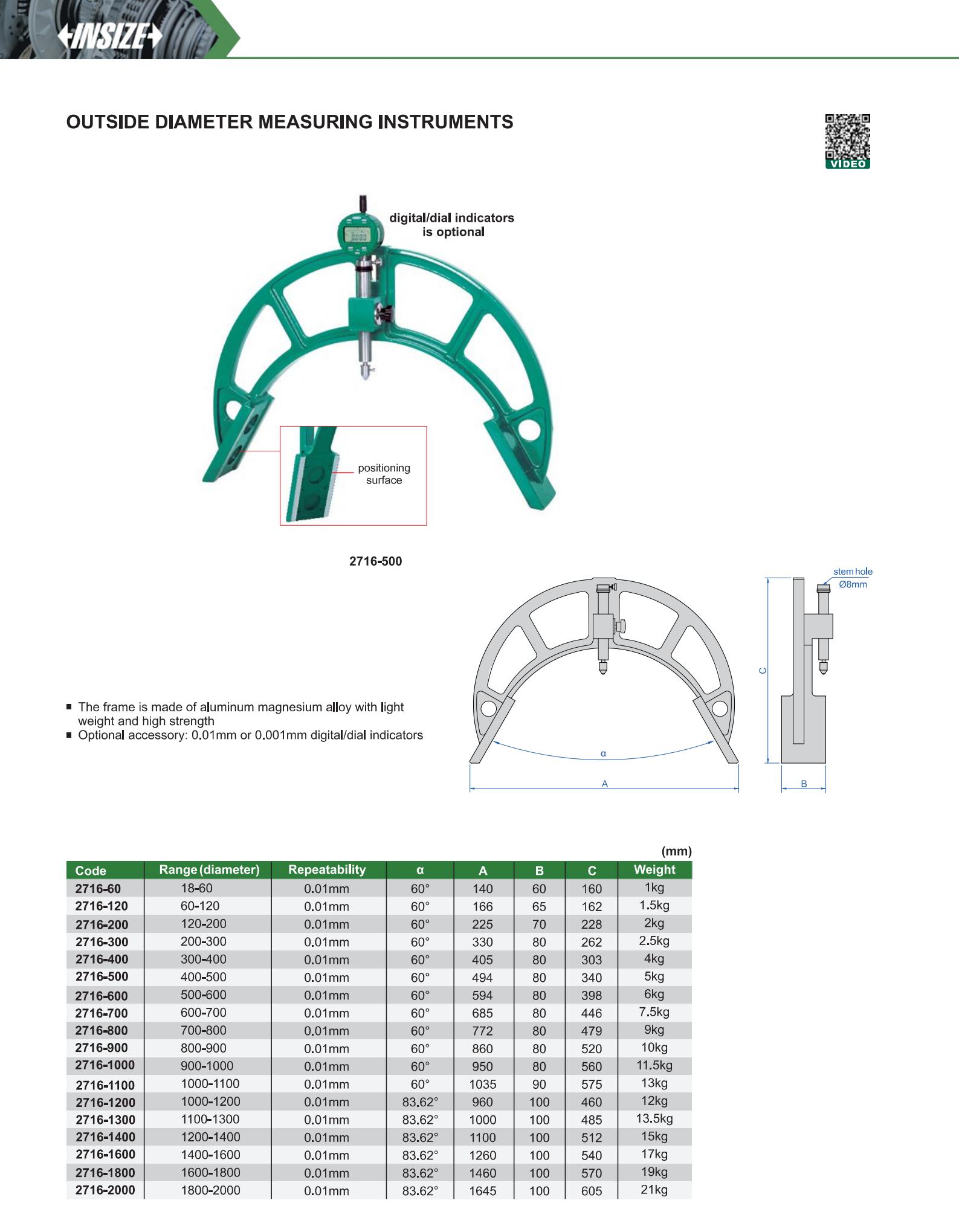

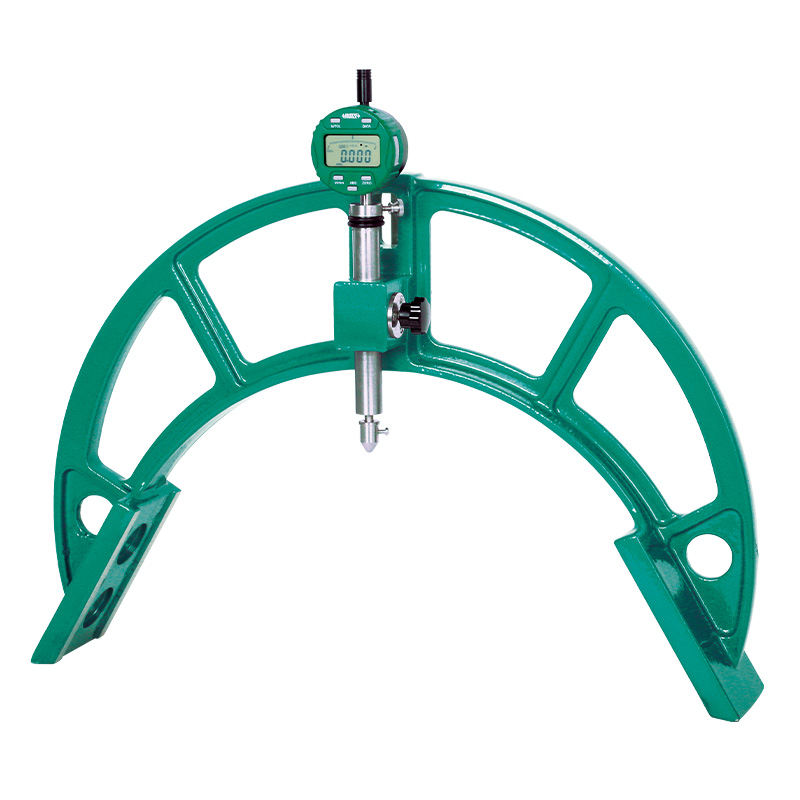

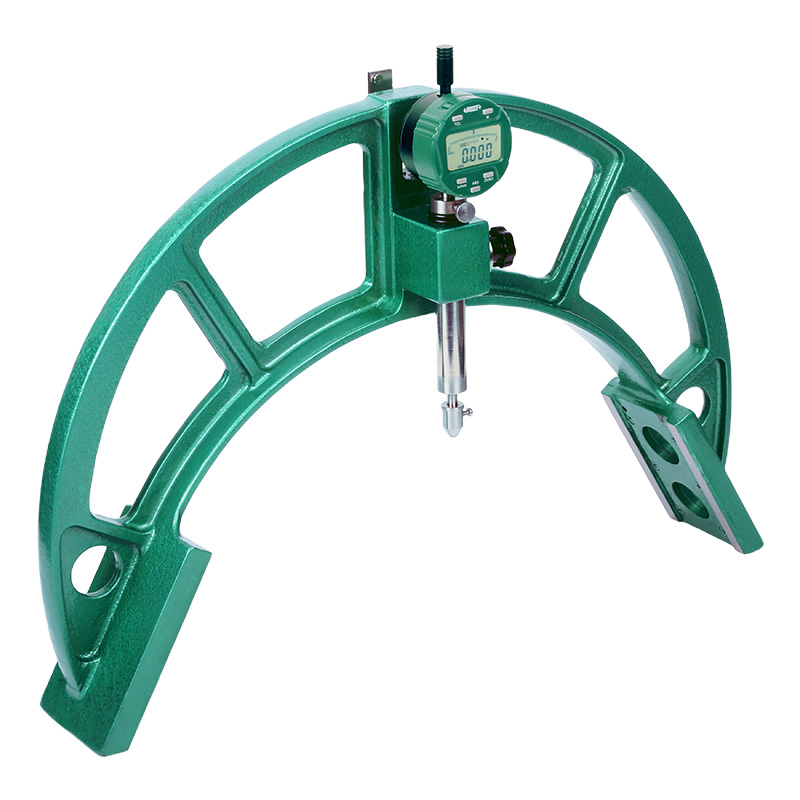

Outside Diameter Measuring Instruments
Code: 2716
The frame is made of aluminum magnesium alloy with light weight and high strength
Optional accessory: 0.01mm or 0.001mm digital/dial indicators
| Code | Range | Repeatability |
|---|---|---|
| 2716-60 | 18-60 | 0.01mm |
| 2716-120 | 60-120 | 0.01mm |
| 2716-200 | 120-200 | 0.01mm |
| 2716-300 | 200-300 | 0.01mm |
| 2716-400 | 300-400 | 0.01mm |
| 2716-500 | 400-500 | 0.01mm |
| 2716-600 | 500-600 | 0.01mm |
| 2716-700 | 600-700 | 0.01mm |
| 2716-800 | 700-800 | 0.01mm |
| 2716-900 | 800-900 | 0.01mm |
| 2716-1000 | 900-1000 | 0.01mm |
| 2716-1100 | 1000-1100 | 0.01mm |
| 2716-1200 | 1000-1200 | 0.01mm |
| 2716-1300 | 1100-1300 | 0.01mm |
| 2716-1400 | 1200-1400 | 0.01mm |
| 2716-1600 | 1400-1600 | 0.01mm |
| 2716-1800 | 1600-1800 | 0.01mm |
| 2716-2000 | 1800-2000 | 0.01mm |
View the complete
product specifications
