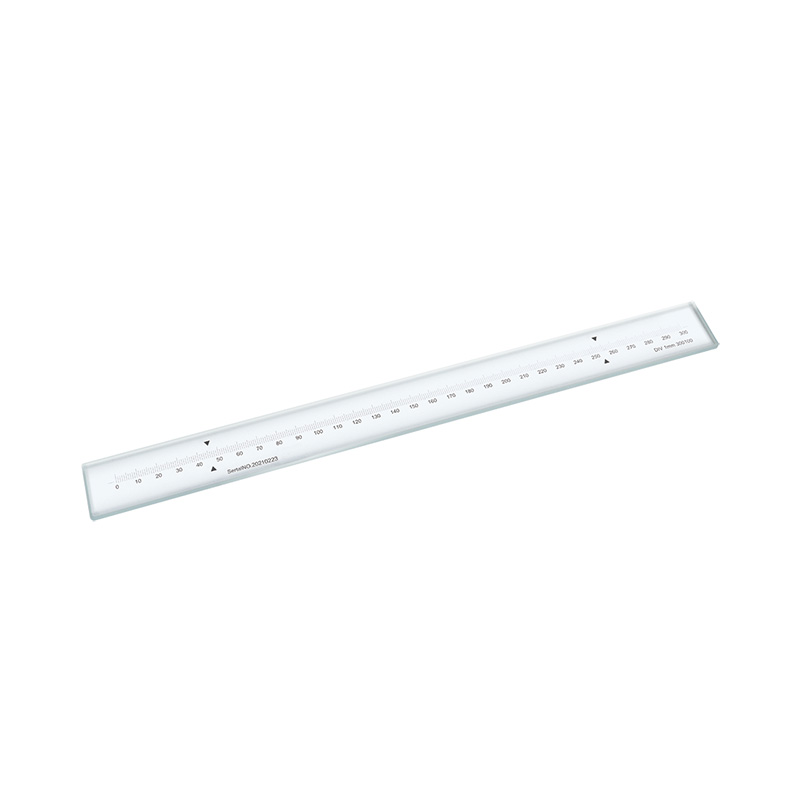

Standard Glass Scales
Code: ISD-CL
To calibrate optical measuring instruments, also can be used as optical positioning elements in precision machine tools

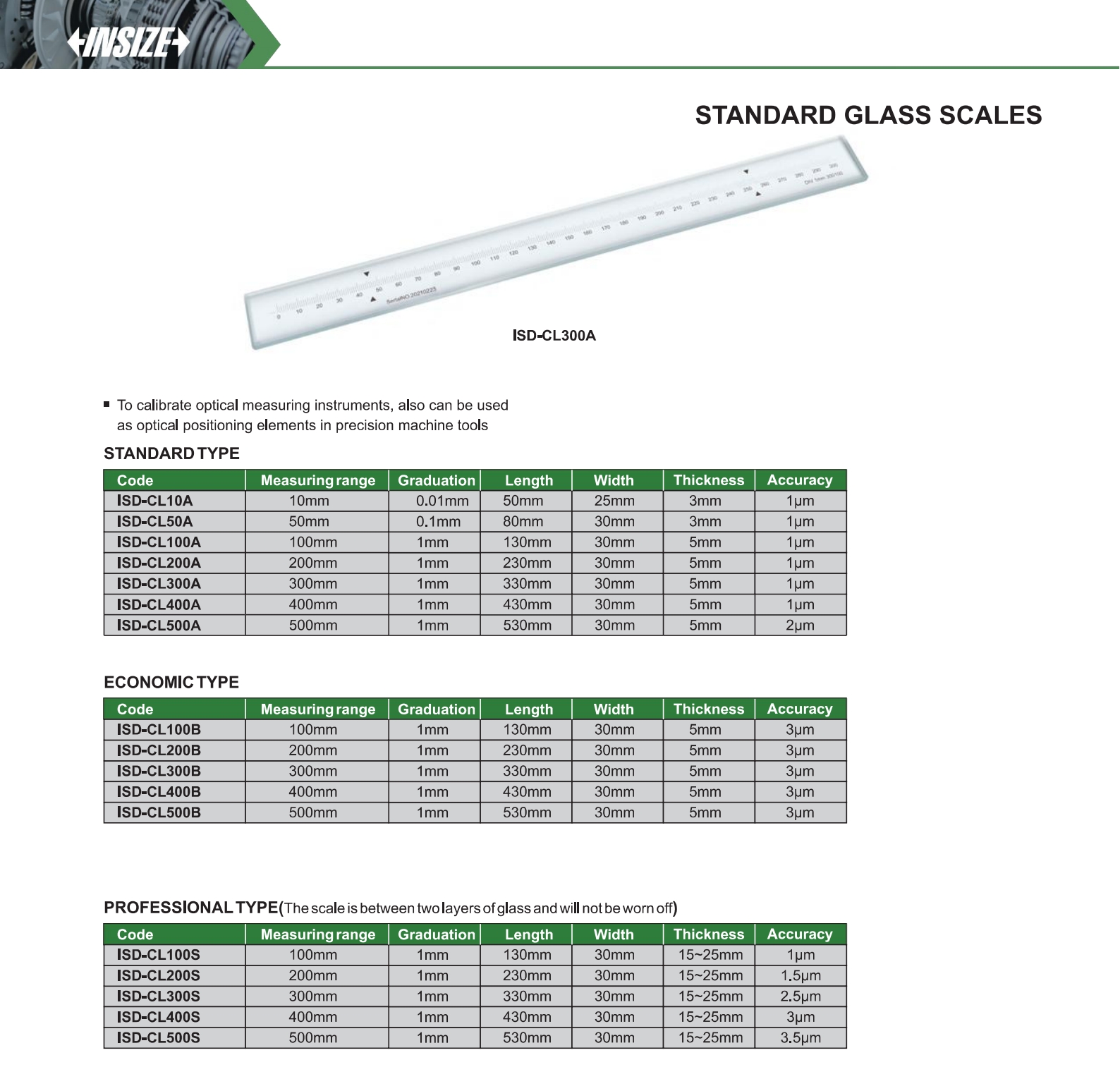

| Code | Range | Accuracy | Graduation | Length |
|---|---|---|---|---|
| ISD-CL10A | 10mm | 1μm | 0.01mm | 50mm |
| ISD-CL50A | 50mm | 1μm | 0.1mm | 80mm |
| ISD-CL100A | 100mm | 1μm | 1mm | 130mm |
| ISD-CL200A | 200mm | 1μm | 1mm | 230mm |
| ISD-CL300A | 300mm | 1μm | 1mm | 330mm |
| ISD-CL400A | 400mm | 1μm | 1mm | 430mm |
| ISD-CL500A | 500mm | 2μm | 1mm | 530mm |
| ISD-CL100B | 100mm | 3μm | 1mm | 130mm |
| ISD-CL200B | 200mm | 3μm | 1mm | 230mm |
| ISD-CL300B | 300mm | 3μm | 1mm | 330mm |
| ISD-CL400B | 400mm | 3μm | 1mm | 430mm |
| ISD-CL500B | 500mm | 3μm | 1mm | 530mm |
| ISD-CL100S | 100mm | 1μm | 1mm | 130mm |
| ISD-CL200S | 200mm | 1.5μm | 1mm | 230mm |
| ISD-CL300S | 300mm | 2.5μm | 1mm | 330mm |
| ISD-CL400S | 400mm | 3μm | 1mm | 430mm |
| ISD-CL500S | 500mm | 3.5μm | 1mm | 530mm |
