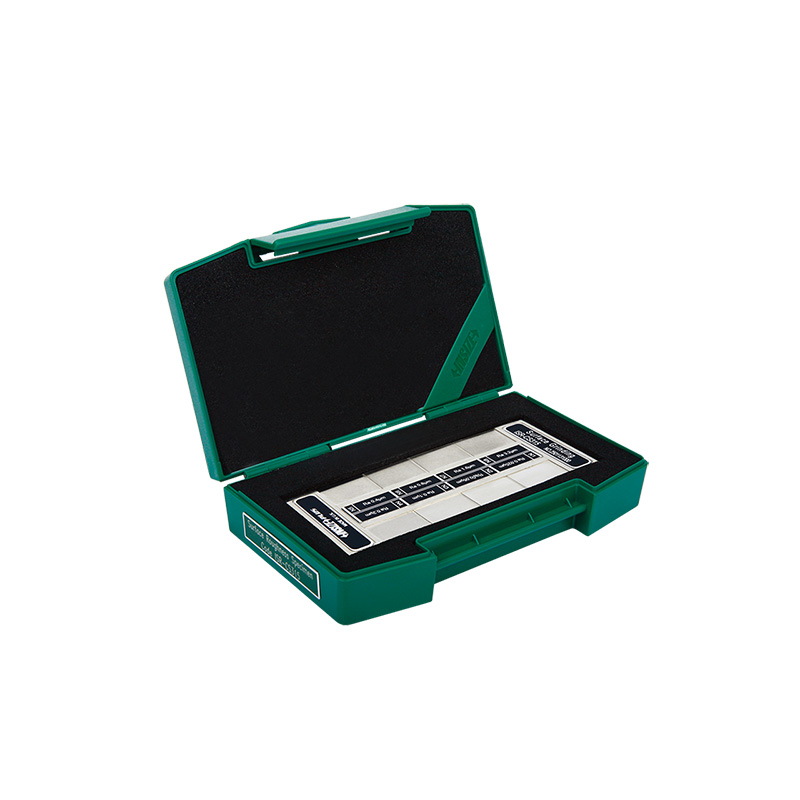

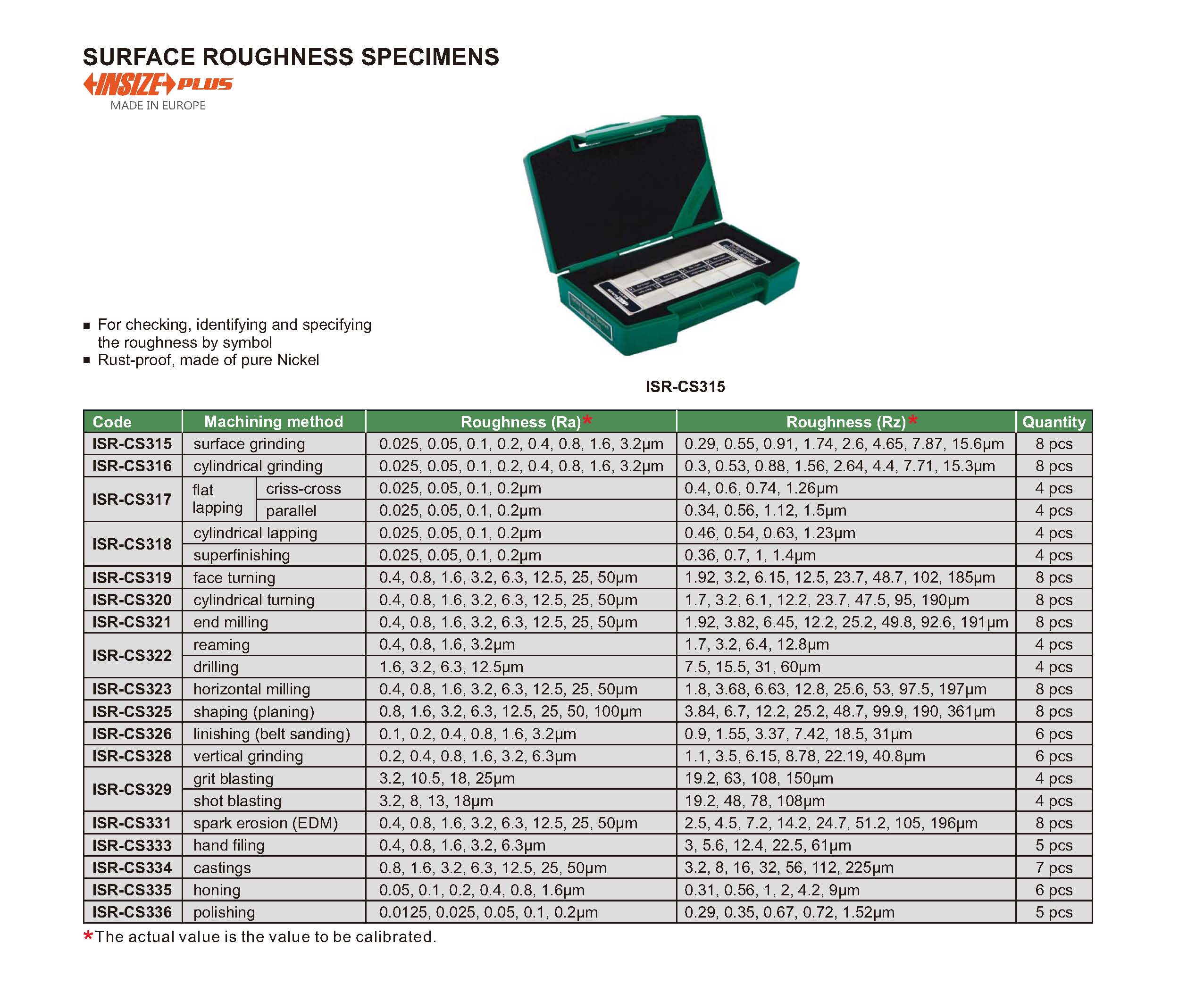

Surface Roughness Specimens
Code: ISR-CS Series
For checking, identifying and specifying the roughness by symbol
Rust-proof, made of pure Nicke
| Code | Machining method | Roughness (Ra) | Roughness (Rz) | Quantity |
|---|---|---|---|---|
| ISR-CS315 | surface grinding | 0.025, 0.05, 0.1, 0.2, 0.4, 0.8, 1.6, 3.2µm | 0.29, 0.55, 0.91, 1.74, 2.6, 4.65, 7.87, 15.6µm | 8 pcs |
| ISR-CS316 | cylindrical grinding | 0.025, 0.05, 0.1, 0.2, 0.4, 0.8, 1.6, 3.2µm | 0.3, 0.53, 0.88, 1.56, 2.64, 4.4, 7.71, 15.3µm | 8 pcs |
| ISR-CS317 | flat lapping criss-cross | 0.025, 0.05, 0.1, 0.2µm | 0.4, 0.6, 0.74, 1.26µm | 4 pcs |
| ISR-CS317 | flat lapping parallel | 0.025, 0.05, 0.1, 0.2µm | 0.34, 0.56, 1.12, 1.5µm | 4 pcs |
| ISR-CS318 | cylindrical lapping | 0.025, 0.05, 0.1, 0.2µm | 0.46, 0.54, 0.63, 1.23µm | 4 pcs |
| ISR-CS318 | superfinishing | 0.025, 0.05, 0.1, 0.2µm | 0.36, 0.7, 1, 1.4µm | 4 pcs |
| ISR-CS319 | face turning | 0.4, 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50µm | 1.92, 3.2, 6.15, 12.5, 23.7, 48.7, 102, 185µm | 8 pcs |
| ISR-CS320 | cylindrical turning | 0.4, 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50µm | 1.7, 3.2, 6.1, 12.2, 23.7, 47.5, 95, 190µm | 8 pcs |
| ISR-CS321 | end milling | 0.4, 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50µm | 1.92, 3.82, 6.45, 12.2, 25.2, 49.8, 92.6, 191µm | 8 pcs |
| ISR-CS322 | reaming | 0.4, 0.8, 1.6, 3.2µm | 1.7, 3.2, 6.4, 12.8µm | 4 pcs |
| ISR-CS322 | drilling | 1.6, 3.2, 6.3, 12.5µm | 7.5, 15.5, 31, 60µm | 4 pcs |
| ISR-CS323 | horizontal milling | 0.4, 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50µm | 1.8, 3.68, 6.63, 12.8, 25.6, 53, 97.5, 197µm | 8 pcs |
| ISR-CS325 | shaping (planing) | 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50, 100µm | 3.84, 6.7, 12.2, 25.2, 48.7, 99.9, 190, 361µm | 8 pcs |
| ISR-CS326 | linishing (belt sanding) | 0.1, 0.2, 0.4, 0.8, 1.6, 3.2µm | 0.9, 1.55, 3.37, 7.42, 18.5, 31µm | 6 pcs |
| ISR-CS328 | vertical grinding | 0.2, 0.4, 0.8, 1.6, 3.2, 6.3µm | 1.1, 3.5, 6.15, 8.78, 22.19, 40.8µm | 6 pcs |
| ISR-CS329 | grit blasting | 3.2, 10.5, 18, 25µm | 19.2, 63, 108, 150µm | 4 pcs |
| ISR-CS329 | shot blasting | 3.2, 8, 13, 18µm | 19.2, 48, 78, 108µm | 4 pcs |
| ISR-CS331 | spark erosion (EDM) | 0.4, 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50µm | 2.5, 4.5, 7.2, 14.2, 24.7, 51.2, 105, 196µm | 8 pcs |
| ISR-CS333 | hand filing | 0.4, 0.8, 1.6, 3.2, 6.3µm | 3, 5.6, 12.4, 22.5, 61µm | 5 pcs |
| ISR-CS334 | castings | 0.8, 1.6, 3.2, 6.3, 12.5, 25, 50µm | 3.2, 8, 16, 32, 56, 112, 225µm | 7 pcs |
| ISR-CS335 | honing | 0.05, 0.1, 0.2, 0.4, 0.8, 1.6µm | 0.31, 0.56, 1, 2, 4.2, 9µm | 6 pcs |
| ISR-CS336 | polishing | 0.0125, 0.025, 0.05, 0.1, 0.2µm | 0.29, 0.35, 0.67, 0.72, 1.52µm | 5 pcs |
