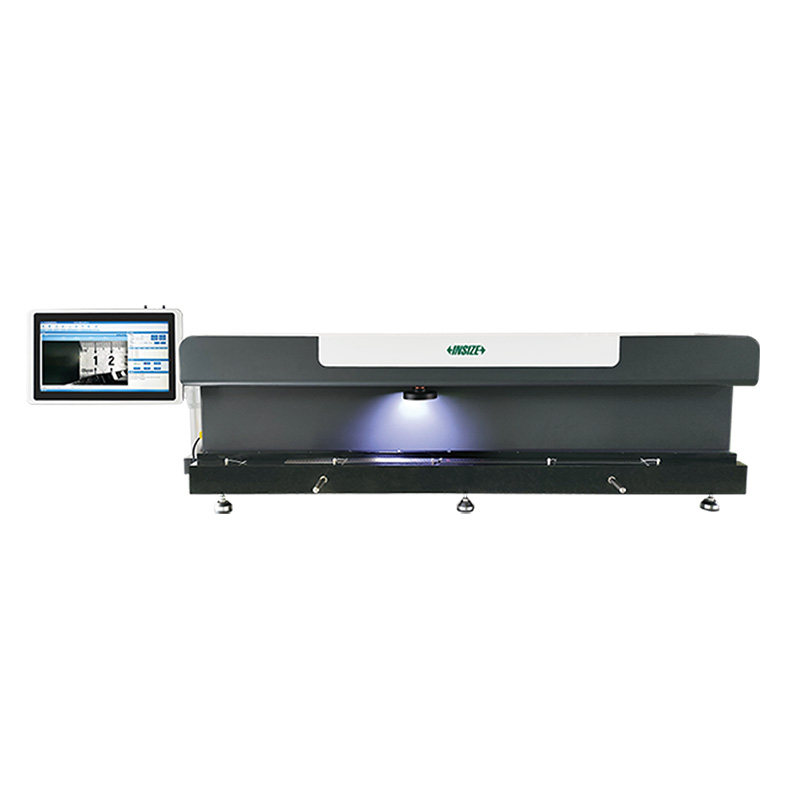

Automatic Steel Ruler Calibration System
Code: ISC-R1001
Adoption high-precision optical encoder, precise motion control technology, machine vision and other advanced technologies to achieve fully automatic, high-precision measurement
Test points can be customised according to customers
Automatically analyzes line width, line pattern, end edge distance, etc.
| Code | Range | Accuracy | Resolution | Dimension (L×W×H) | Loading method | Verification |
|---|---|---|---|---|---|---|
| ISC-R1001 | (0~1000)mm | ±0.01mm | 0.1μm | 1540×360×430mm | automatic | 2s/point |

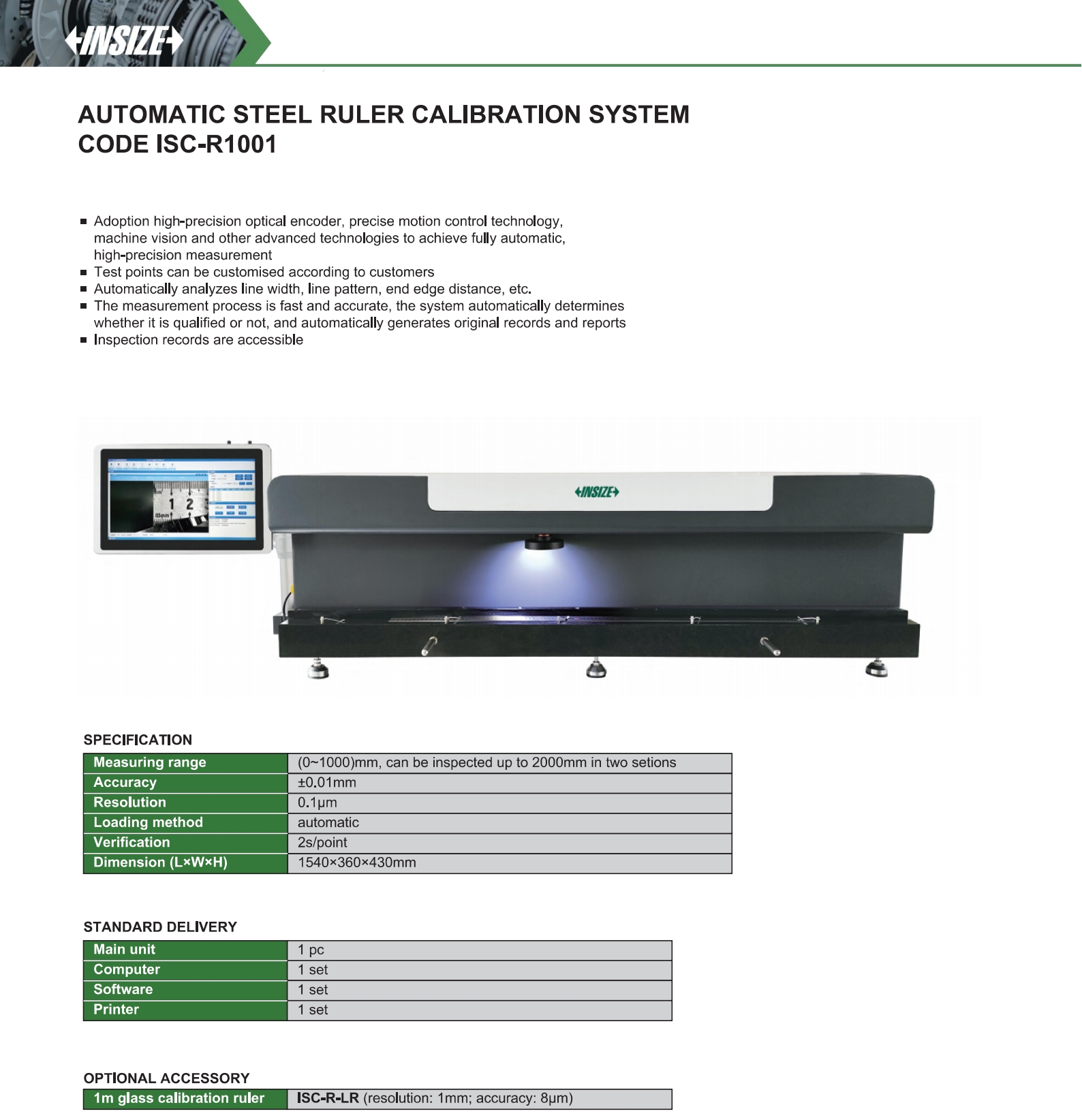

View the complete
product specifications
