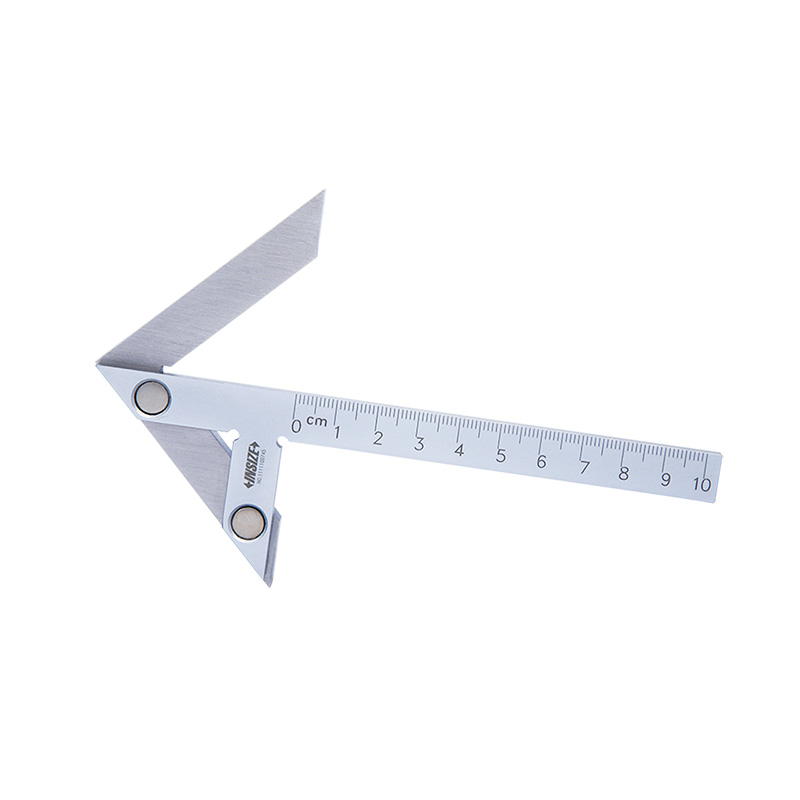

Center Marking Gauges
Code: 7205
Marking the center of round plates and shafts
Made of stainless steel
Satin chrome plated

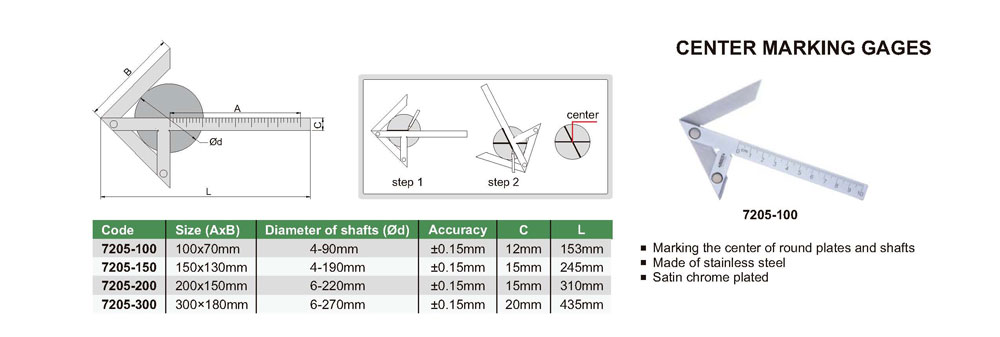

| Code | Accuracy | Diameter of shafts | Size |
|---|---|---|---|
| 7205-100 | ±0.15mm | 4-90mm | 100x70mm |
| 7205-150 | ±0.15mm | 4-190mm | 150x130mm |
| 7205-200 | ±0.15mm | 6-220mm | 200x150mm |
| 7205-300 | ±0.15mm | 6-270mm | 300×180mm |
View the complete
product specifications
