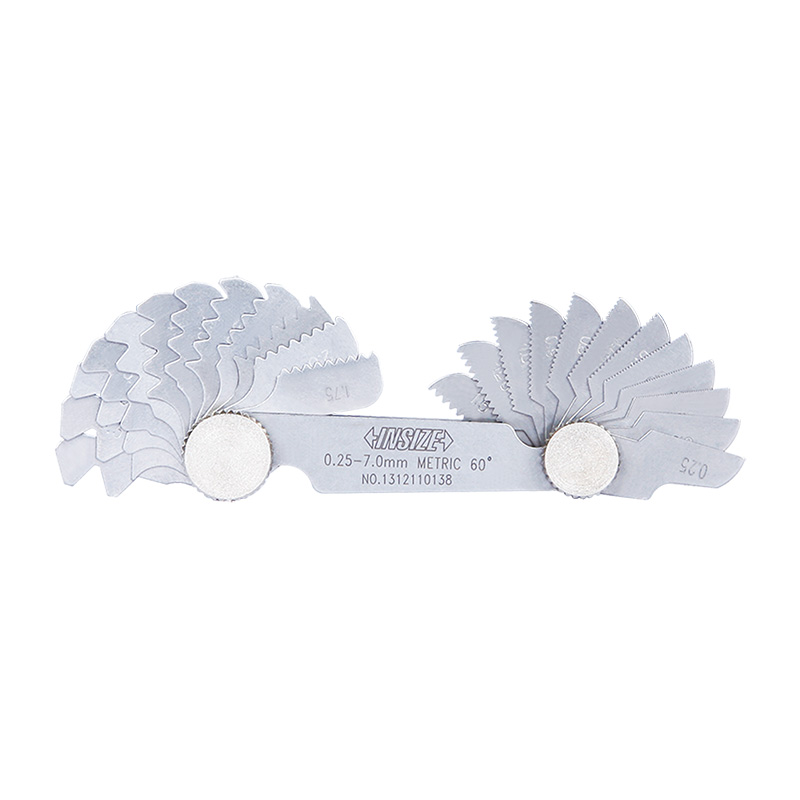

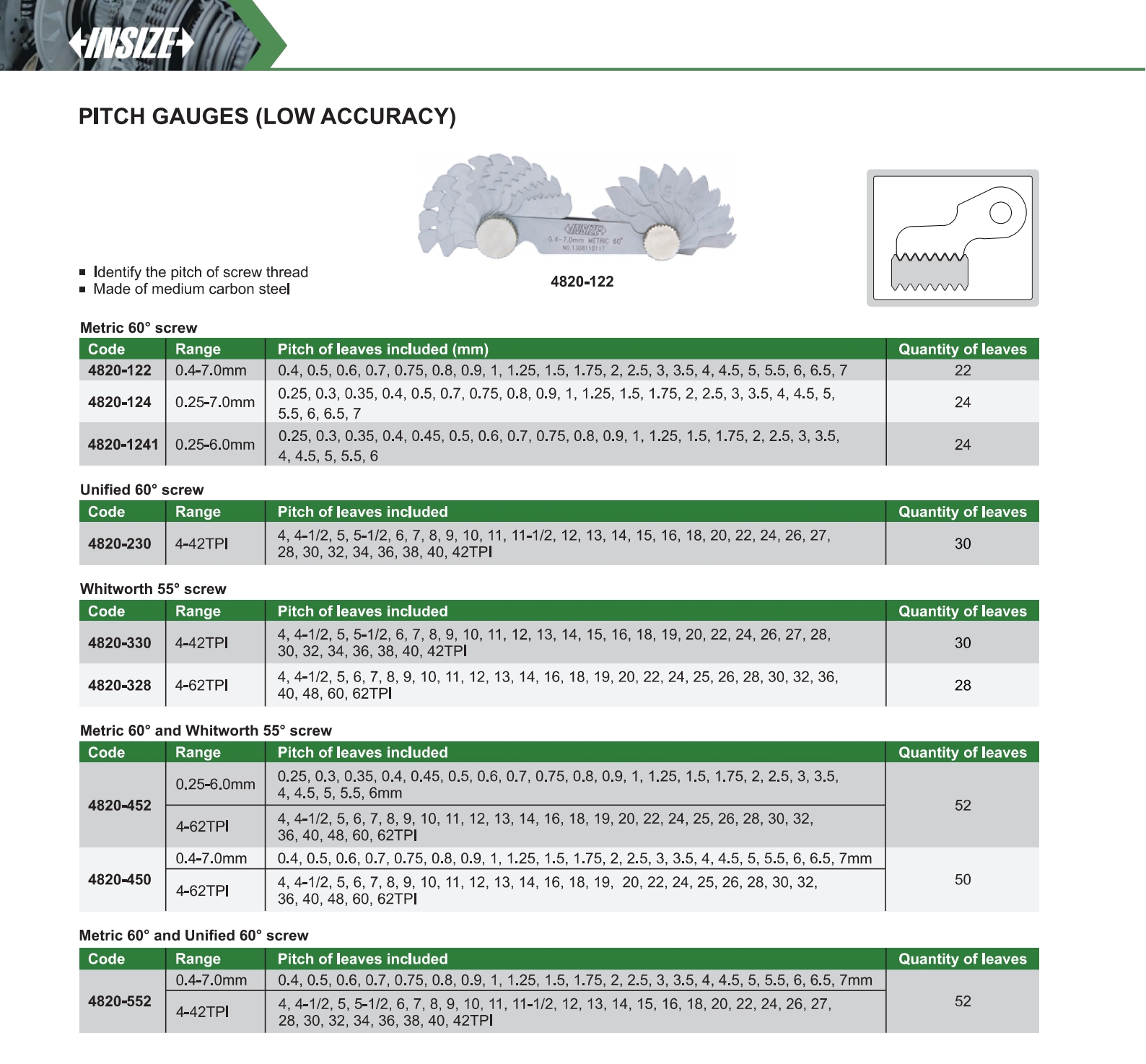

Pitch Gauges (Low Accuracy)
Code: 4820
Identify the pitch of screw thread
Made of medium carbon steel
| Code | Range | Quantity |
|---|---|---|
| 4820-122 | 0.4-7.0mm | 22 |
| 4820-124 | 0.25-7.0mm | 24 |
| 4820-1241 | 0.25-6.0mm | 24 |
| 4820-230 | 4-42TPI | 30 |
| 4820-330 | 4-42TPI | 30 |
| 4820-328 | 4-62TPI | 28 |
| 4820-452 | 0.25-6.0mm/4-62TPI | 52 |
| 4820-450 | 0.4-7.0mm/4-62TPI | 50 |
| 4820-552 | 0.4-7.0mm/4-42TPI | 52 |
