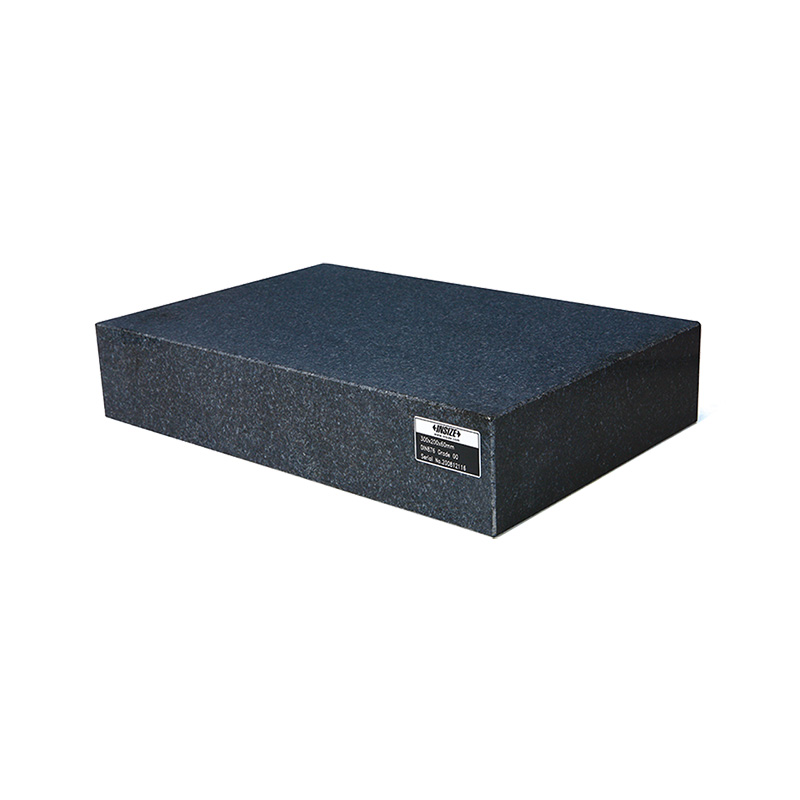

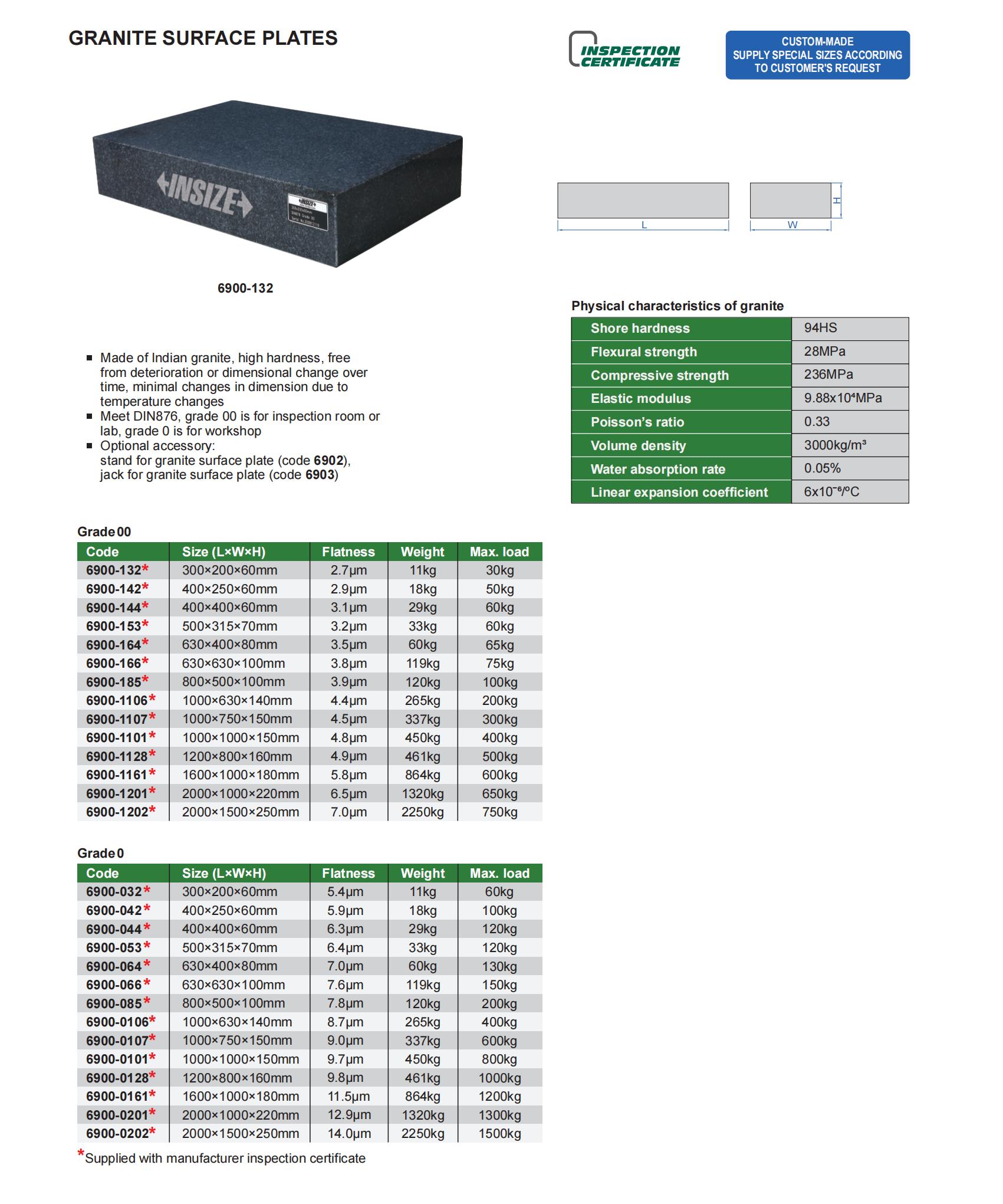

Granite Surface Plates
Code: 6900
Made of Indian granite, high hardness, free from deterioration or dimensional change over time, minimal changes in dimension due to temperature changes
Meet DIN876, grade 00 is for inspection room or lab, grade 0 is for workshop
| Code | Weight | Size (L×W×H) | Flatness | Max. load |
|---|---|---|---|---|
| 6900-132 | 11kg | 300×200×60mm | 2.7µm | 30kg |
| 6900-142 | 18kg | 400×250×60mm | 2.9µm | 50kg |
| 6900-144 | 29kg | 400×400×60mm | 3.1µm | 60kg |
| 6900-153 | 33kg | 500×315×70mm | 3.2µm | 60kg |
| 6900-164 | 60kg | 630×400×80mm | 3.5µm | 65kg |
| 6900-166 | 119kg | 630×630×100mm | 3.8µm | 75kg |
| 6900-185 | 120kg | 800×500×100mm | 3.9µm | 100kg |
| 6900-1106 | 265kg | 1000×630×140mm | 4.4µm | 200kg |
| 6900-1107 | 337kg | 1000×750×150mm | 4.5µm | 300kg |
| 6900-1101 | 450kg | 1000×1000×150mm | 4.8µm | 400kg |
| 6900-1128 | 461kg | 1200×800×160mm | 4.9µm | 500kg |
| 6900-1161 | 864kg | 1600×1000×180mm | 5.8µm | 600kg |
| 6900-1201 | 1320kg | 2000×1000×220mm | 6.5µm | 650kg |
| 6900-1202 | 2250kg | 2000×1500×250mm | 7.0µm | 750kg |
| 6900-032 | 11kg | 300×200×60mm | 5.4µm | 60kg |
| 6900-042 | 18kg | 400×250×60mm | 5.9µm | 100kg |
| 6900-044 | 29kg | 400×400×60mm | 6.3µm | 120kg |
| 6900-053 | 33kg | 500×315×70mm | 6.4µm | 120kg |
| 6900-064 | 60kg | 630×400×80mm | 7.0µm | 130kg |
| 6900-066 | 119kg | 630×630×100mm | 7.6µm | 150kg |
| 6900-085 | 120kg | 800×500×100mm | 7.8µm | 200kg |
| 6900-0106 | 265kg | 1000×630×140mm | 8.7µm | 400kg |
| 6900-0107 | 337kg | 1000×750×150mm | 9.0µm | 600kg |
| 6900-0101 | 450kg | 1000×1000×150mm | 9.7µm | 800kg |
| 6900-0128 | 461kg | 1200×800×160mm | 9.8µm | 1000kg |
| 6900-0161 | 864kg | 1600×1000×180mm | 11.5µm | 1200kg |
| 6900-0201 | 1320kg | 2000×1000×220mm | 12.9µm | 1300kg |
| 6900-0202 | 2250kg | 2000×1500×250mm | 14.0µm | 1500kg |
