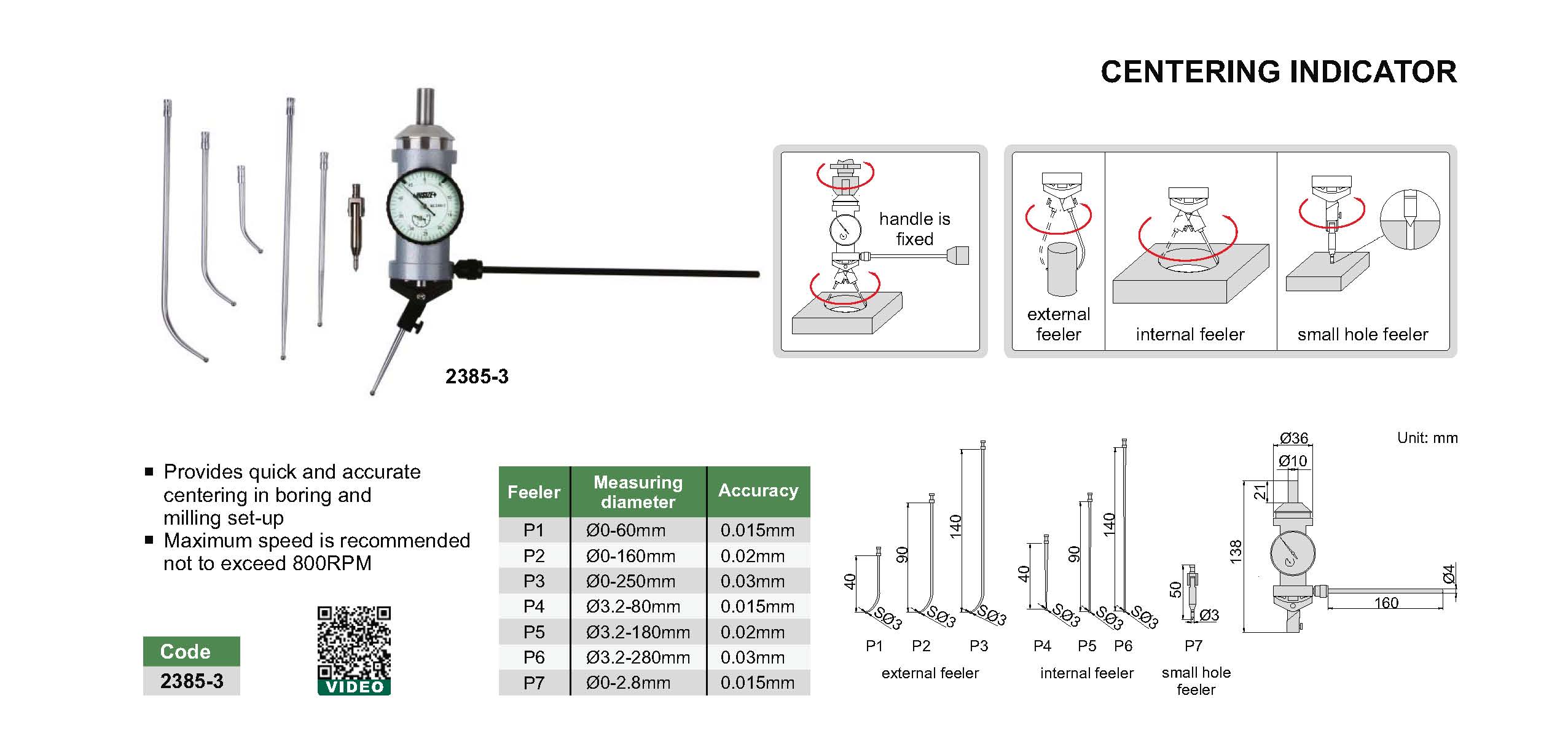

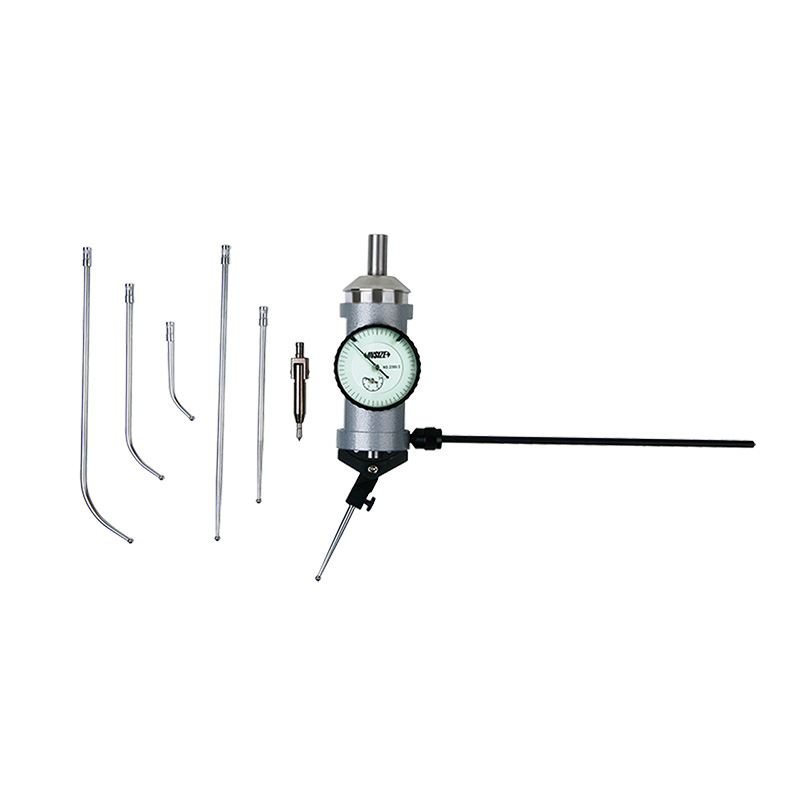

Centering Indicator
Code: 2385-3
Provides quick and accurate centering in boring and milling set-up
Maximum speed is recommended not to exceed 800rpm
| Code | Accuracy | Diameter range | Feeler |
|---|---|---|---|
| 2385-3 | 0.015mm | Ø0-60mm | P1 |
| 2385-3 | 0.02mm | Ø0-160mm | P2 |
| 2385-3 | 0.03mm | Ø0-250mm | P3 |
| 2385-3 | 0.015mm | Ø3.2-80mm | P4 |
| 2385-3 | 0.02mm | Ø3.2-180mm | P5 |
| 2385-3 | 0.03mm | Ø3.2-280mm | P6 |
| 2385-3 | 0.015mm | Ø0-2.8mm | P7 |
