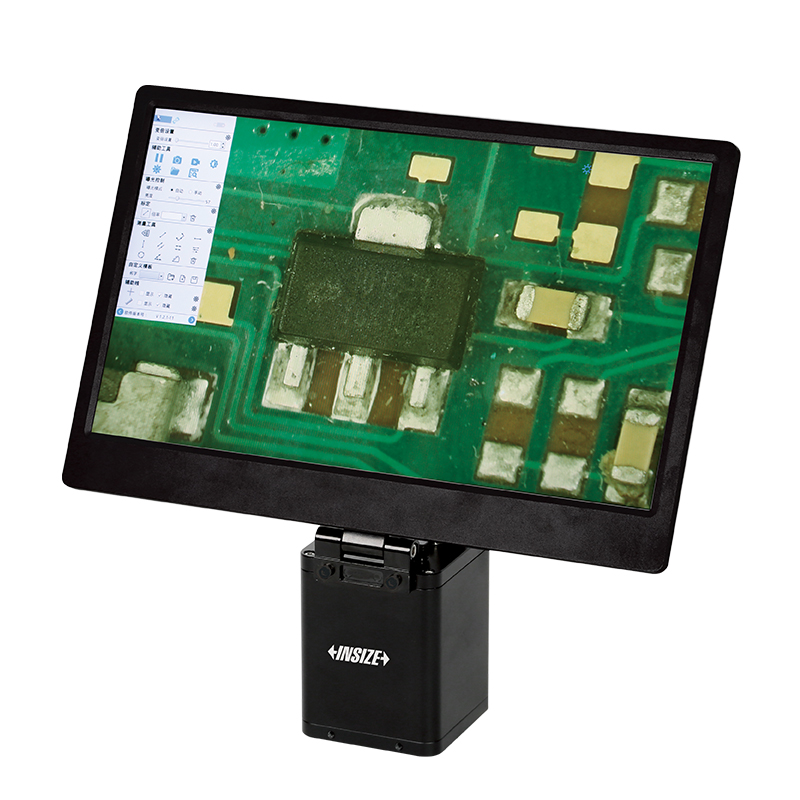

Integrated Camera For Microscope
Code: ISM-AC90
The camera and display screen are integrated together, facilitating installation
Built-in software supports photo taking, video recording, and measurement
Automatic exposure, white balance, brightness, contrast ratio, saturation are adjustable
Image processing features: zoom in/out, flip, mirror, and so on
Support automatic edge finding and save graphics function automatic
Connect to computer for video image transmission
The camera and display are connected via hinges with high reliability
| Code | Sensor type | Resolution | Pixel | Frame rate |
|---|---|---|---|---|
| ISM-AC90 | 1/2'' CMOS | 1920×1080 | 2M | 60fps@1920×1080 (HDMI), 60fps@1920×1080 (USB), 60fps@1920×1080 (LAN) |
