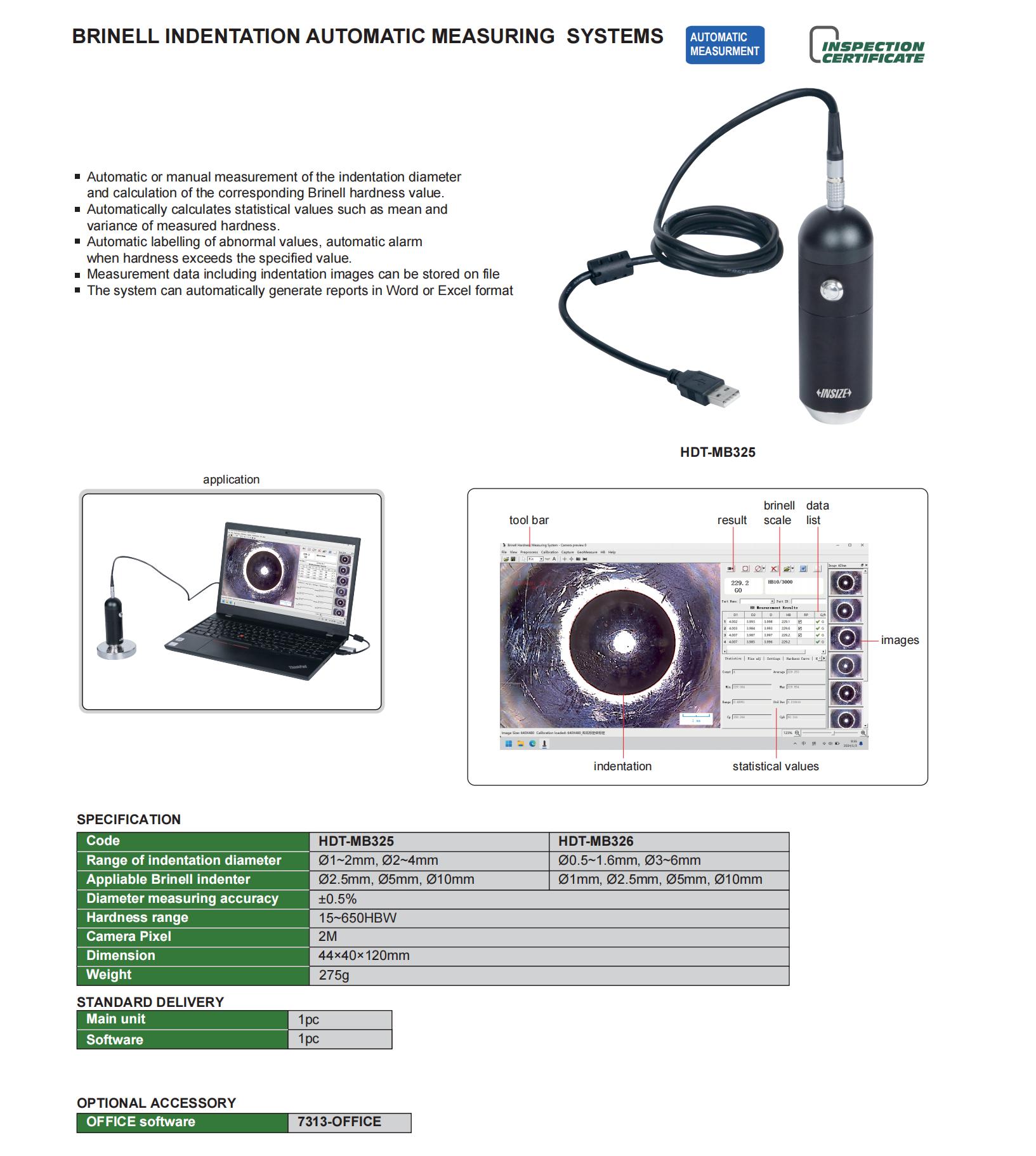

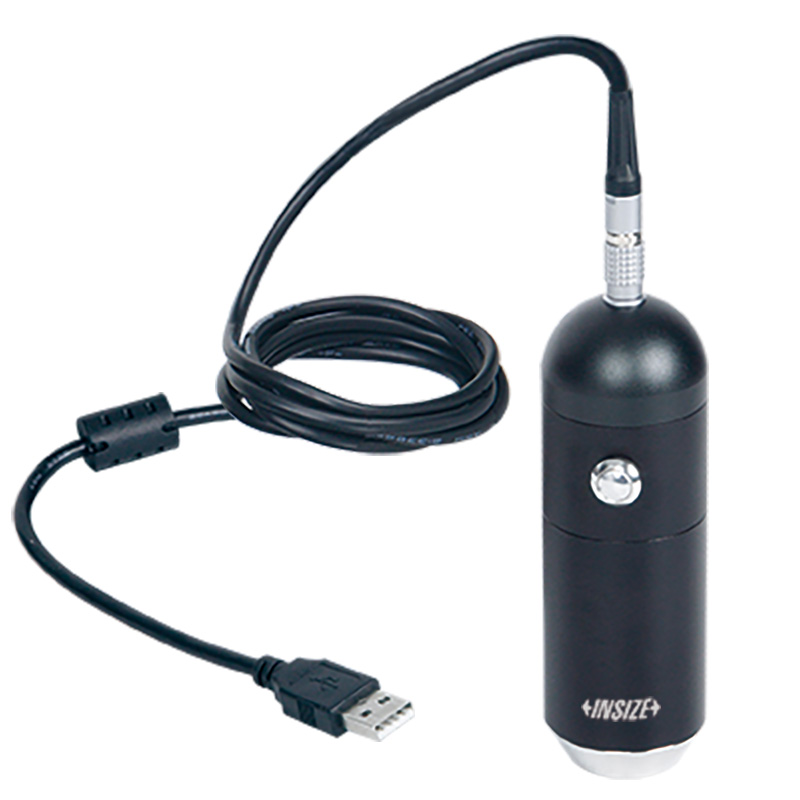

Brinell Indentation Automatic Measuring Systems
Code: HDT-MB325/MB326
Automatic or manual measurement of the indentation diameter and calculation of the corresponding Brinell hardness value
Automatically calculates statistical values such as mean and variance of measured hardness
Automatic labeling of abnormal values, automatic alarm when hardness exceeds the specified value
Measurement data including indentation images can be stored on file
The system can automatically generate reports in Word or Excel format
| Code | Range | Range of indentation diameter | Diameter measuring accuracy |
|---|---|---|---|
| HDT-MB325 | 15~650HBW | Ø1~2mm， Ø2~4mm | ±0.5% |
| HDT-MB326 | 15~650HBW | Ø0.5~1.6mm， Ø3~6mm | ±0.5% |
