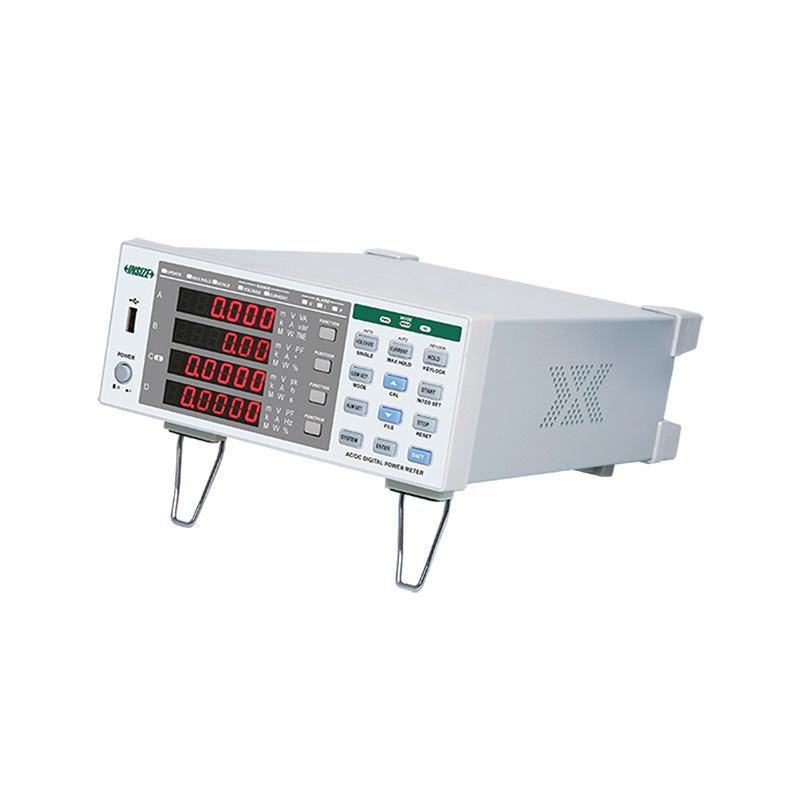

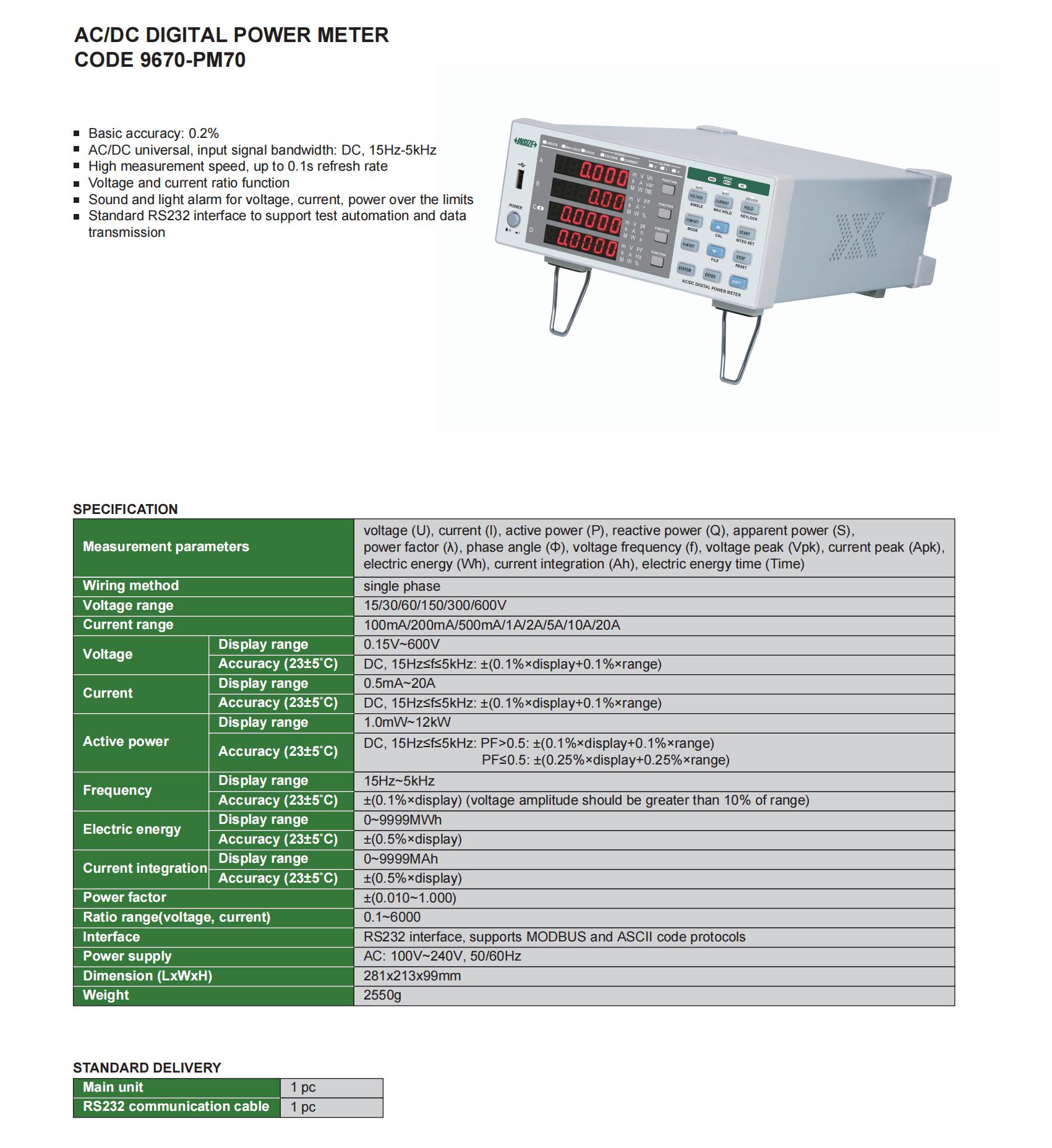

AC/DC Digital Power Meter
Code: 9670-PM70
Basic accuracy: 0.2%
AC/DC universal, input signal bandwidth: DC, 15Hz-5kHz
High measurement speed, up to 0.1s refresh rate
Voltage and current ratio function
Sound and light alarm for voltage, current, power over the limits
Standard RS232 interface to support test automation and data transmission
| Code | Wiring method | Voltage range | Current range |
|---|---|---|---|
| 9670-PM70 | single phase | 15/30/60/150/300/600V | 100mA/200mA/500mA/1A/2A/5A/10A/20A |
View the complete
product specifications
