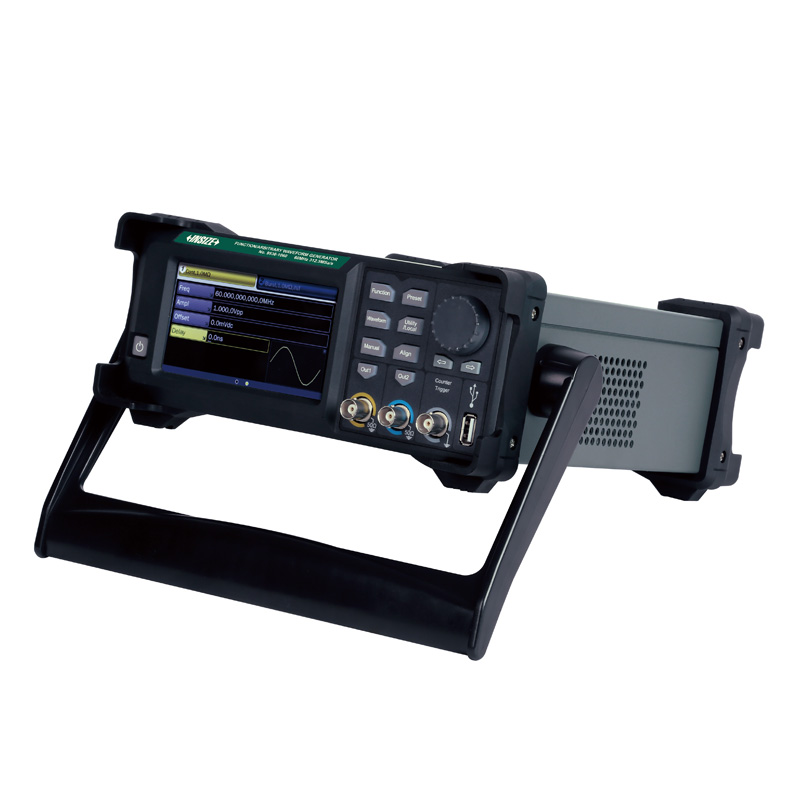

Arbitrary Waveform Generators
Code: 9536
Maximum output frequency: 60MHz
Maximum sampling rate: 312.5MSa/s
Frequency accuracy: 25ppm
16 bits vertical resolution
Output waveform: 8 standard waveforms, 149 built-in arbitrary waveforms
Modulation: AM, FM, PM, PWM, SUM, FSK, 4FSK, nFSK, PSK, 4PSK, nPSK, ASK, OSK
| Code | Channel number | Sampling rate | Arbitrary waveform length | Maximum output frequency |
|---|---|---|---|---|
| 9536-1020 | 2 | 312.5MSa/s | 2~16K | 20MHz |
| 9536-1030 | 2 | 312.5MSa/s | 2~16K | 30MHz |
| 9536-1040 | 2 | 312.5MSa/s | 2~16K | 40MHz |
| 9536-1060 | 2 | 312.5MSa/s | 2~16K | 60MHz |

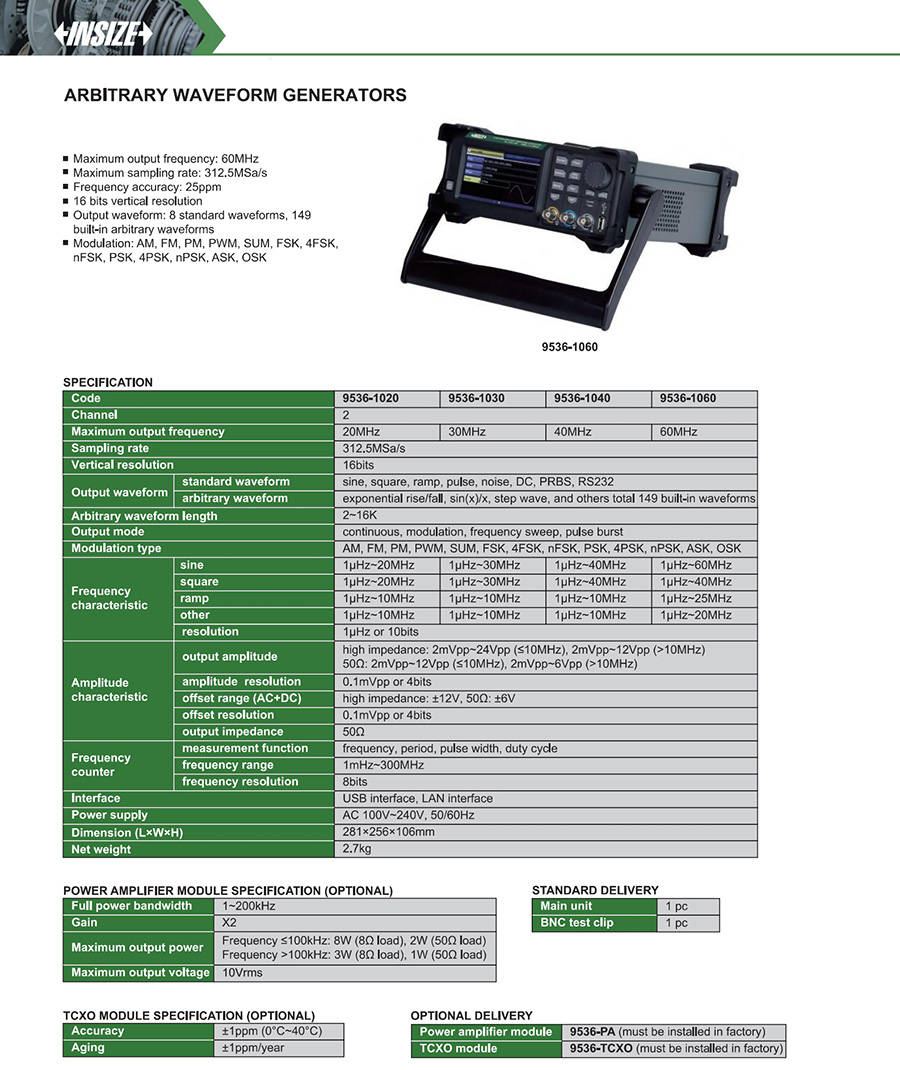

View the complete
