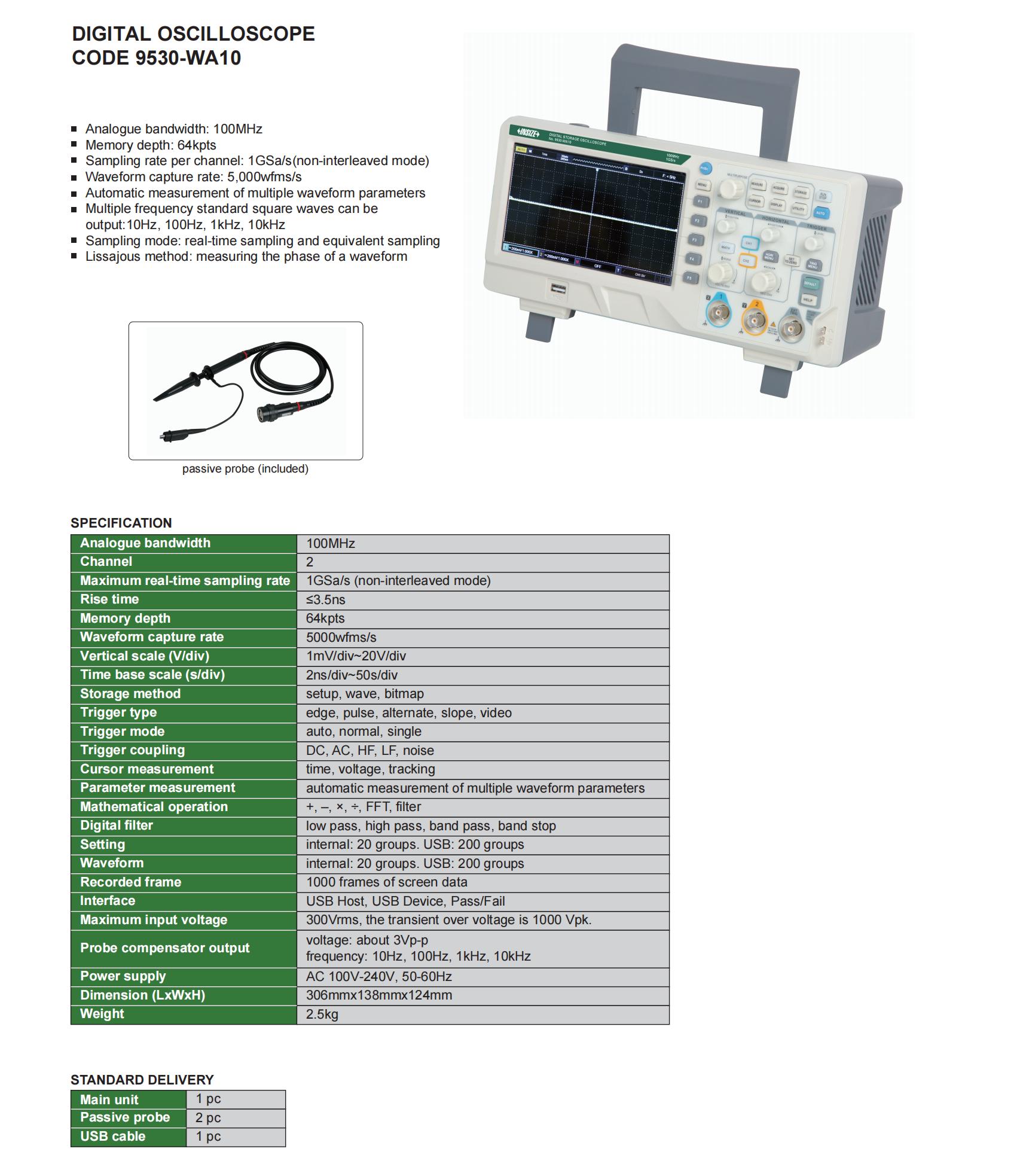

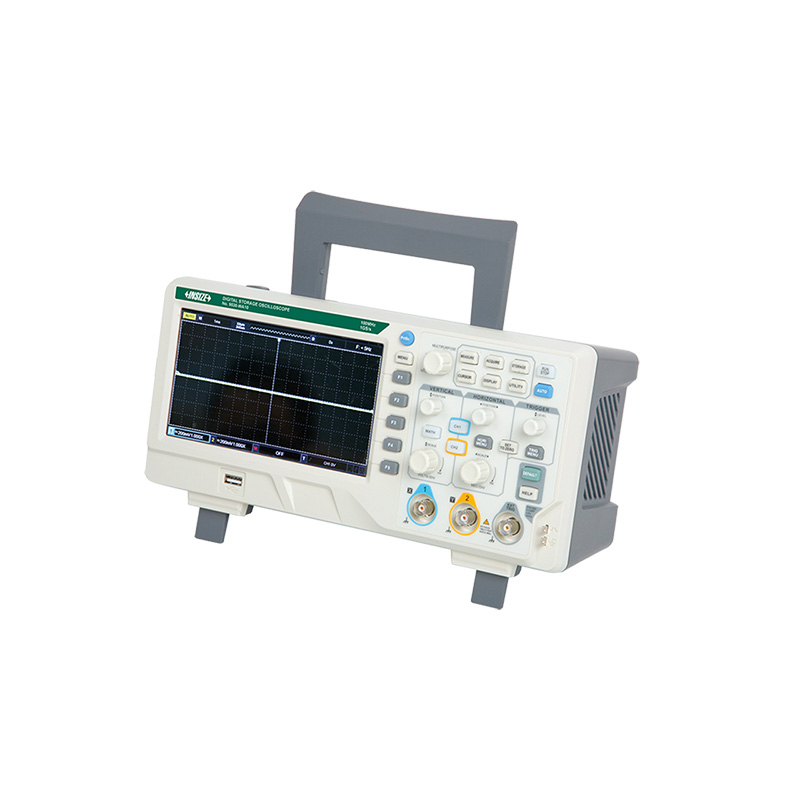

Digital Oscilloscope
Code: 9530-WA10
Memory depth: 64kpts
Sampling rate per channel: 1GSa/s (non-interleaved mode)
Waveform capture rate: 5,000wfms/s
Automatic measurement of multiple waveform parameters
Multiple frequency standard square waves can be output:10Hz, 100Hz, 1kHz, 10kHz
| Code | Channel number | Analogue bandwidth | Maximum real-time sampling rate | Rise time | Memory depth | Waveform capture rate |
|---|---|---|---|---|---|---|
| 9530-WA10 | 2 | 100MHz | 1GSa/s (non-interleaved mode) | ≤3.5ns | 64kpts | 5000wfms/s |
