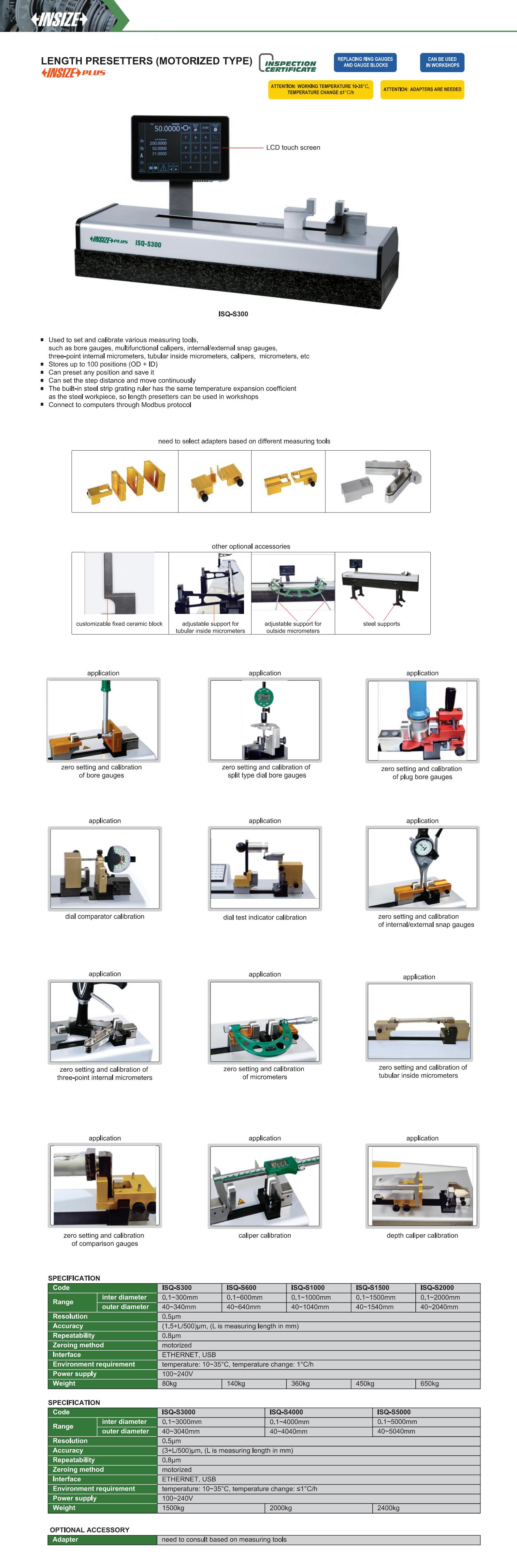

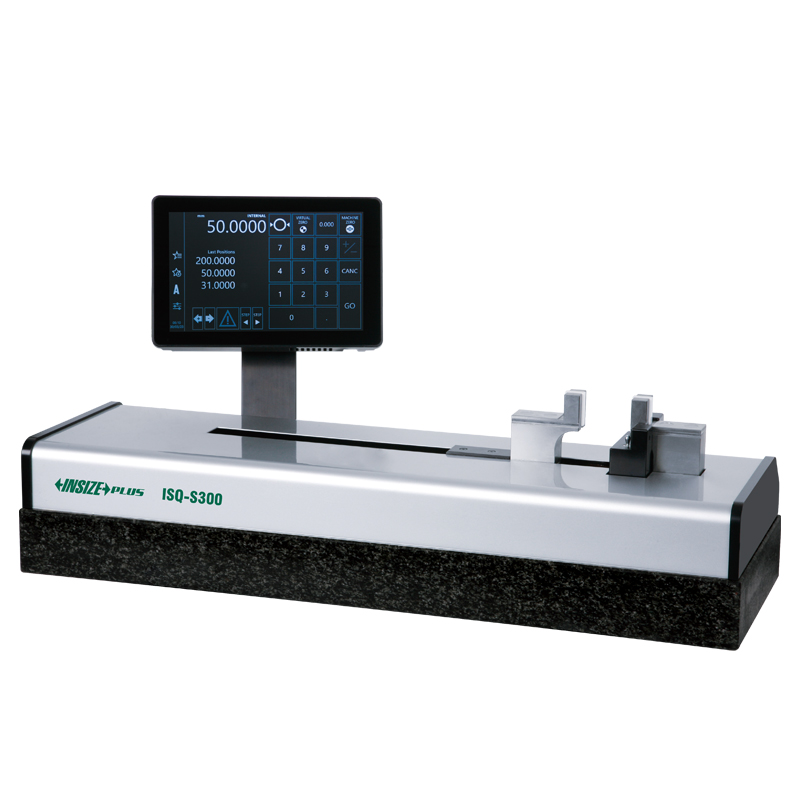

Length Presetters (Motorized Type)
Code: ISQ-S Series
Used to set and calibrate various measuring tools, such as bore gauges, multifunctional calipers, internal/external snap gauges, three-point internal micrometers, tubular inside micrometers, calipers, micrometers, etc.
Stores up to 100 positions (OD+ID)
Can preset any position and save it
Can set the step distance and move continuously
The built-in steel strip grating ruler has the same temperature expansion coefficient as the steel workpiece, so length presetters can be used in workshops
| Code | Range | Accuracy | Resolution | Repeatability |
|---|---|---|---|---|
| ISQ-S300 | Inter diameter:0.1~300mm/Outer diameter:40~340mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S600 | Inter diameter:0.1~600mm/Outer diameter:40~640mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S1000 | Inter diameter:0.1~1000mm/Outer diameter:40~1040mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S1500 | Inter diameter:0.1~1500mm/Outer diameter:40~1540mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S2000 | Inter diameter:0.1~2000mm/Outer diameter:40~2040mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S3000 | Inter diameter:0.1~3000mm/Outer diameter:40~3040mm | (3+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S4000 | Inter diameter:0.1~4000mm/Outer diameter:40~4040mm | (3+L/500)μm | 0.5μm | 0.8μm |
| ISQ-S5000 | Inter diameter:0.1~5000mm/Outer diameter:40~5040mm | (3+L/500)μm | 0.5μm | 0.8μm |
