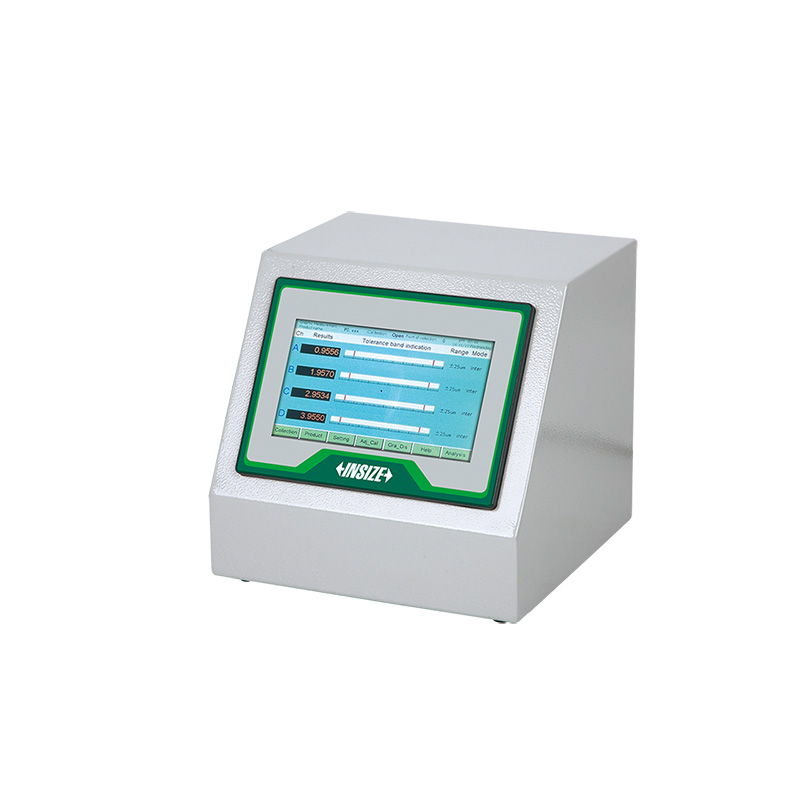

Multi Channel Air Gauge Displays
Code: 9440
Data storage function, 2 million groups data can be stored
Can store 10 groups measuring programs, and the program can be switched quickly
Insert USB flash disk to output storage data, update program
Data can be shared or networked via TCP/IP (customized)
Product codes can be entered by scanning gun or manually (customized)
With data statistics and analysis functions, can display graphs and Xbar-R control charts
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 9440-DP1 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP2 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP3 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP4 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP5 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP6 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP7 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
| 9440-DP8 | 10μm, 20μm, 50μm, 100μm (adjustable) | 0.2μm (range 10μm), 0.4μm (range 20μm), 1μm (range 50μm), 3μm (range 100μm) | 0.1μm |
