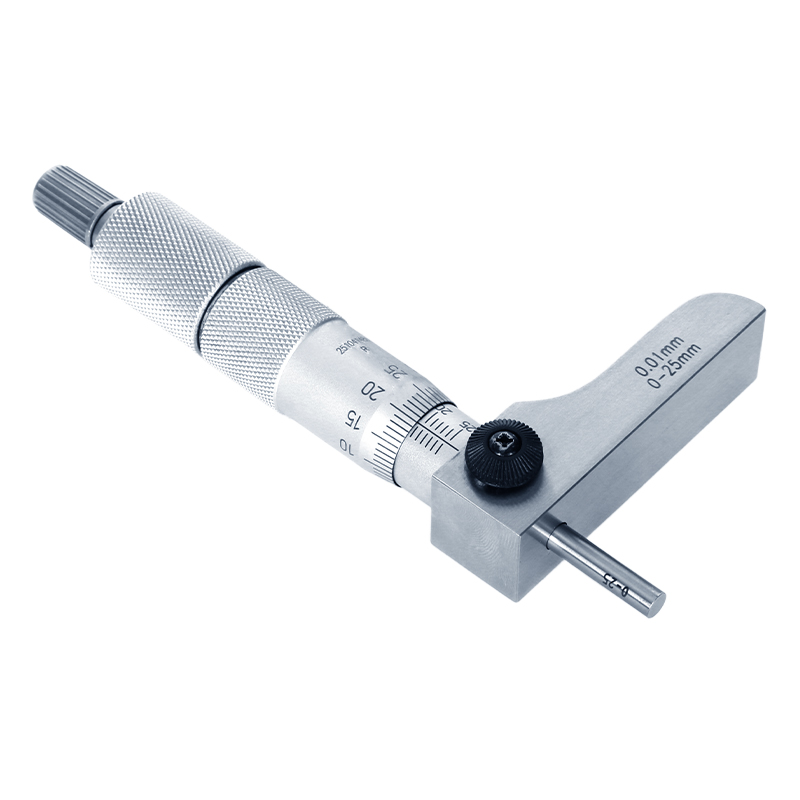

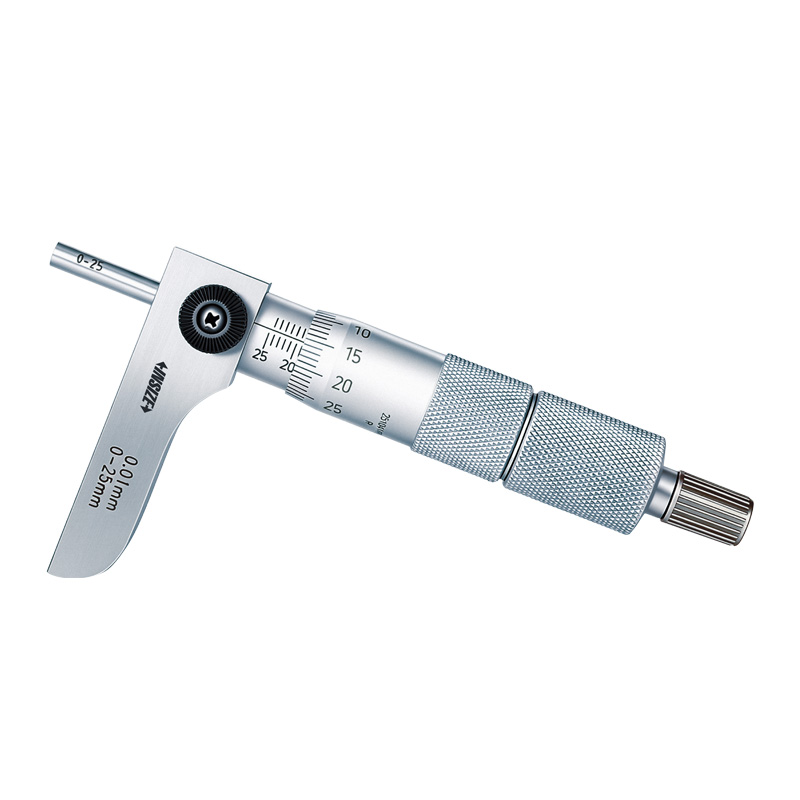

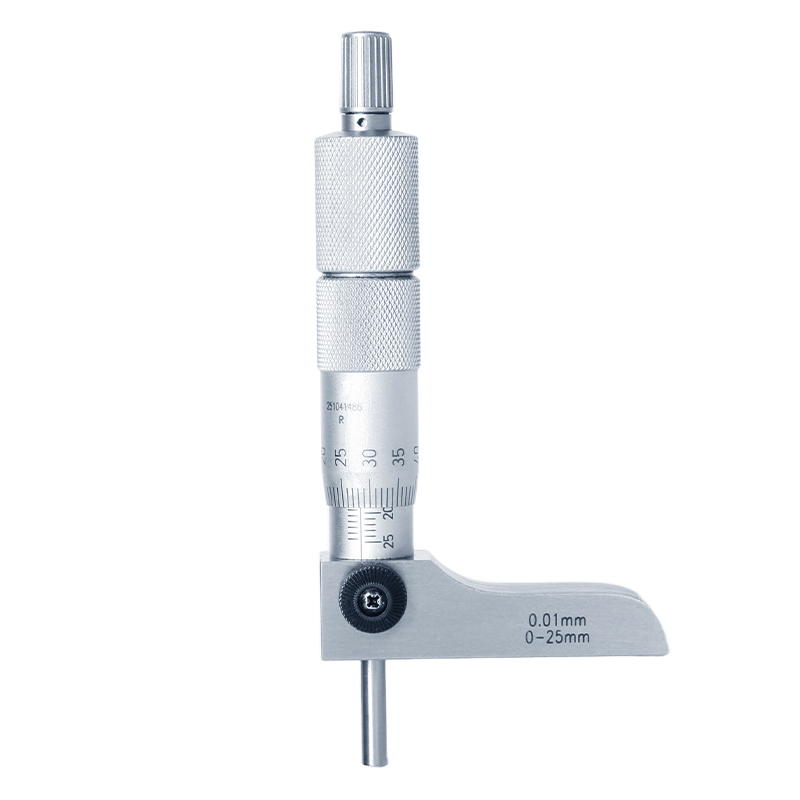

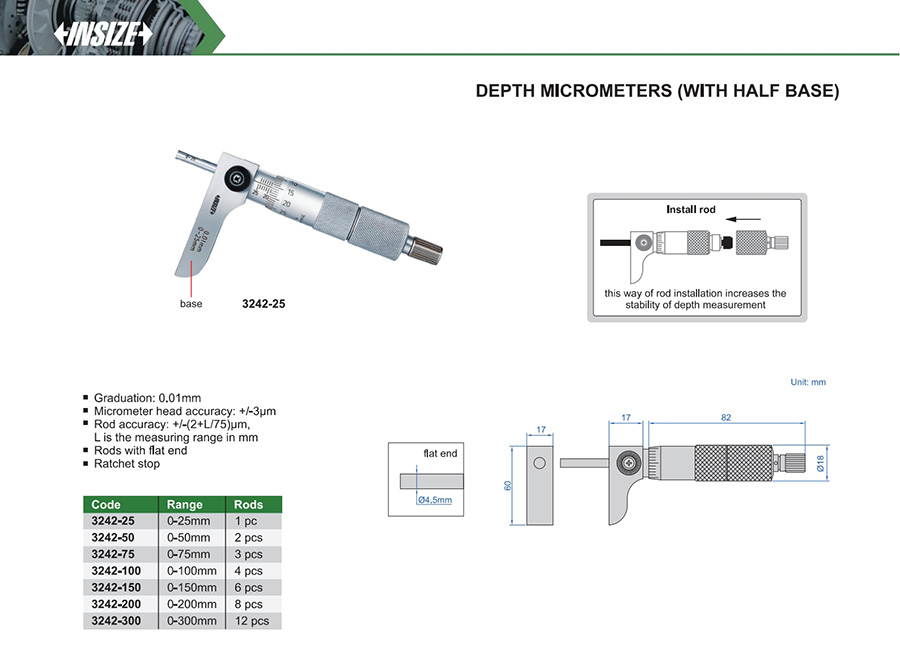

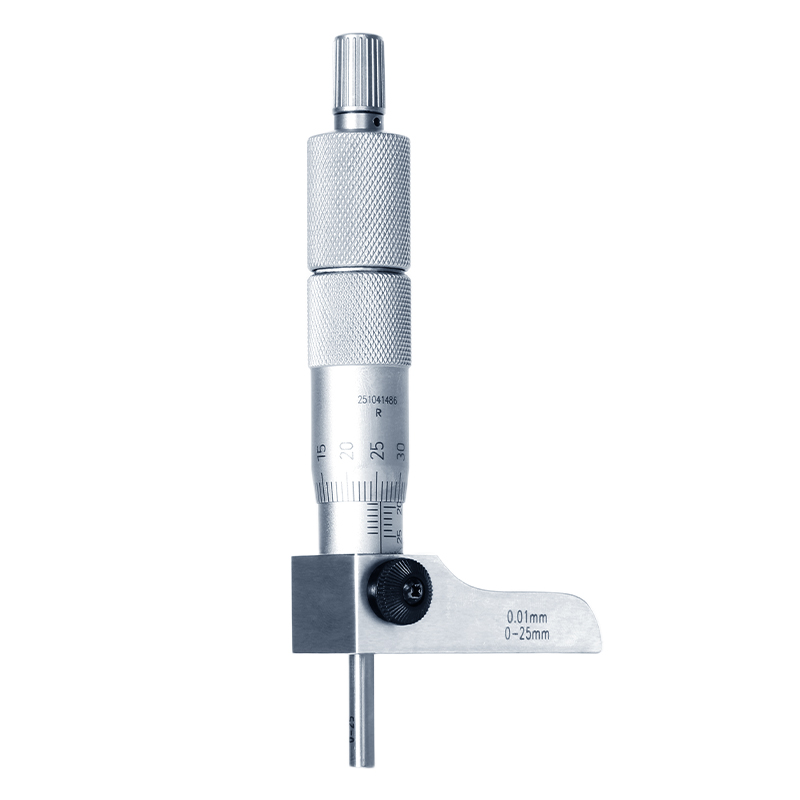

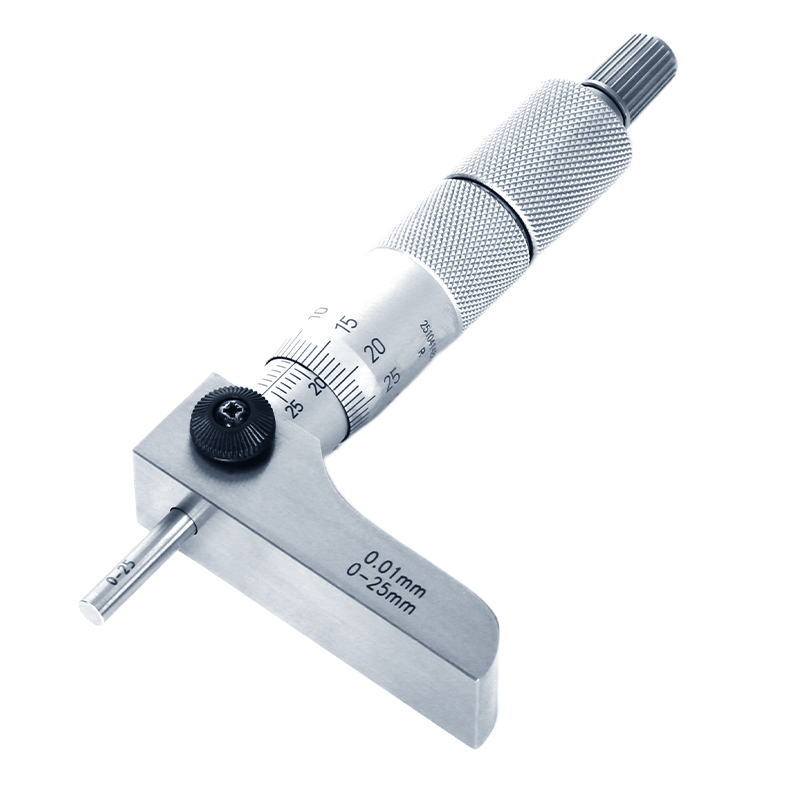

Depth Micrometers (With Half Base)
Code: 3242
Micrometer head accuracy: +/-3μm
Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm
Rods with flat end
Ratchet stop
| Code | Range | Graduation |
|---|---|---|
| 3242-25 | 0-25mm | 0.01mm |
| 3242-50 | 0-50mm | 0.01mm |
| 3242-75 | 0-75mm | 0.01mm |
| 3242-100 | 0-100mm | 0.01mm |
| 3242-150 | 0-150mm | 0.01mm |
| 3242-200 | 0-200mm | 0.01mm |
| 3242-300 | 0-300mm | 0.01mm |
