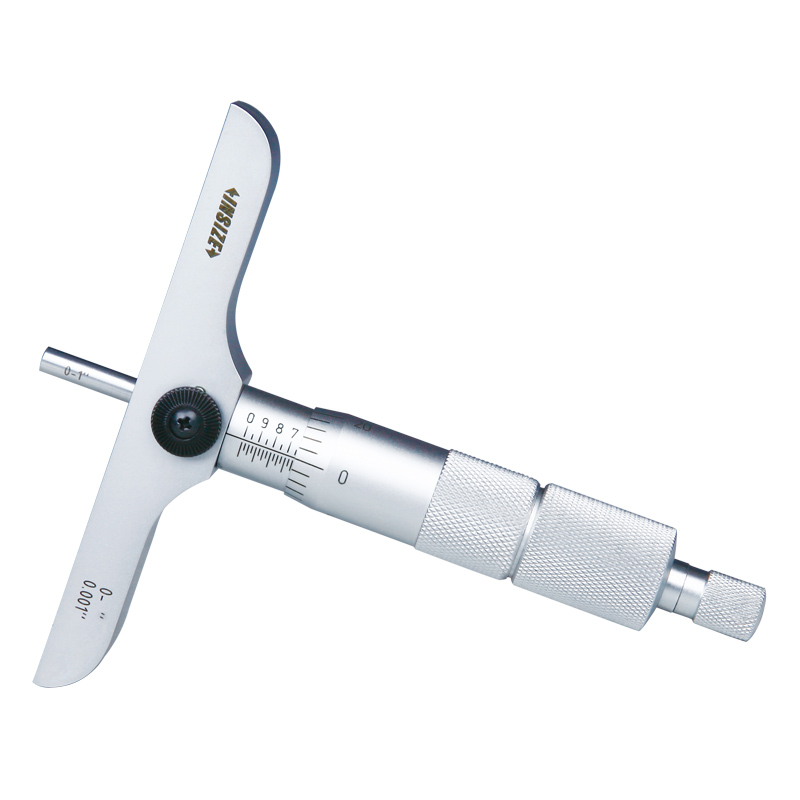

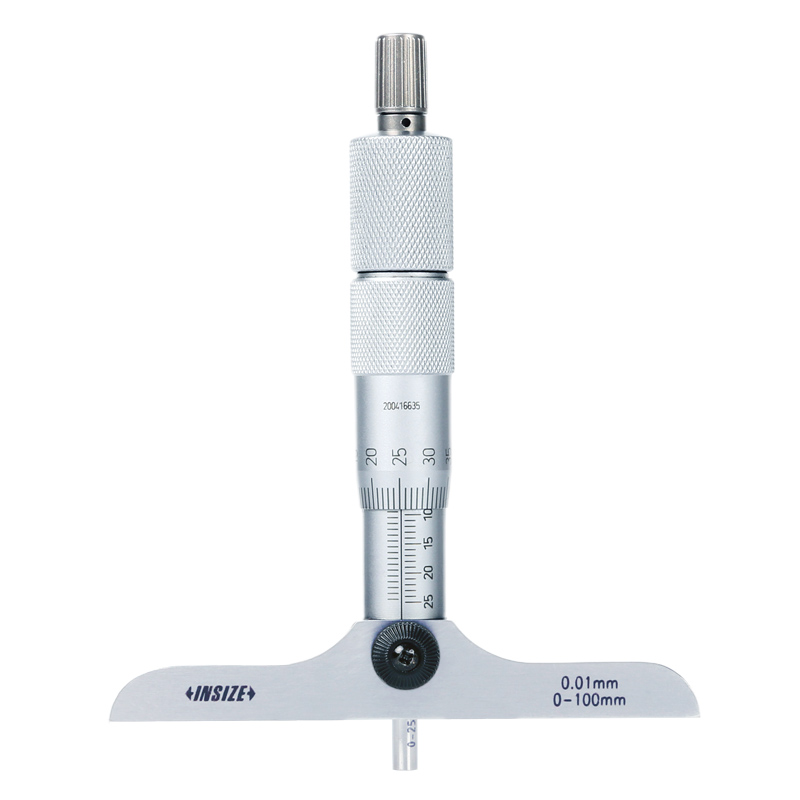

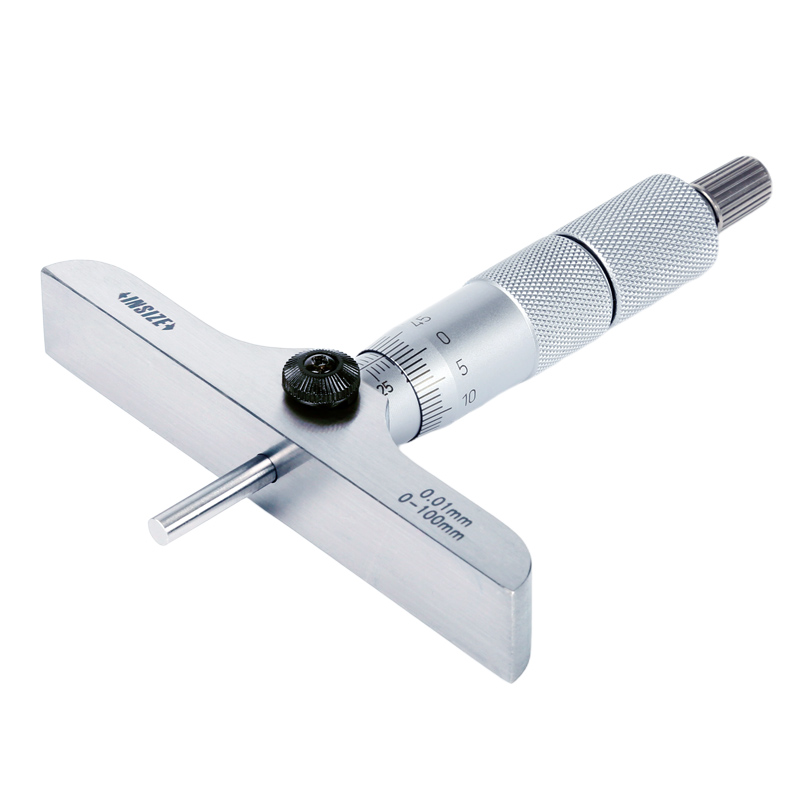

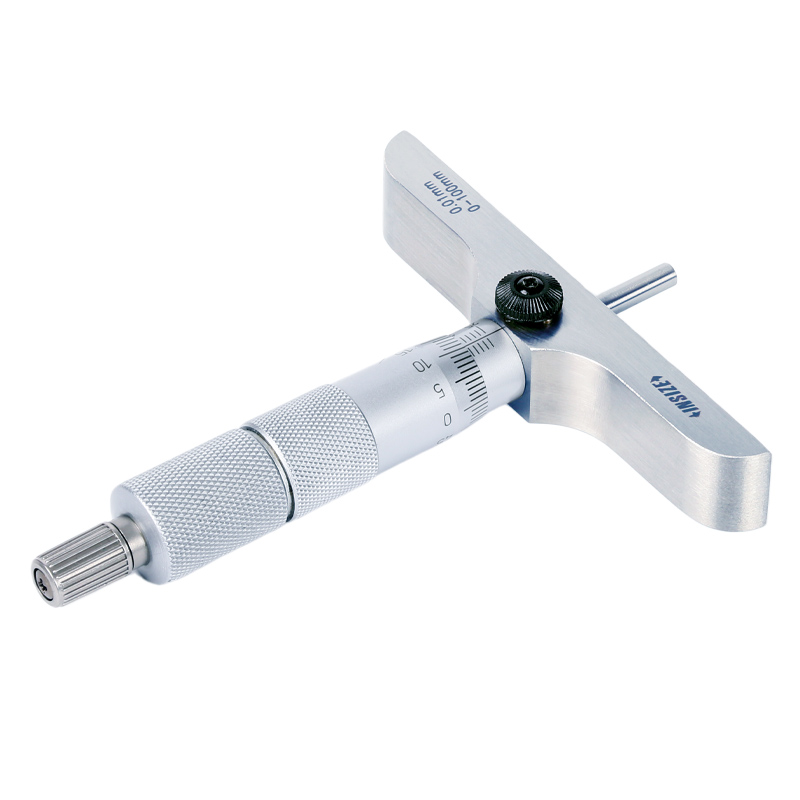

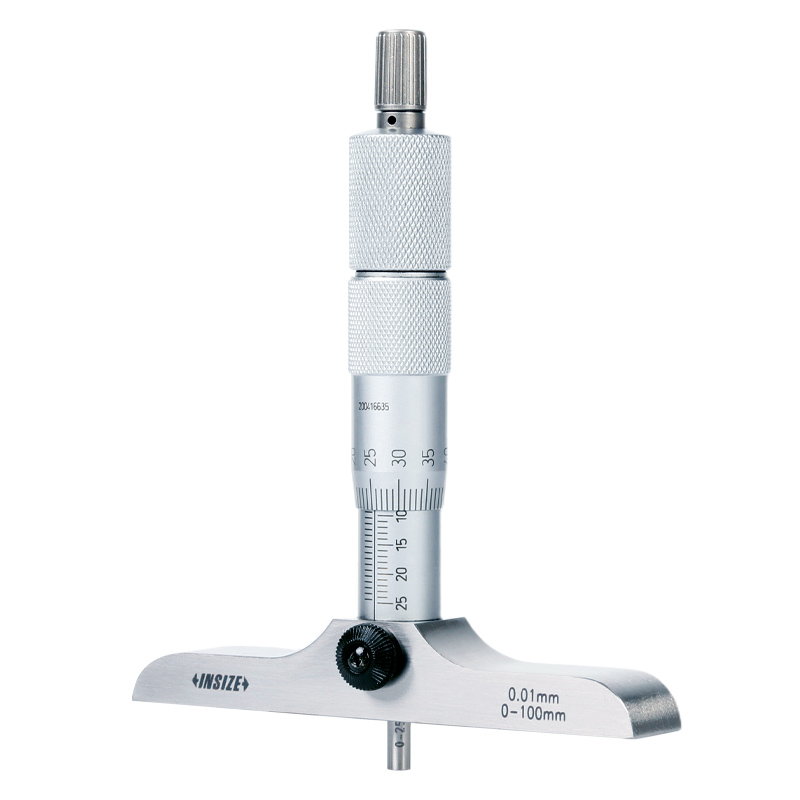

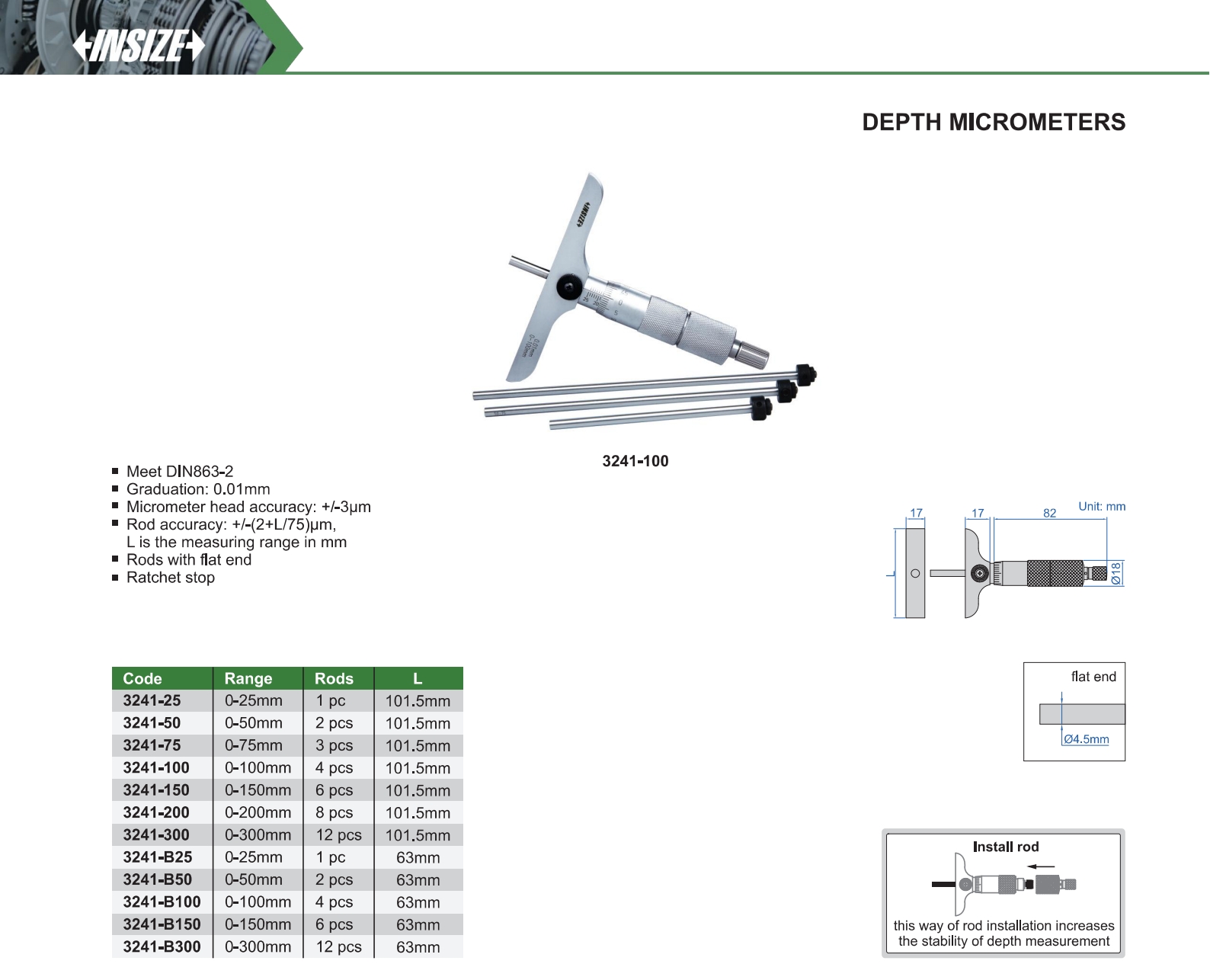

Depth Micrometers
Code: 3241
Meet DIN863-2
Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm
Rods with flat end
Ratchet stop
Micrometer head accuracy: +/-3μm
| Code | Range | Graduation | Length of Base Plate Measuring Surface |
|---|---|---|---|
| 3241-25 | 0-25mm | 0.01mm | 101.5mm |
| 3241-50 | 0-50mm | 0.01mm | 101.5mm |
| 3241-75 | 0-75mm | 0.01mm | 101.5mm |
| 3241-100 | 0-100mm | 0.01mm | 101.5mm |
| 3241-150 | 0-150mm | 0.01mm | 101.5mm |
| 3241-200 | 0-200mm | 0.01mm | 101.5mm |
| 3241-300 | 0-300mm | 0.01mm | 101.5mm |
| 3241-B25 | 0-25mm | 0.01mm | 63mm |
| 3241-B50 | 0-50mm | 0.01mm | 63mm |
| 3241-B100 | 0-100mm | 0.01mm | 63mm |
| 3241-B150 | 0-150mm | 0.01mm | 63mm |
| 3241-B300 | 0-300mm | 0.01mm | 63mm |
