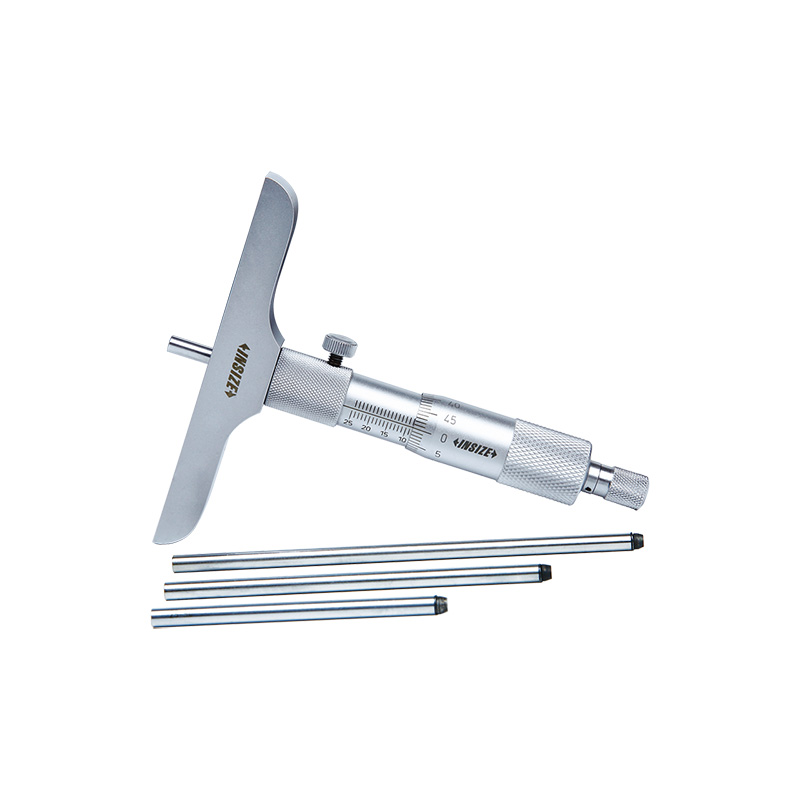

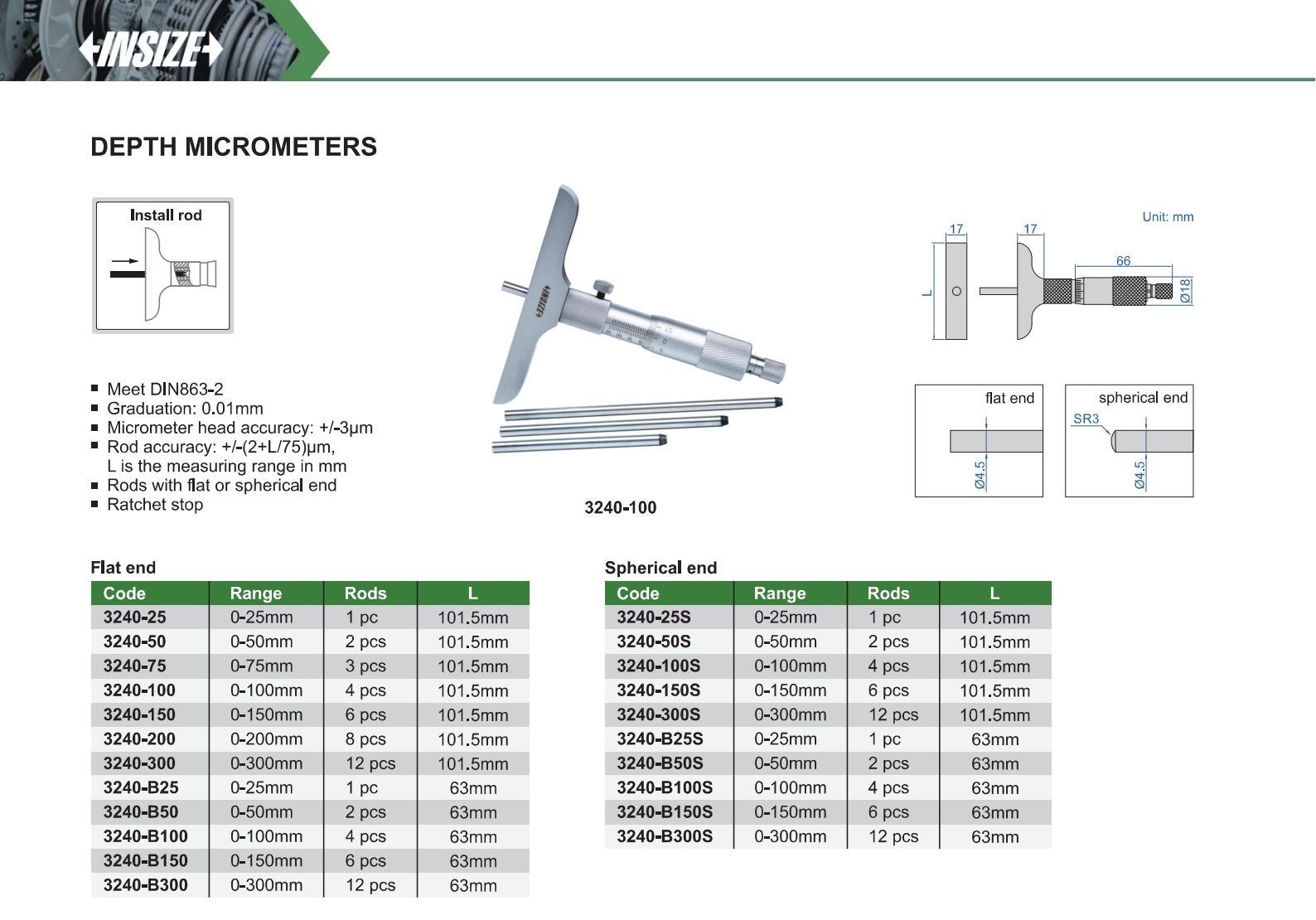

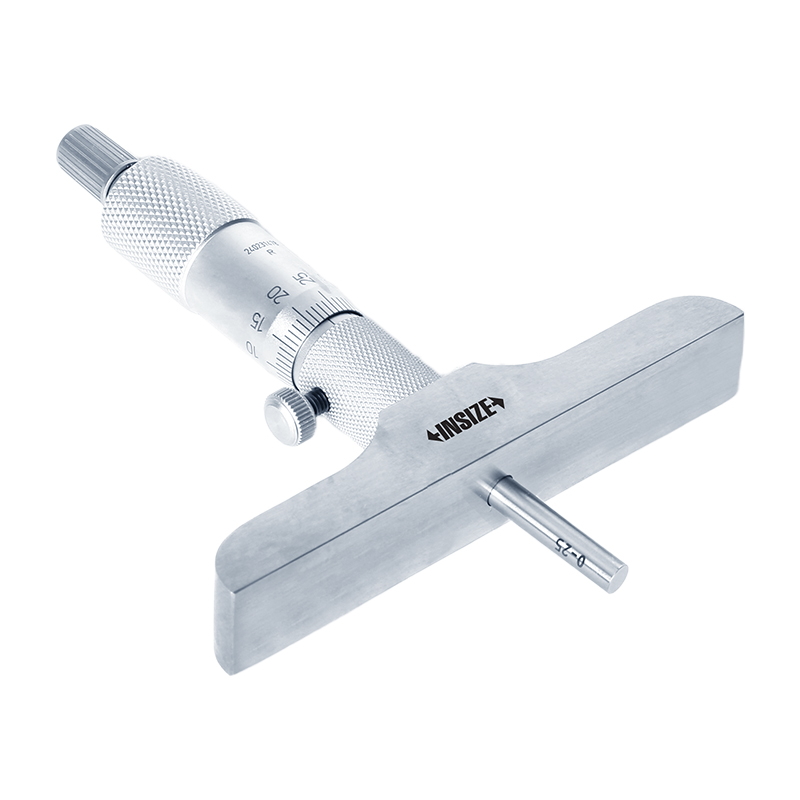

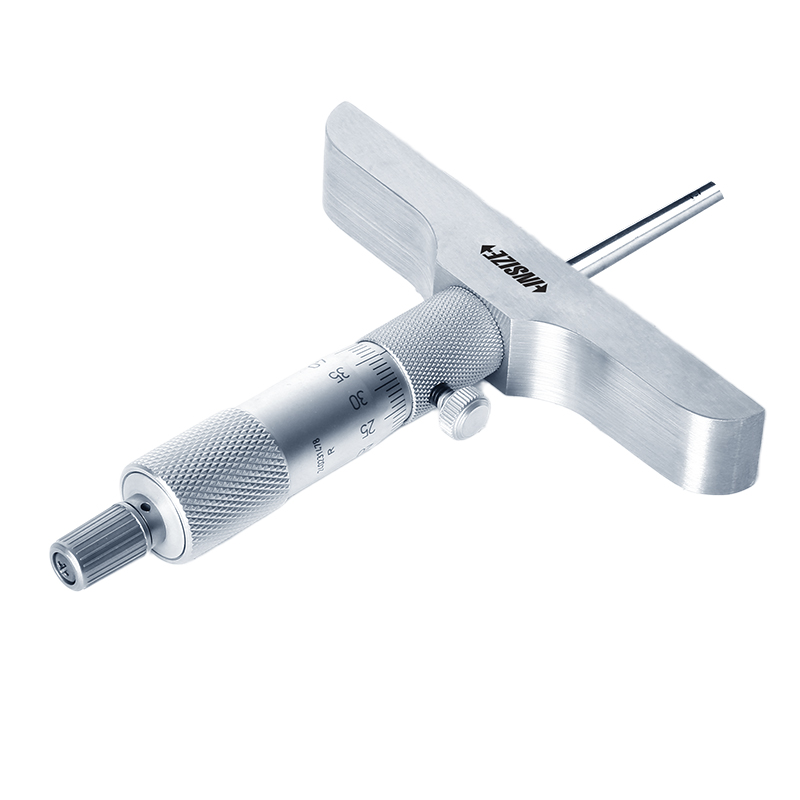

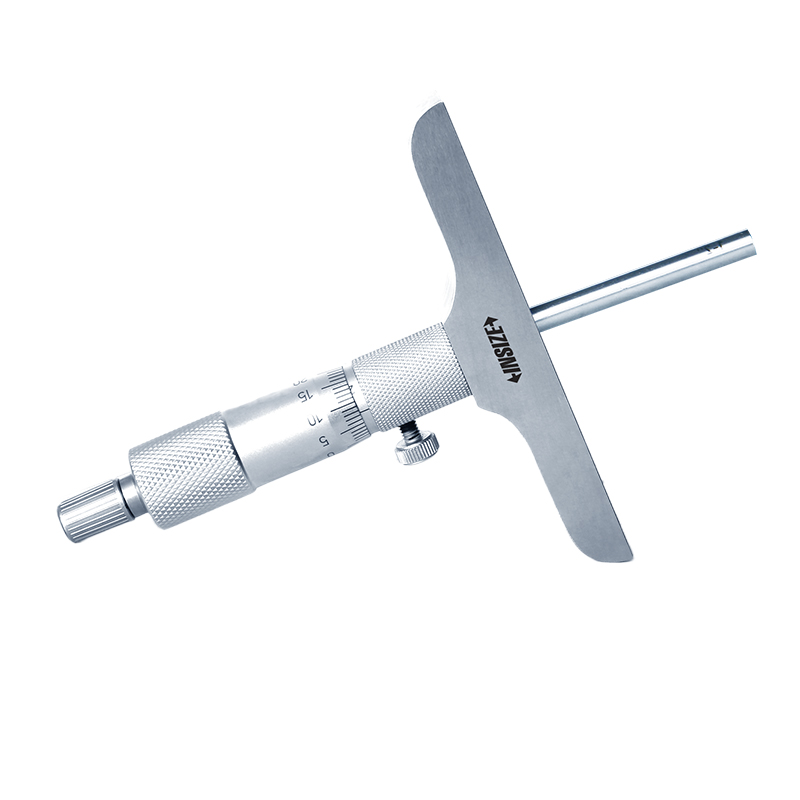

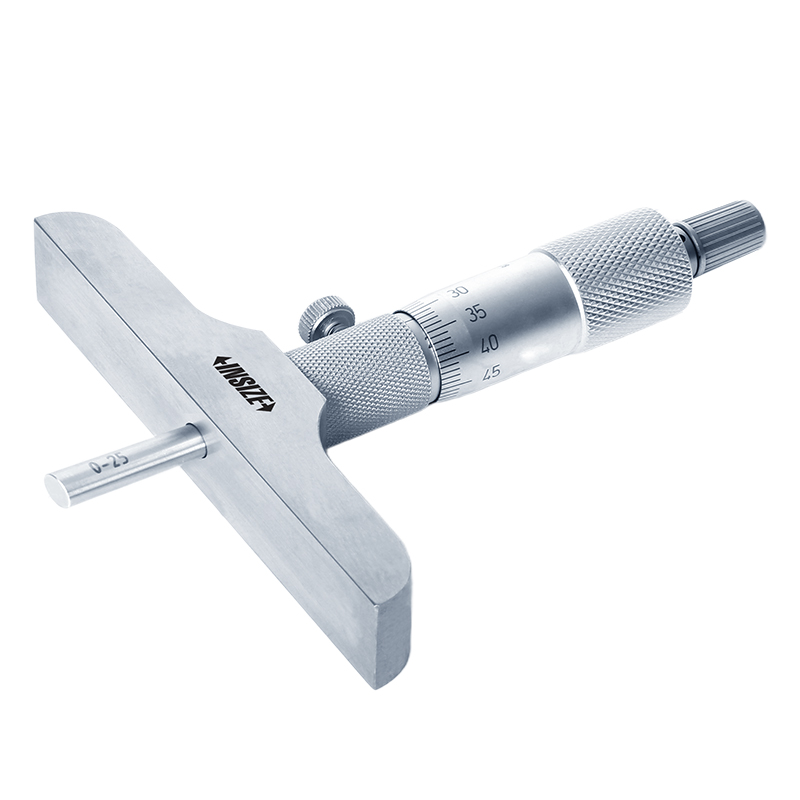

Depth Micrometers
Code: 3240
Micrometer head accuracy: +/-3μm
Meet DIN863-2
Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm
Rods with flat or spherical end
Ratchet stop
| Code | Range | Graduation | Type of rod |
|---|---|---|---|
| 3240-25 | 0-25mm | 0.01mm | Flat end |
| 3240-50 | 0-50mm | 0.01mm | Flat end |
| 3240-75 | 0-75mm | 0.01mm | Flat end |
| 3240-100 | 0-100mm | 0.01mm | Flat end |
| 3240-150 | 0-150mm | 0.01mm | Flat end |
| 3240-200 | 0-200mm | 0.01mm | Flat end |
| 3240-300 | 0-300mm | 0.01mm | Flat end |
| 3240-B25 | 0-25mm | 0.01mm | Flat end |
| 3240-B50 | 0-50mm | 0.01mm | Flat end |
| 3240-B100 | 0-100mm | 0.01mm | Flat end |
| 3240-B150 | 0-150mm | 0.01mm | Flat end |
| 3240-B300 | 0-300mm | 0.01mm | Flat end |
| 3240-25S | 0-25mm | 0.01mm | Spherical end |
| 3240-50S | 0-50mm | 0.01mm | Spherical end |
| 3240-100S | 0-100mm | 0.01mm | Spherical end |
| 3240-150S | 0-150mm | 0.01mm | Spherical end |
| 3240-300S | 0-300mm | 0.01mm | Spherical end |
| 3240-B25S | 0-25mm | 0.01mm | Spherical end |
| 3240-B50S | 0-50mm | 0.01mm | Spherical end |
| 3240-B100S | 0-100mm | 0.01mm | Spherical end |
| 3240-B150S | 0-150mm | 0.01mm | Spherical end |
| 3240-B300S | 0-300mm | 0.01mm | Spherical end |
