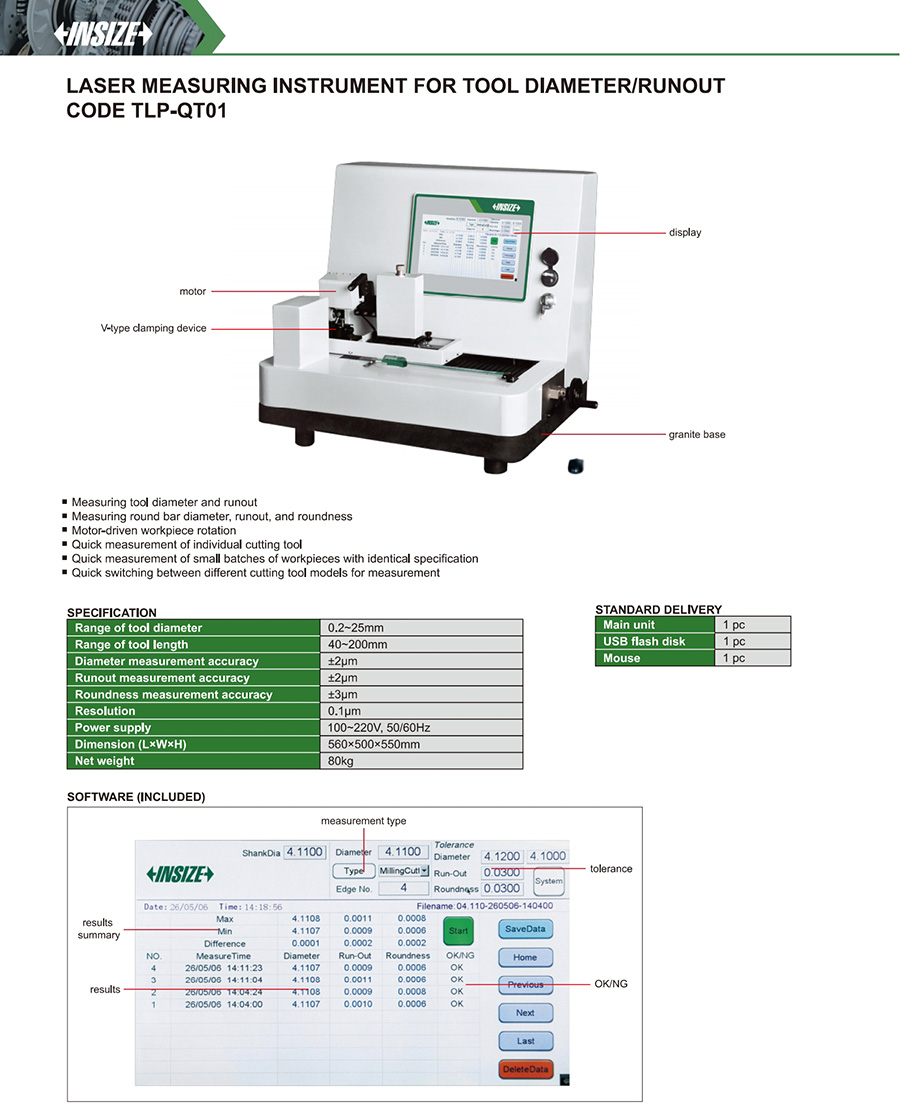

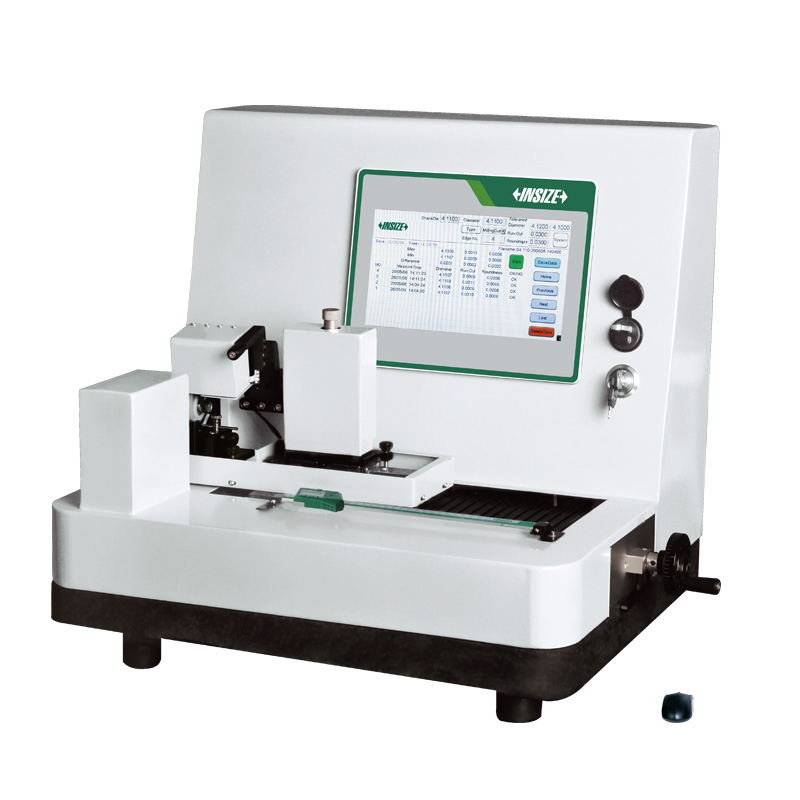

Laser Measuring Instrument For Tool Diameter/Runout
Code: TLP-QT01
Measuring tool diameter and runout
Measuring round bar diameter, runout, and roundness
Motor-driven workpiece rotation
Quick measurement of individual cutting tool
Quick measurement of small batches of workpieces with identical specification
Quick switching between different cutting tool models for measurement
| Code | Range | Diameter measurement accuracy | Runout measurement accuracy | Roundness measurement accuracy |
|---|---|---|---|---|
| TLP-QT01 | 0.2~25mm | ±2μm | ±2μm | ±3μm |
View the complete
product specifications
