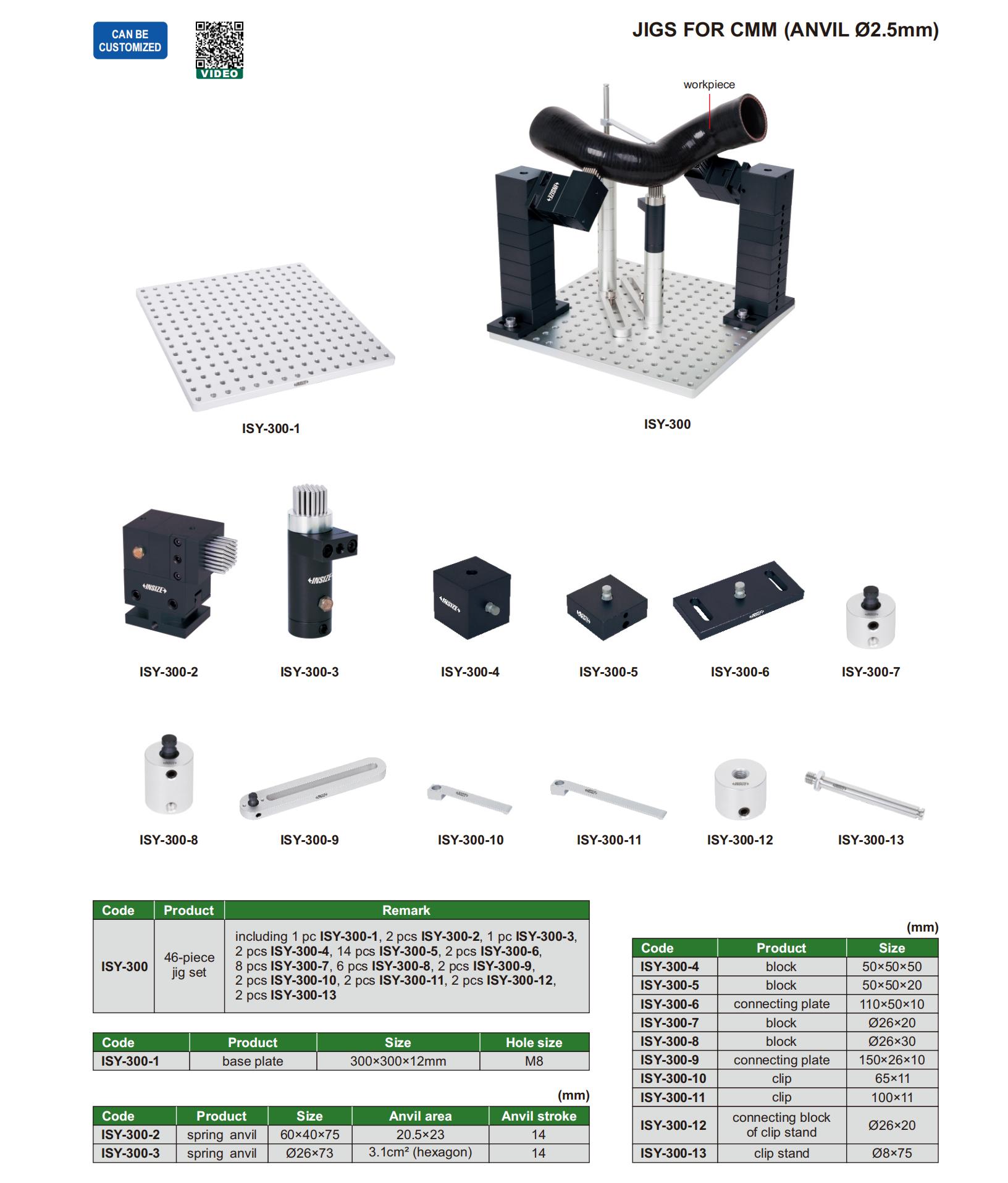

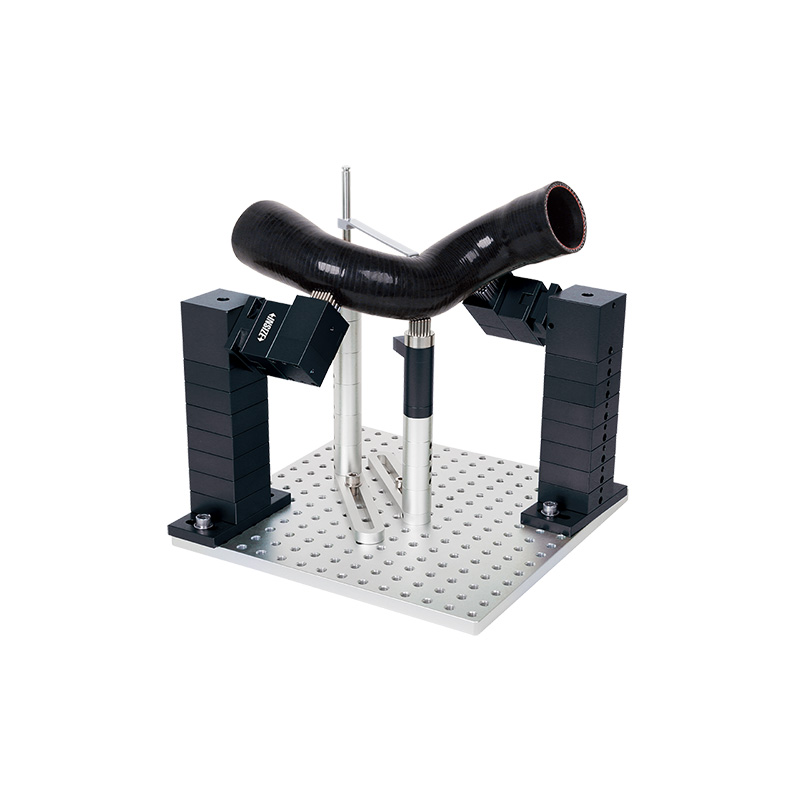

Jigs For Cmm (Anvil Ø2.5mm)
Code: ISY-300
| Code | Size | Product |
|---|---|---|
| ISY-300 | —— | 46-piece jig set |
| ISY-300-1 | 300×300×12 | base plate |
| ISY-300-2 | 60×40×75 | spring anvil |
| ISY-300-3 | Ø26×73 | spring anvil |
| ISY-300-4 | 50×50×50 | block |
| ISY-300-5 | 50×50×20 | block |
| ISY-300-6 | 110×50×10 | connecting plate |
| ISY-300-7 | Ø26×20 | block |
| ISY-300-8 | Ø26×30 | block |
| ISY-300-9 | 150×26×10 | connecting plate |
| ISY-300-10 | 65×11 | clip |
| ISY-300-11 | 100×11 | clip |
| ISY-300-12 | Ø26×20 | connecting block of clip stand |
| ISY-300-13 | Ø8×75 | clip stand |
View the complete
product specifications
