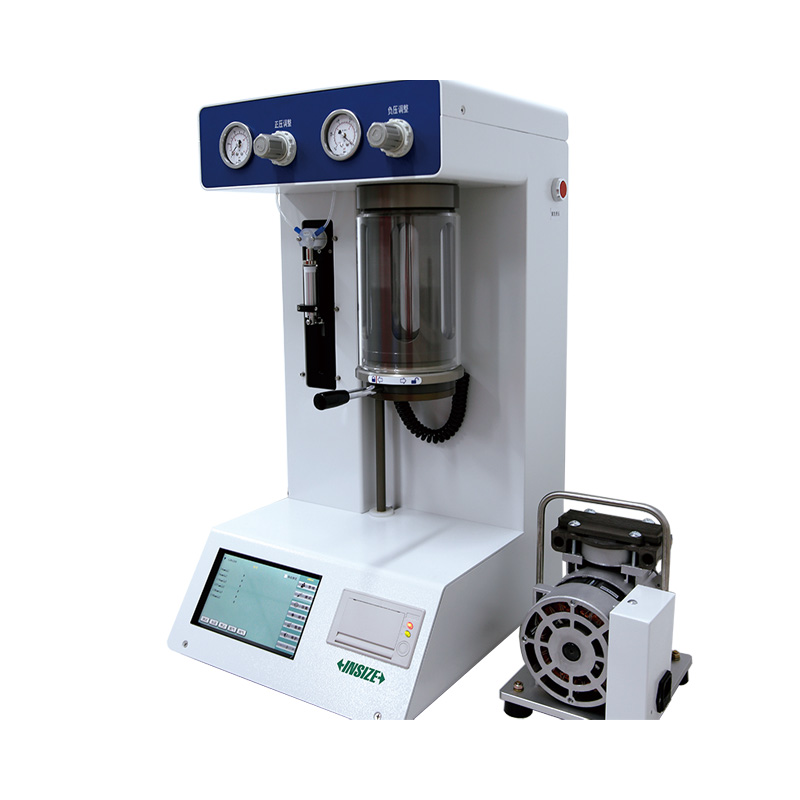

Oil Particle Counter (Standard Type)
Code: PSC-TX100
Built in ISO4406, NAS1638, SEA4059F, SAE749D, SAE4059cpc, ГOCT17216, QC/T29104, GJB420A, GJB420B standards
High precision laser sensors, wide measurement range, stable performance, high resolution
Test interval can be set freely
Built in data analysis system, can display each channel's particle size data, auto judge sample grade and print data
Parameters can be modified, ultra large storage
| Code | Light source | Particle size range | Limit coincidence error |
|---|---|---|---|
| PSC-TX100 | semiconductor laser | 1~100μm (ACFTD standard) or 4~70μm (c) (ISO MTD standard) | 12000~40000particle/ml |

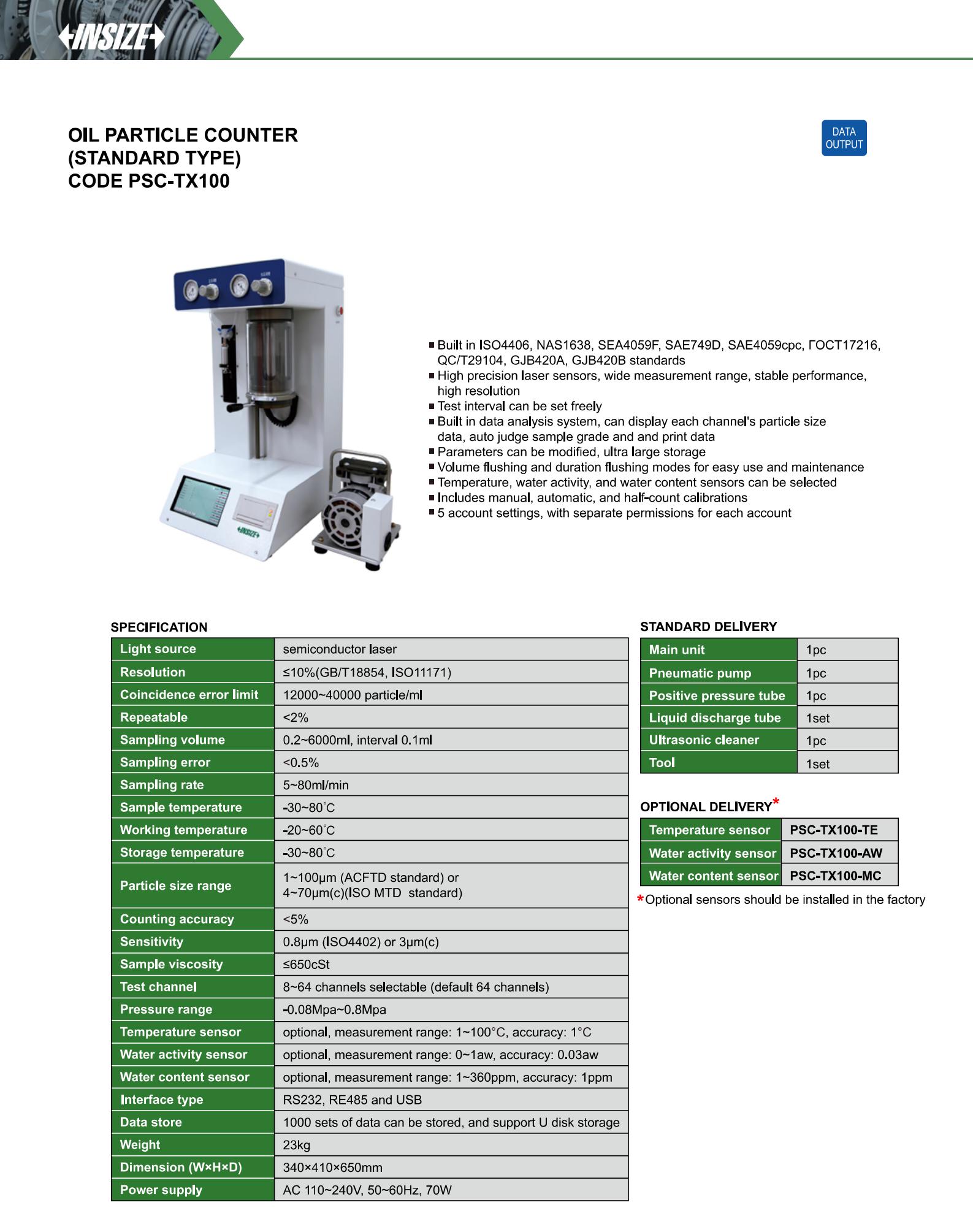

View the complete
