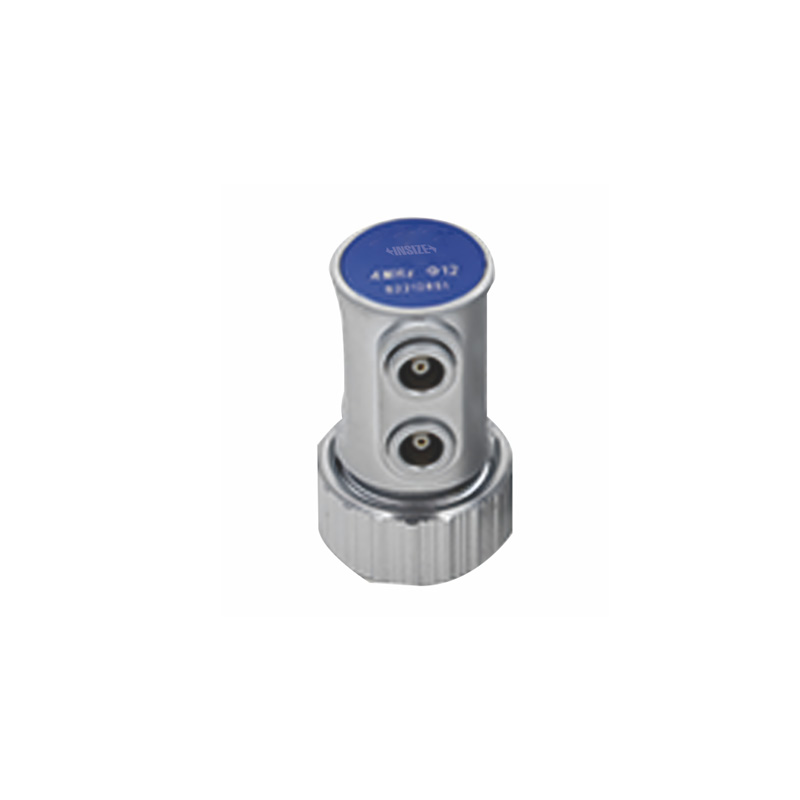

Dual-Element Straight Probes
Code: UFD-S□L□E□F□
Suitable for detecting defects near the surface and detecting parallel surfaces or near-parallel surfaces
Two element, one transmitter and one receiver
Vertical incident longitudinal wave detection by direct probe contact with the workpiece surface
The contact surface is made of hard wear-resistant material, which matches well with the metal acoustic impedance, high sensitivity and strong penetration
High near-surface resolution, small blind zones
Higher sensitivity can be obtained in the focal length range
| Code | Frequency | Focal length | Element size | Interface type |
|---|---|---|---|---|
| UFD-S□L□E□F□ | 5.0MHz (S6) | 5mm (L1), 10mm (L2), 15mm (L3), 20mm (L4), 25mm (L5), 30mm (L6) | Ø6mm (E1) | C6 (F1) |
| UFD-S□L□E□F□ | 2.5MHz (S4), 5.0MHz (S6) | 5mm (L1), 10mm (L2), 15mm (L3), 20mm (L4), 25mm (L5), 30mm (L6) | Ø10mm (E2) | C6 (F1) |
| UFD-S□L□E□F□ | 2.5MHz (S4), 5.0MHz (S6) | 5mm (L1), 10mm (L2), 15mm (L3), 20mm (L4), 25mm (L5), 30mm (L6) | Ø14mm (E3) | C6 (F1) |
| UFD-S□L□E□F□ | 1.0MHz (S1), 2.5MHz (S4), 5.0MHz (S6) | 5mm (L1), 10mm (L2), 15mm (L3), 20mm (L4), 25mm (L5), 30mm (L6) | Ø20mm (E4) | C6 (F1) |
| UFD-S□L□E□F□ | 1.0MHz (S1), 2.0MHz (S3), 4.0MHz (S5) | 5mm (L1), 10mm (L2), 15mm (L3), 20mm (L4), 25mm (L5), 30mm (L6) | 7×10mm (E7) | C5 (F3) |

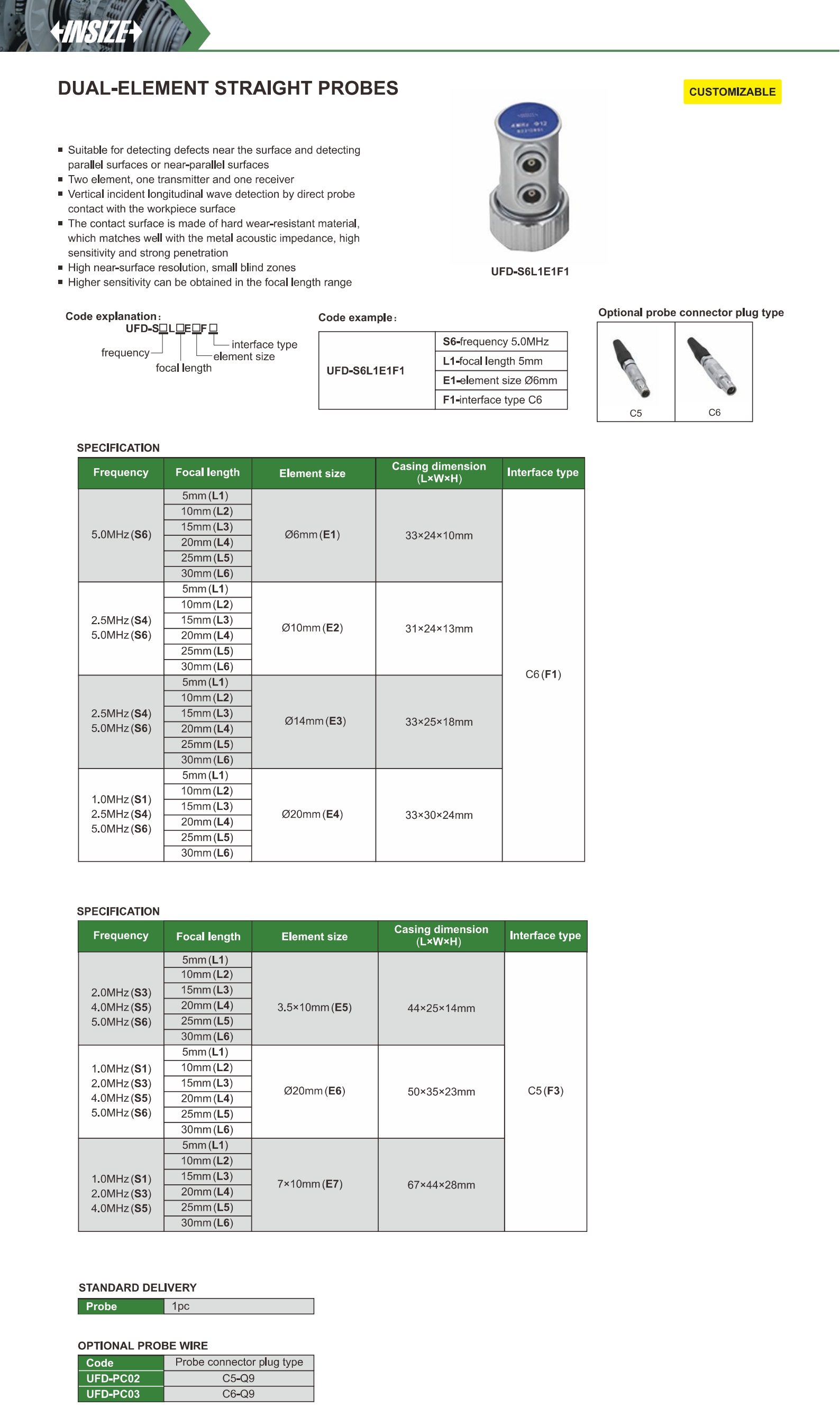

View the complete
