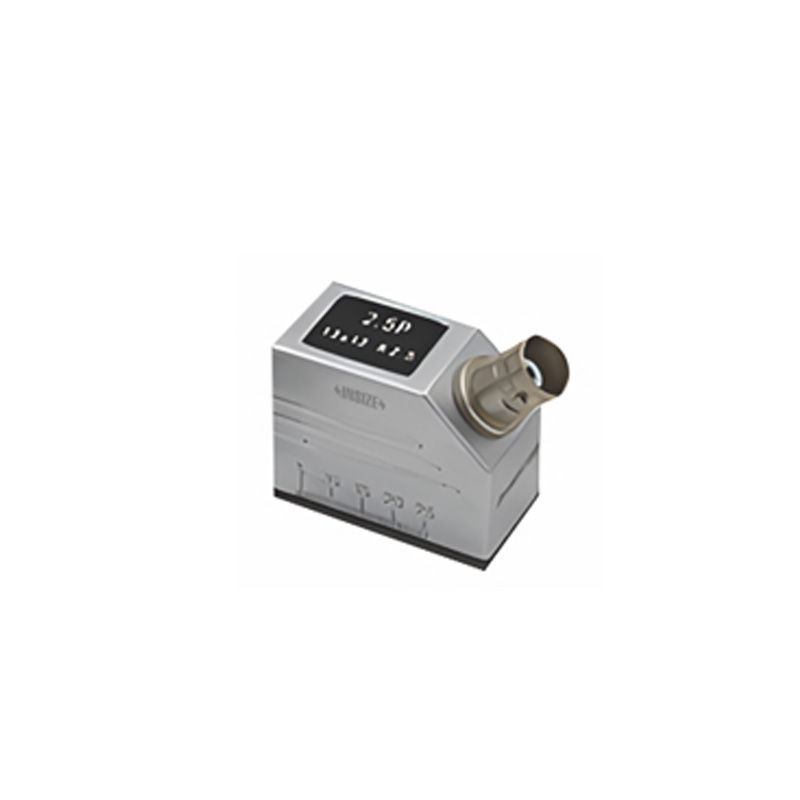

Single-Element Angle Probes
Code: UFD-S□A□B□F□
Suitable for inspection of weld seams, pipe fittings, pressure vessels, turbine blades, wheel axles, etc
Made of metal, sturdy, good shielding performance
Oblique incidence transverse wave detection by direct probe contact with the workpiece surface

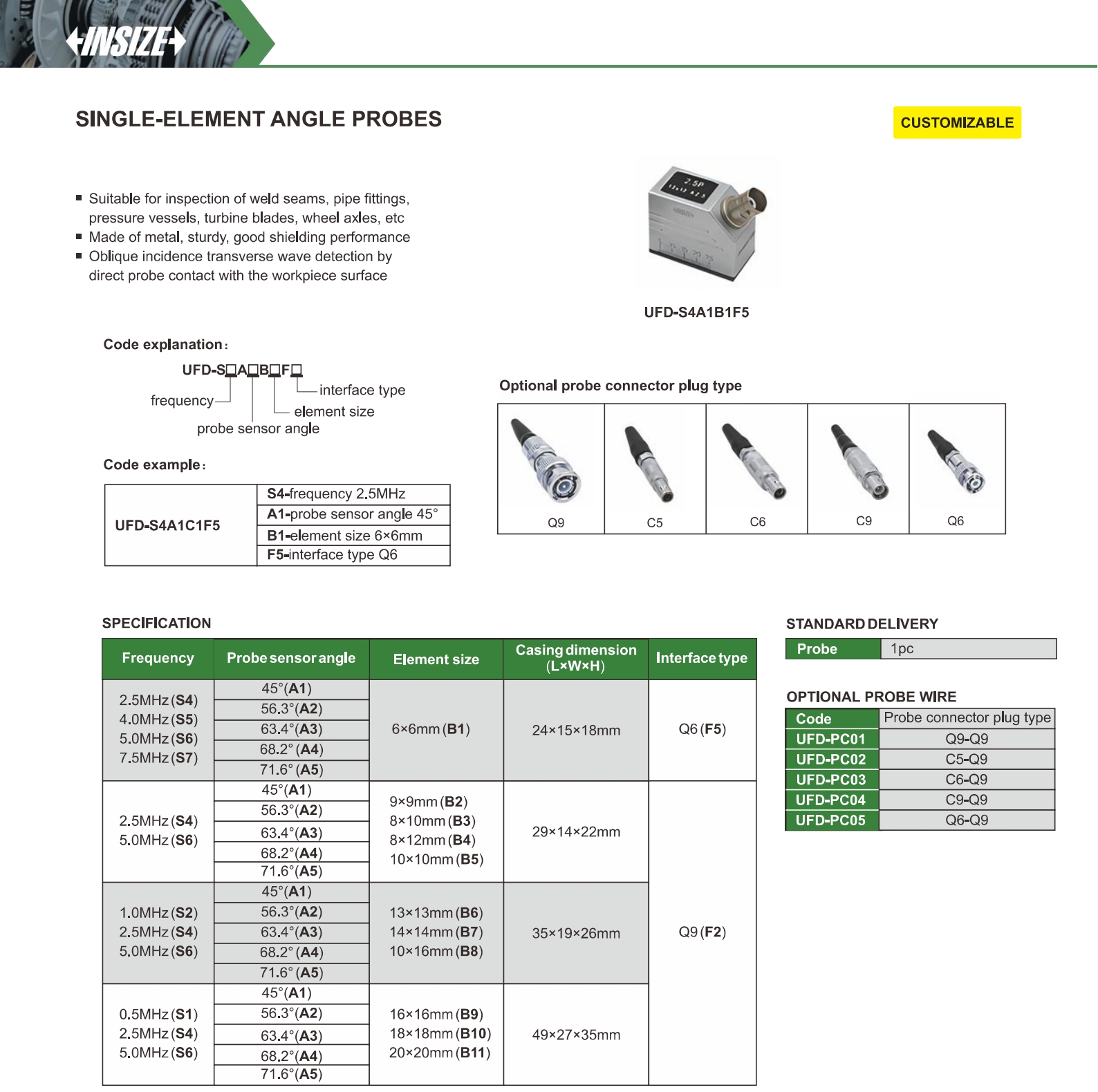

| Code | Frequency | Probe sensor angle | Element size | Interface type |
|---|---|---|---|---|
| UFD-S□A□B□F□ | 2.5MHz (S4), 4.0MHz (S5), 5.0MHz (S6), 7.5MHz (S7) | 45°(A1), 56.3°(A2), 63.4°(A3), 68.2° (A4), 71.6° (A5) | 6×6mm (B1) | Q6 (F5) |
| UFD-S□A□B□F□ | 2.5MHz (S4), 5.0MHz (S6) | 45°(A1), 56.3°(A2), 63.4°(A3), 68.2° (A4), 71.6° (A5) | 9×9mm (B2), 8×10mm (B3), 8×12mm (B4), 10×10mm (B5) | Q9 (F2) |
| UFD-S□A□B□F□ | 1.0MHz (S2), 2.5MHz (S4), 5.0MHz (S6) | 45°(A1), 56.3°(A2), 63.4°(A3), 68.2° (A4), 71.6° (A5) | 13×13mm (B6), 14×14mm (B7), 10×16mm (B8) | Q9 (F2) |
| UFD-S□A□B□F□ | 0.5MHz (S1), 2.5MHz (S4), 5.0MHz (S6) | 45°(A1), 56.3°(A2), 63.4°(A3), 68.2° (A4), 71.6° (A5) | 16×16mm (B9), 18×18mm (B10), 20×20mm (B11) | Q9 (F2) |
View the complete
product specifications
