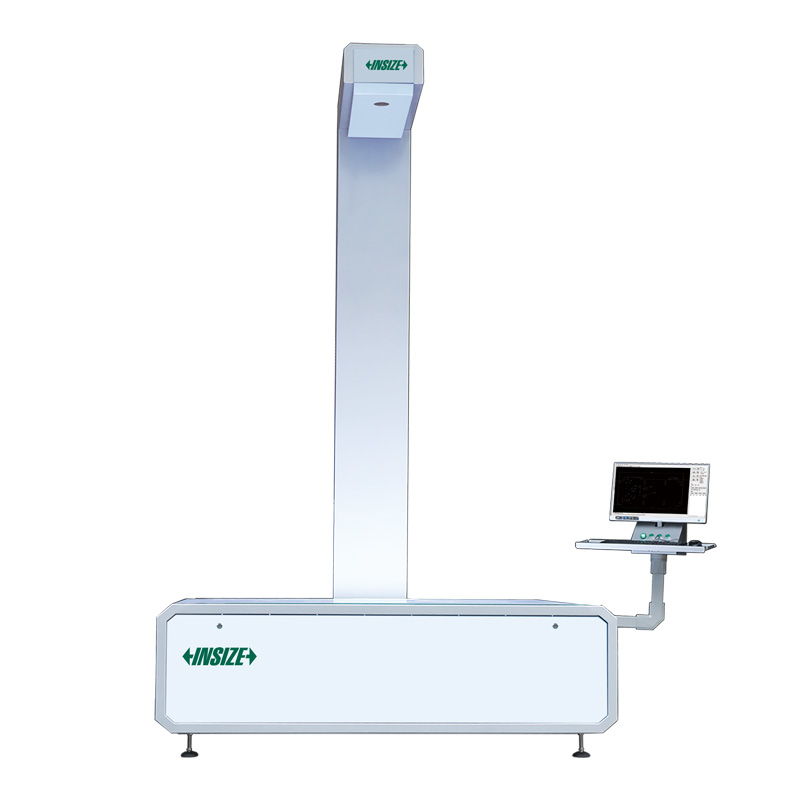

Sheet Metal Vision Measuring Systems
Code: PIM Series
Simply import the CAD drawings to complete the measurement and compare with the CAD drawings
Measurement time is only 0.1 second, data processing takes 20 seconds, and reports are automatically generated within 10 seconds
Supports stitching measurement and automated interface
No lead screws, guide rails, or similar components, eliminating wear issues and unaffected by vibration or oil contamination, suitable for workshop use
| Code | Maximum workpiece length | Maximum workpiece width | Maximum workpiece weight | Center measurement accuracy | Outer frame measurement accuracy |
|---|---|---|---|---|---|
| PIM-60 | 600mm | 400mm | 10kg | ±20μm | ±40μm |
| PIM-125 | 1250mm | 800mm | 100kg | ±40μm | ±80μm |
| PIM-160 | 1600mm | 1100mm | 100kg | ±50μm | ±100μm |

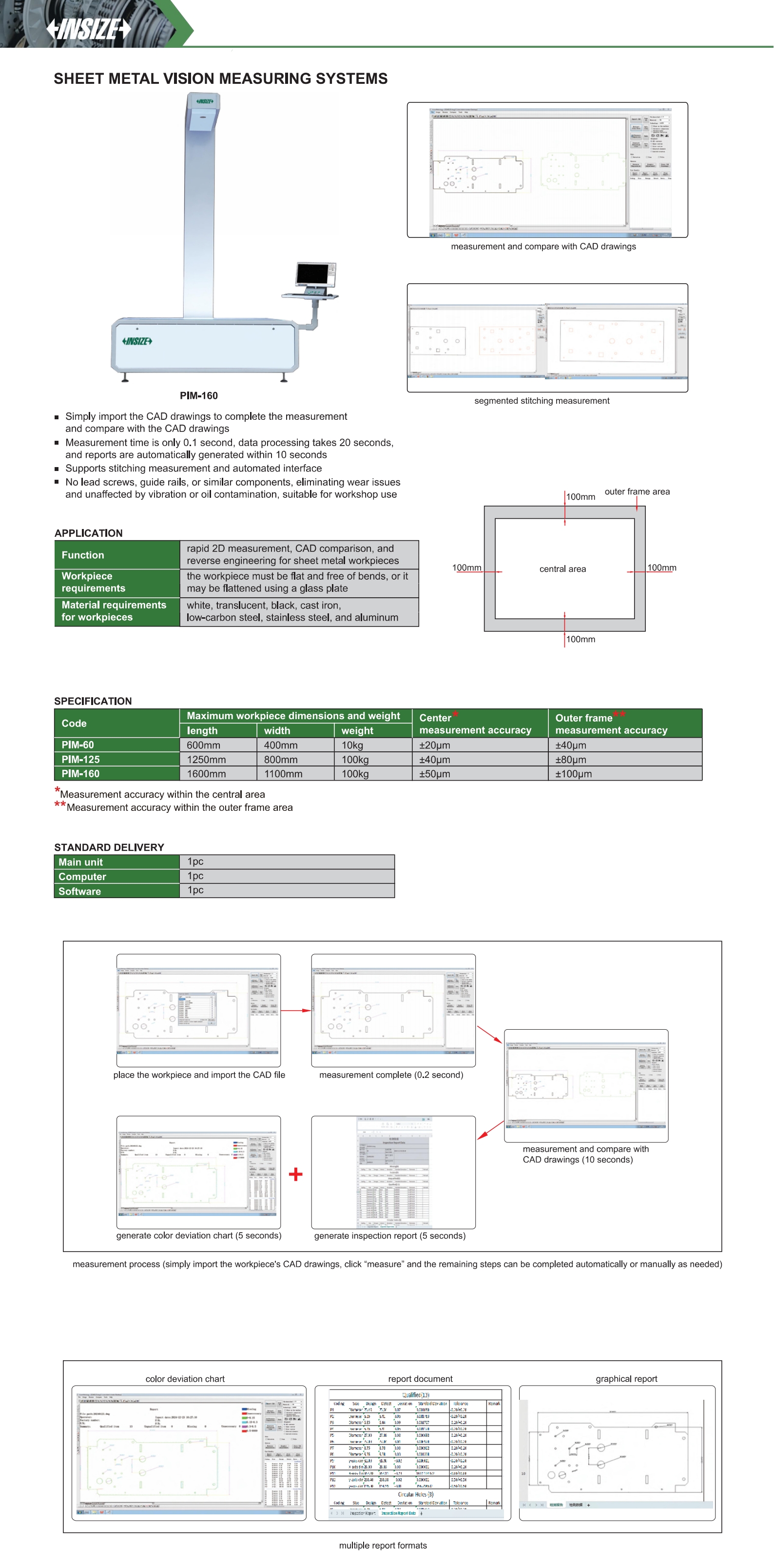

View the complete
