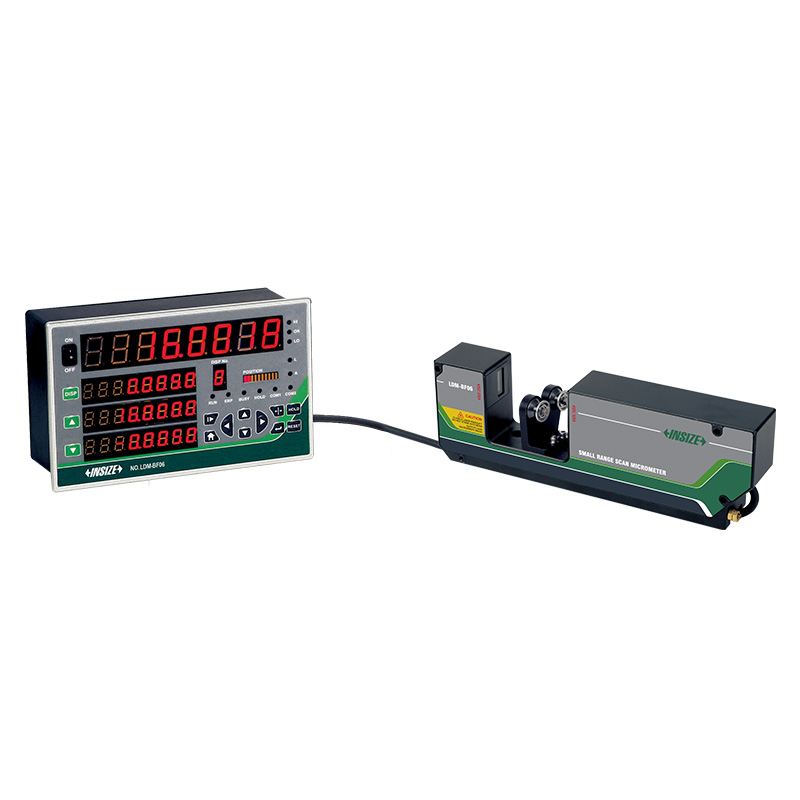

Small Range Scan Micrometers
Code: LDM-BF06/GC06
Measure outer diameter, ellipticity, run-out, maximum diameter of tools,etc.
Can be used for transparent or non transparent workpieces
Simultaneous measurement of 4 outer diameters
Tolerance measurement
Online or offline measurement
Connected with computer, PLC, control box
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| LDM-BF06 | 0.04~6mm | ±(0.3+10%D)μm | (0.1+5%D)μm |
| LDM-GC06 | 0.04~6mm | ±(0.5+10%D)μm | (0.1+5%D)μm |

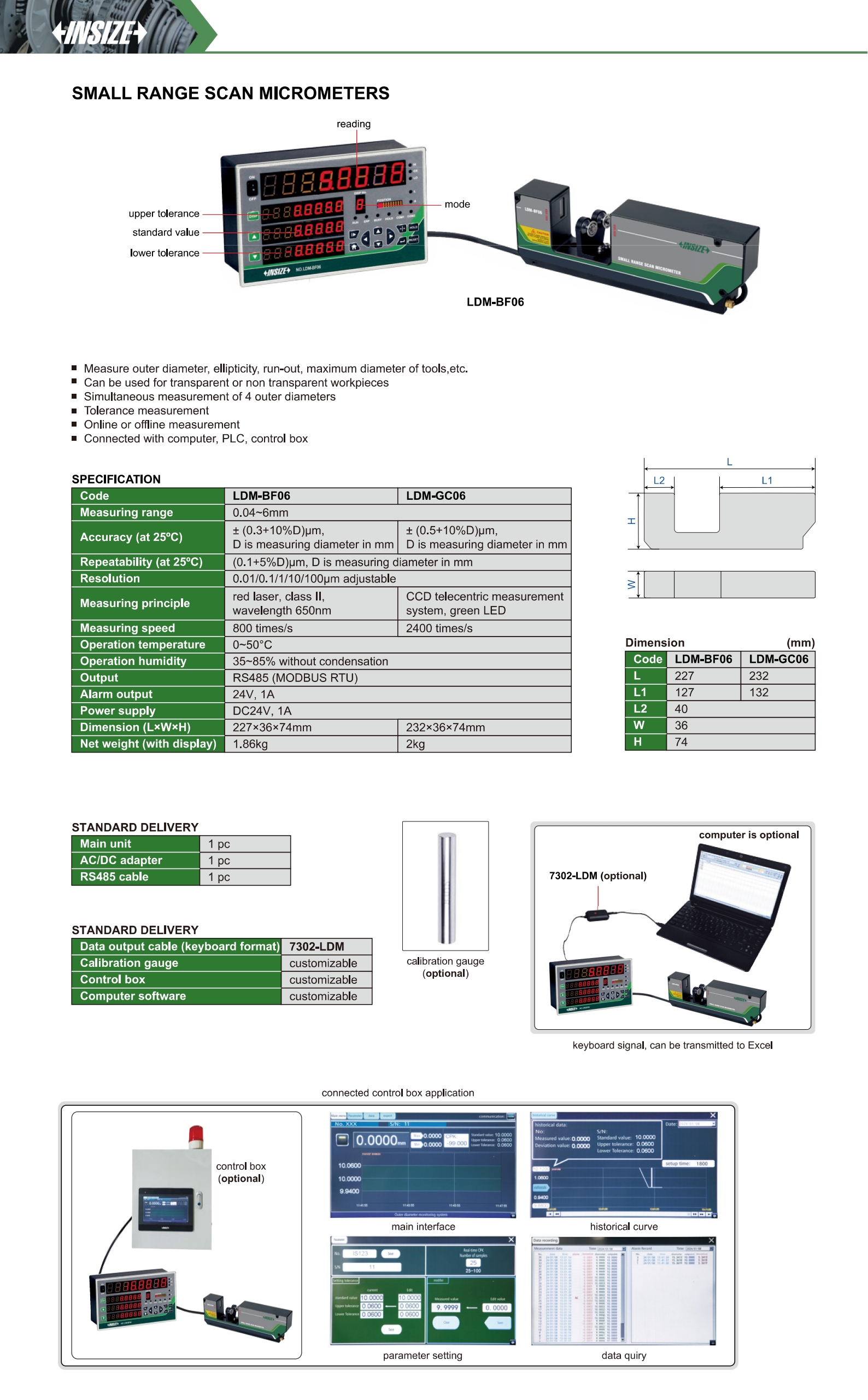

View the complete
product specifications
