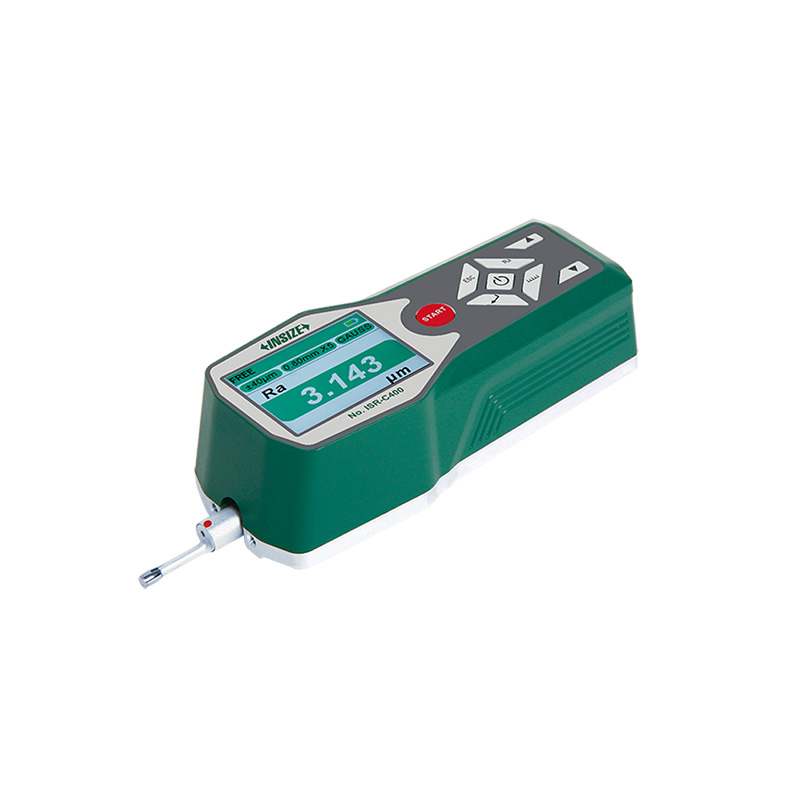

Roughness Tester For Automation
Code: ISR-C400
Communicate with PLC for automatic operation
Display 1, 3 or 4 groups of measurement parameters
Threshold alarm function
Selectable measurement standards ISO-4287, ISO-4288, ANSI B46.1, DIN-4768, JIS-B601, ISO-21290, ISO-13565, GB/T-13288
Automatic range change during measurement
| Code | Range | Measuring force | Stylus radius/angle | Data output |
|---|---|---|---|---|
| ISR-C400 | 320μm (-160μm~160μm) | 4mN | 5µm/90° | bluetooth， USB， RS232 |
