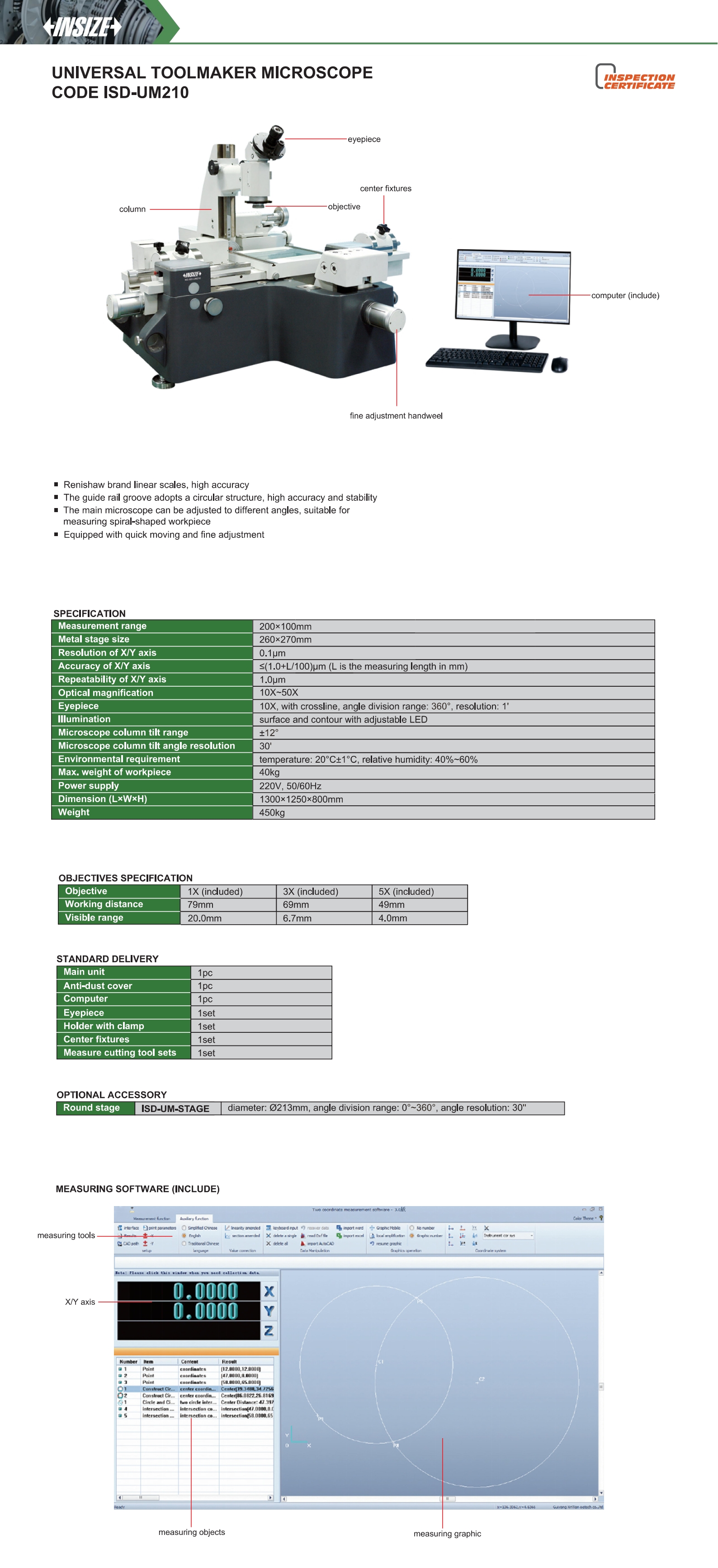

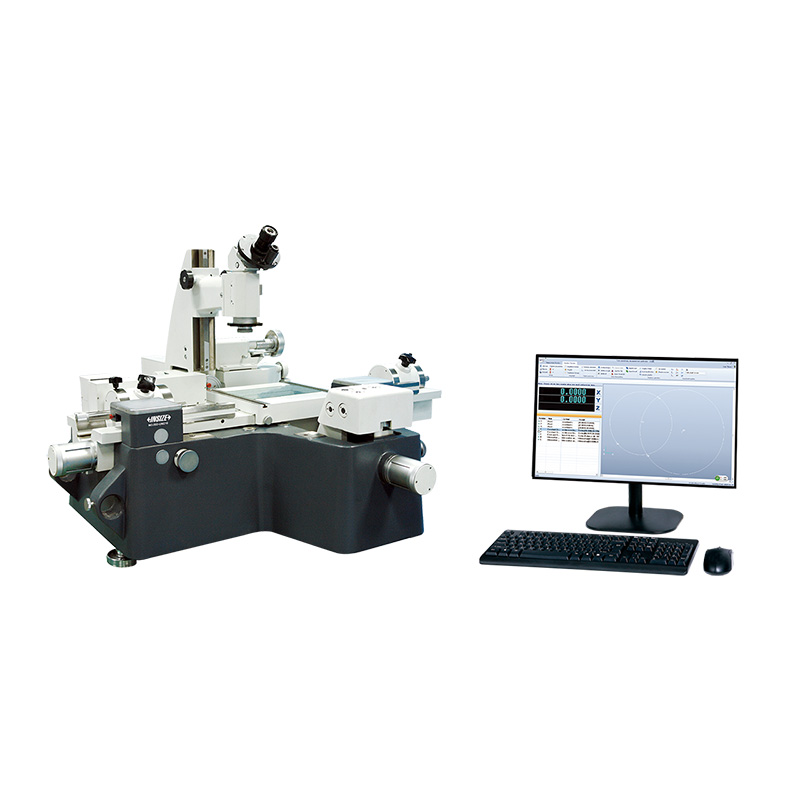

Universal Toolmaker Microscope
Code: ISD-UM210
Renishaw brand linear scales, high accuracy
The guide rail groove adopts a circular structure, high accuracy and stability
The main microscope can be adjusted to different angles, suitable for measuring spiral-shaped workpiece
Equipped with quick moving and fine adjustment
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-UM210 | 200×100mm | ≤(1.0+L/100)µm | 0.1µm | 1.0µm | 10X~50X | 40kg |
View the complete
product specifications
