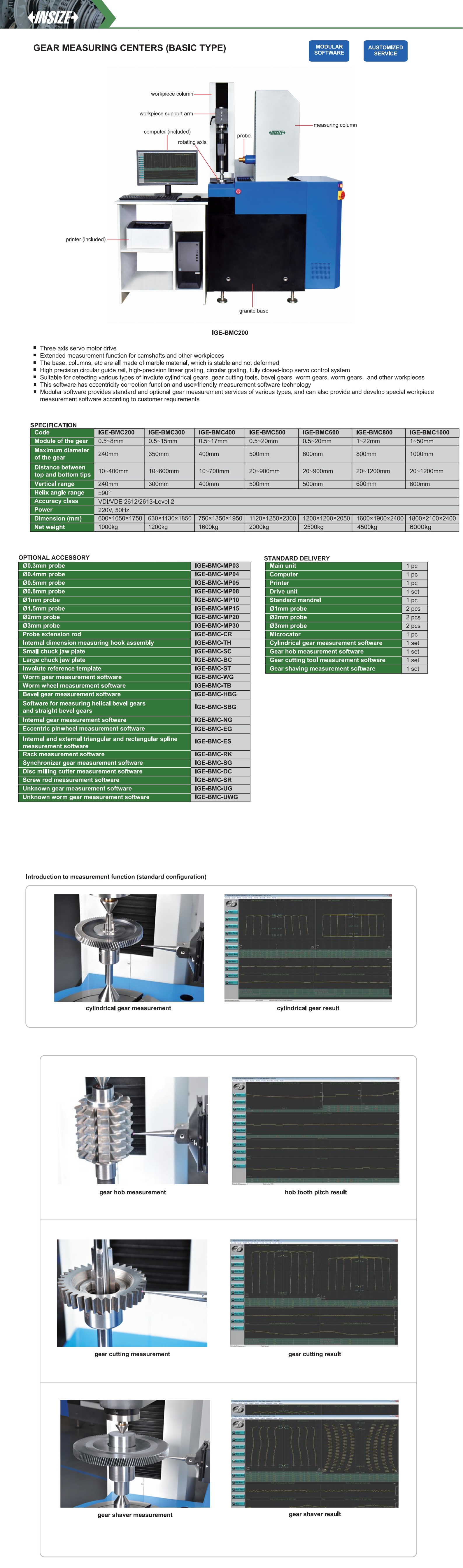

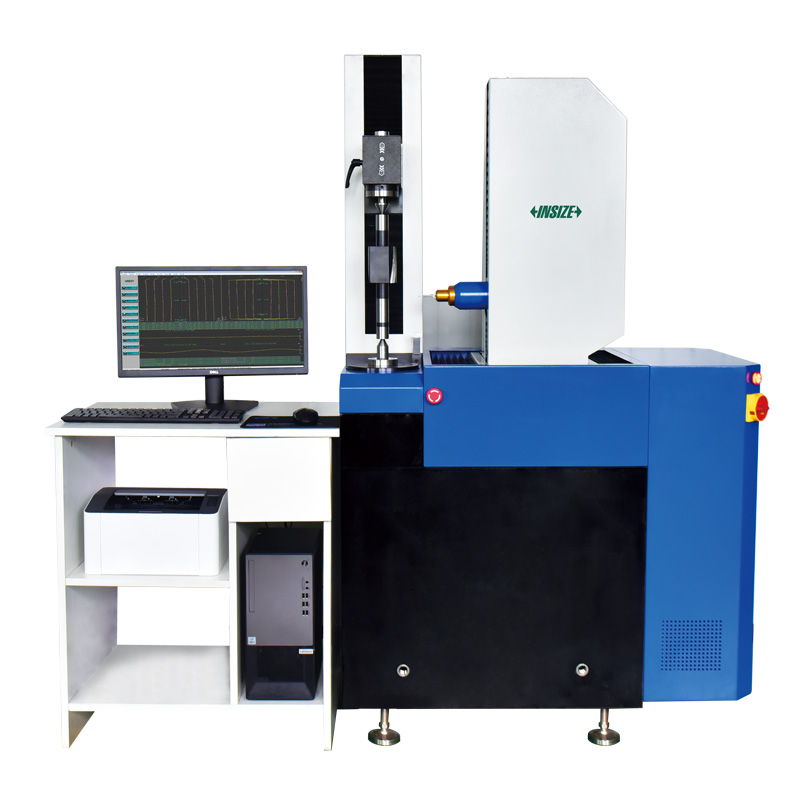

Gear Measuring Centers (Basic Type)
Code: IGE-BMC Series
Three axis servo motor drive
Extended measurement function for camshafts and other workpieces
The base, columns, etc are all made of marble material, which is stable and not deformed
High precision circular guide rail, high-precision linear grating, circular grating, fully closed-loop servo control system
Suitable for detecting various types of involute cylindrical gears, gear cutting tools, bevel gears, worm gears, worm gears, and other workpieces
This software has eccentricity correction function and user-friendly measurement software technology
Modular software provides standard and optional gear measurement services of various types, and can also provide and develop special workpiece measurement software according to customer requirements
| Code | Module of the gear | Maximum diameter of the gear | Vertical range |
|---|---|---|---|
| IGE-BMC200 | 0.5~8mm | 240mm | 240mm |
| IGE-BMC300 | 0.5~15mm | 350mm | 300mm |
| IGE-BMC400 | 0.5~17mm | 400mm | 400mm |
| IGE-BMC500 | 0.5~20mm | 500mm | 500mm |
| IGE-BMC600 | 0.5~20mm | 600mm | 500mm |
| IGE-BMC800 | 1~22mm | 800mm | 600mm |
| IGE-BMC1000 | 1~50mm | 1000mm | 600mm |
