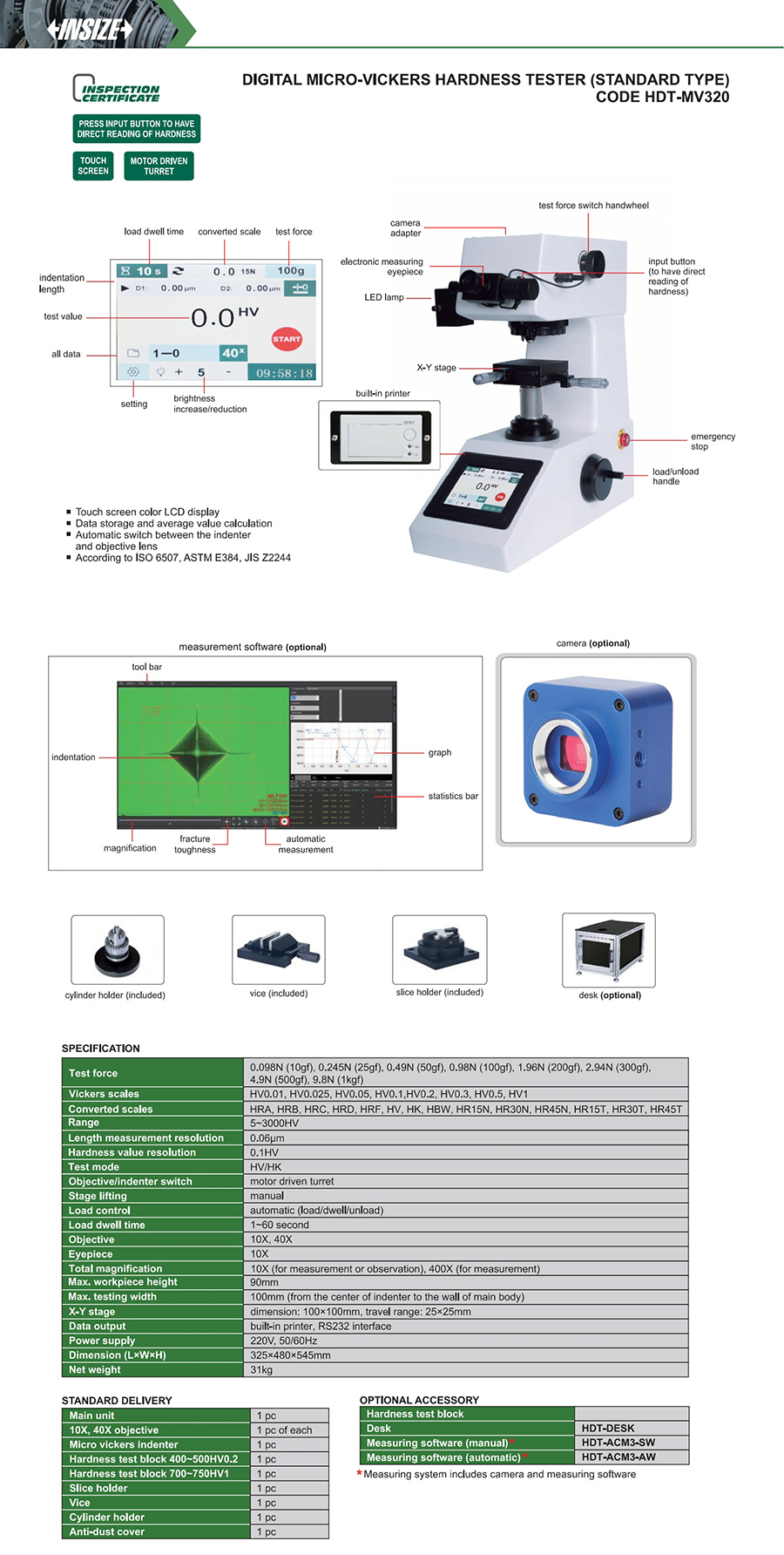

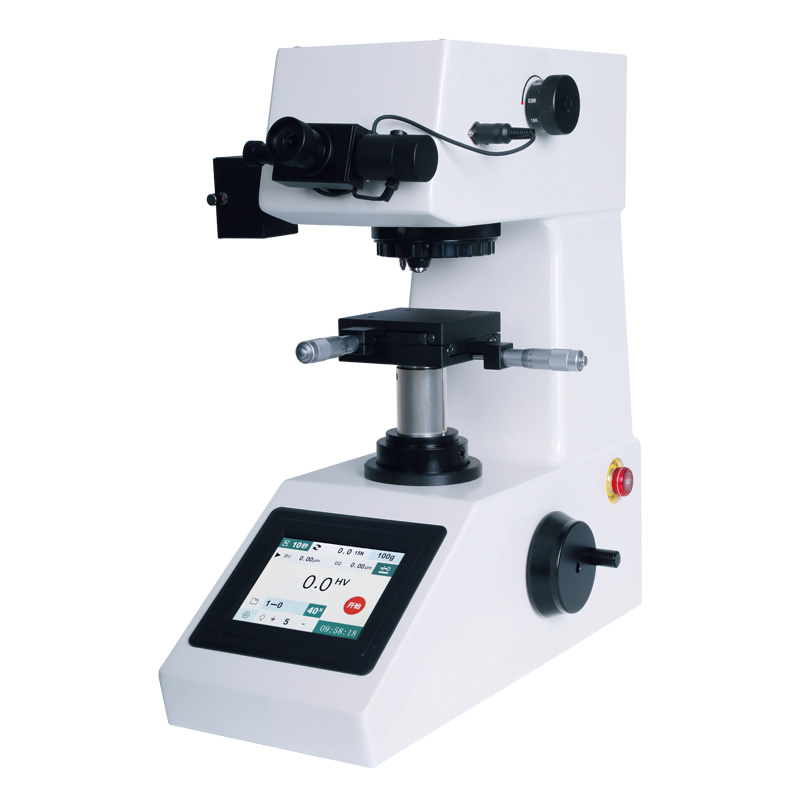

Digital Micro-Vickers Hardness Tester (Standard Type)
Code: HDT-MV320
Touch screen color LCD display
Data storage and average value calculation
Automatic switch between the indenter and objective lens
According to ISO 6507, ASTM E384, JIS Z2244
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-MV320 | automatic (load/dwell/unload) | 90mm | 100mm | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | 10X (for measurement or observation), 400X (for measurement) |
View the complete
product specifications
