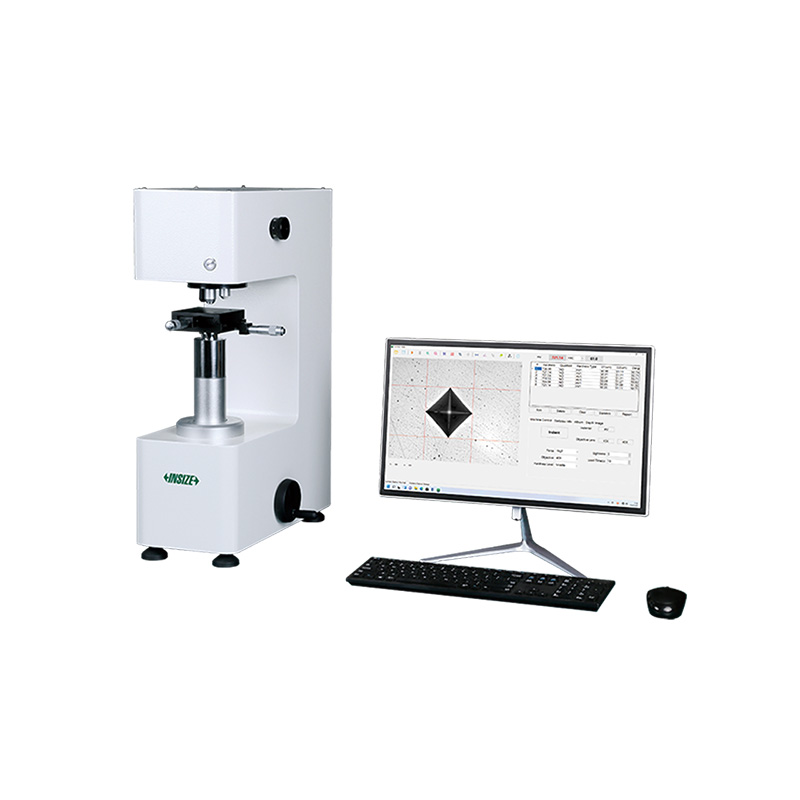

Micro-Vickers Hardness Tester (Software-Type)
Code: HDT-MV315
According to ISO 6507
Standard dedicated Vickers measurement software, which can control the machine to perform automatic turret rotation, automatic indentation, and automatic measurement, etc.
Built-in 5-megapixel high-definition CCD camera with compact optical path design for sharp imaging
Built-in LCD light source with high brightness and long lifespan
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-MV315 | automatic (load/dwell/unload) | 100mm | 170mm | HV0.01， HV0.025， HV0.05， HV0.1， HV0.2， HV0.3， HV0.5， HV1 | 100X (for measurement or observation)， 400X (for measurement) |

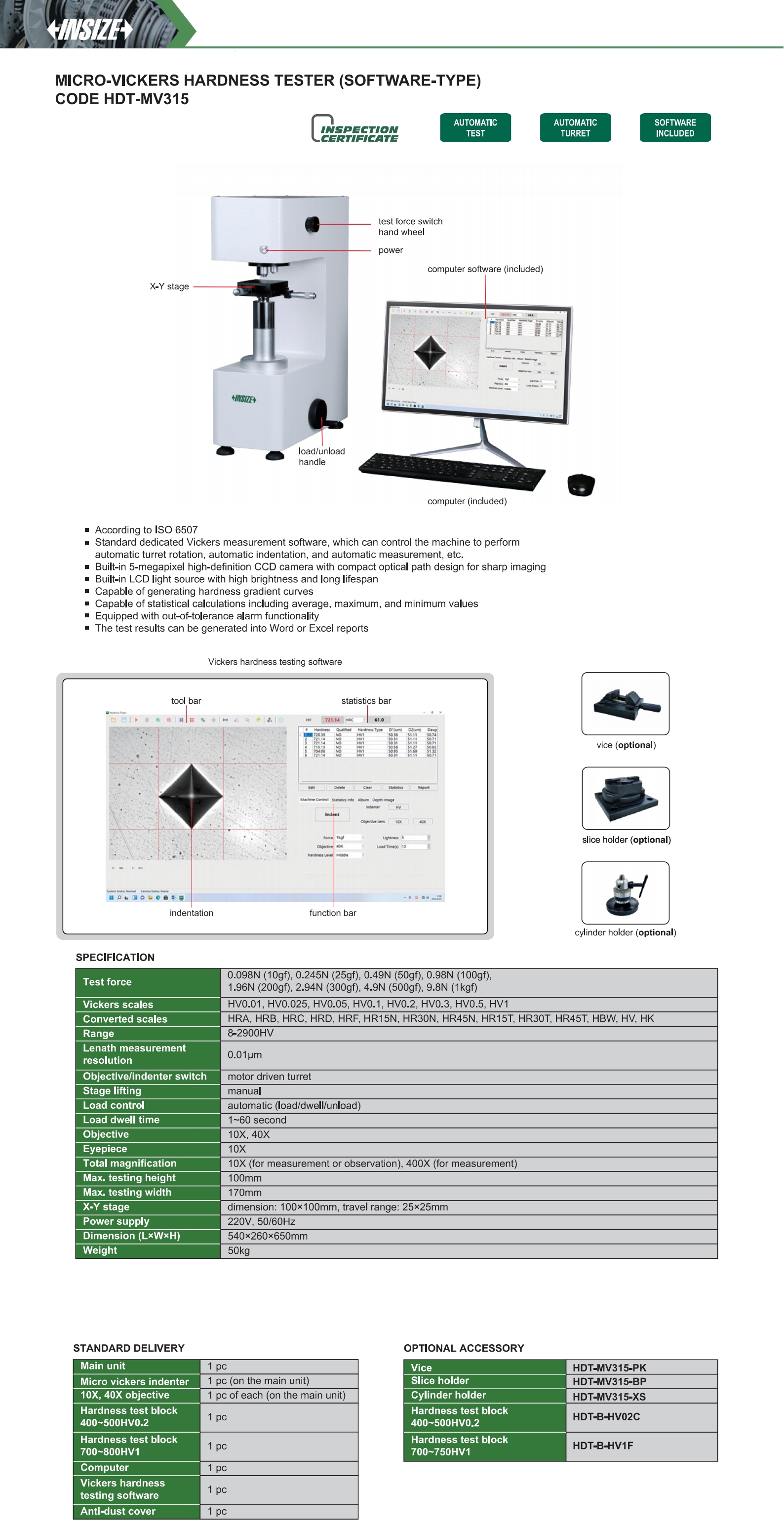

View the complete
