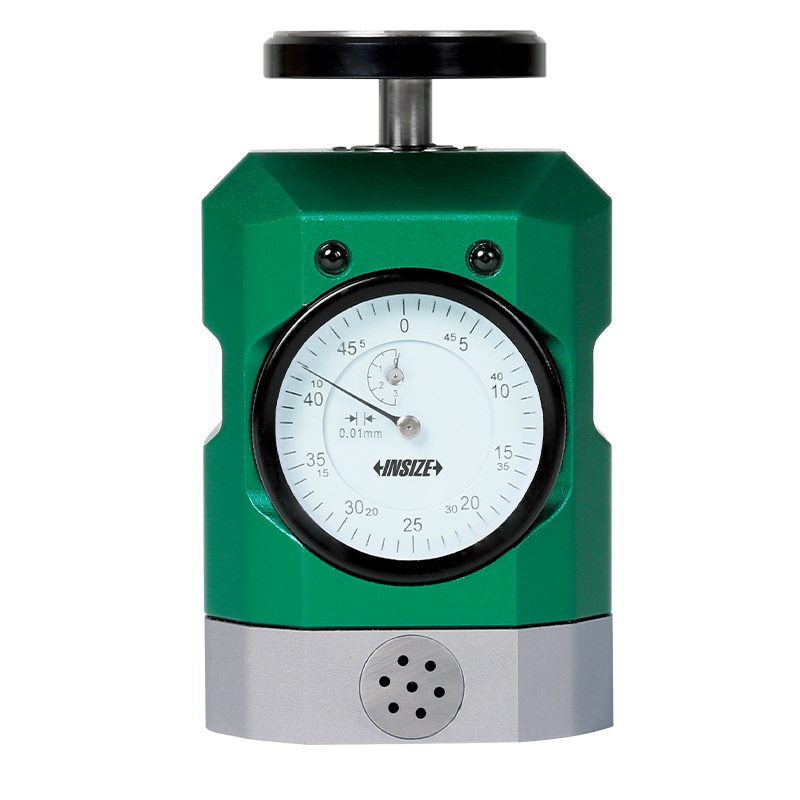

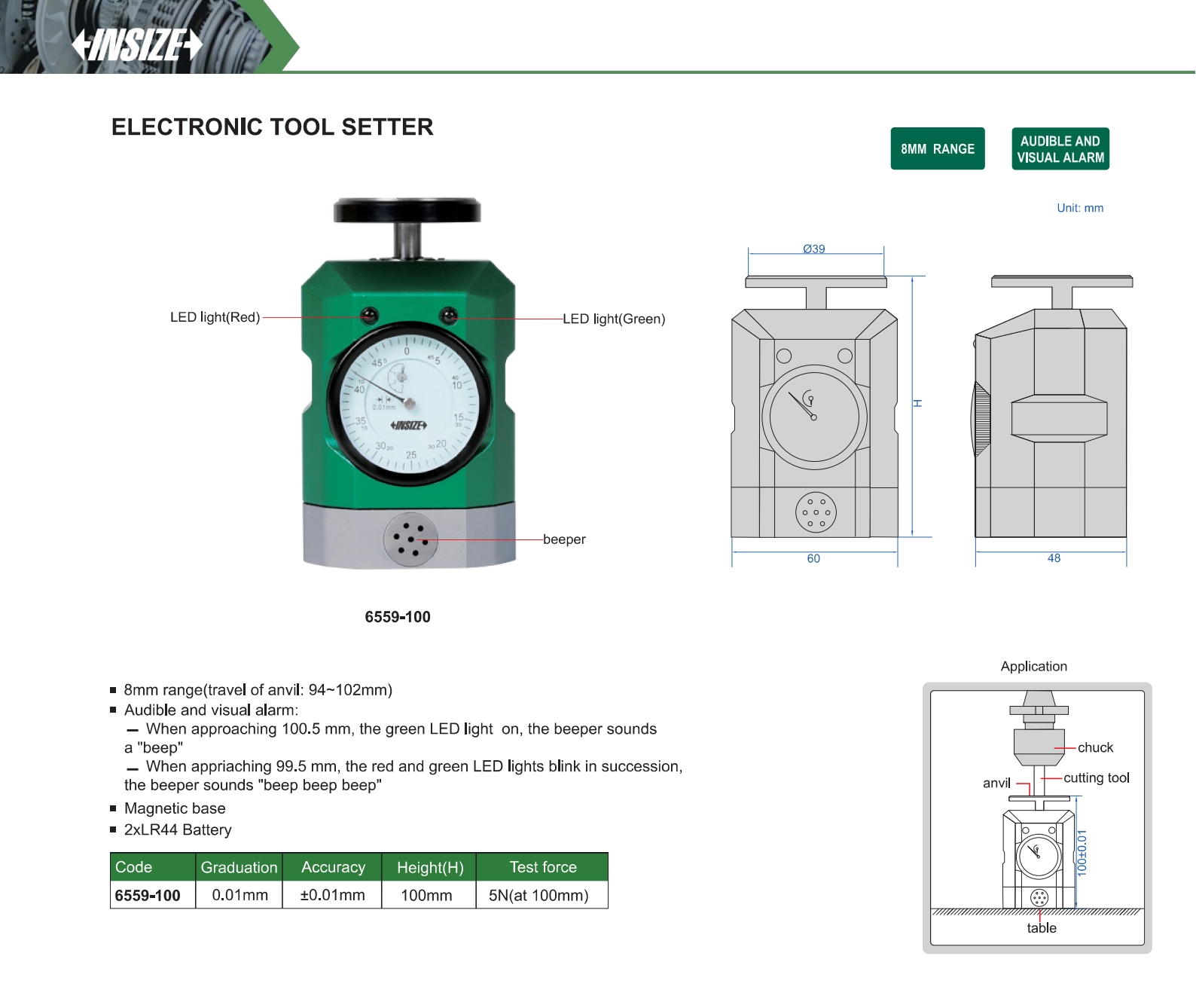

Electronic Tool Setter
Code: 6559-100
8mm range(travel of anvil: 94~102mm)
Audible and visual alarm: When approaching 100.5 mm, the green LED light on, the beeper sounds a "beep". When appriaching 99.5 mm, the red and green LED lights blink in succession, the beeper sounds "beep beep beep".
Magnetic base
| Code | Accuracy | Graduation | Test force | Height (H) |
|---|---|---|---|---|
| 6559-100 | ±0.01mm | 0.01mm | 5N (at 100mm) | 100mm |
