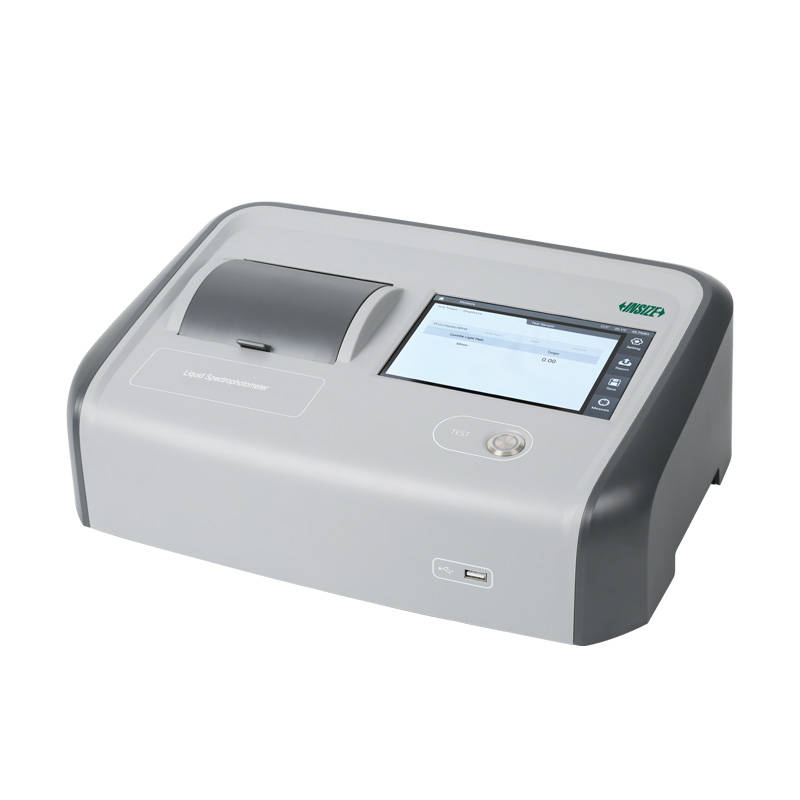

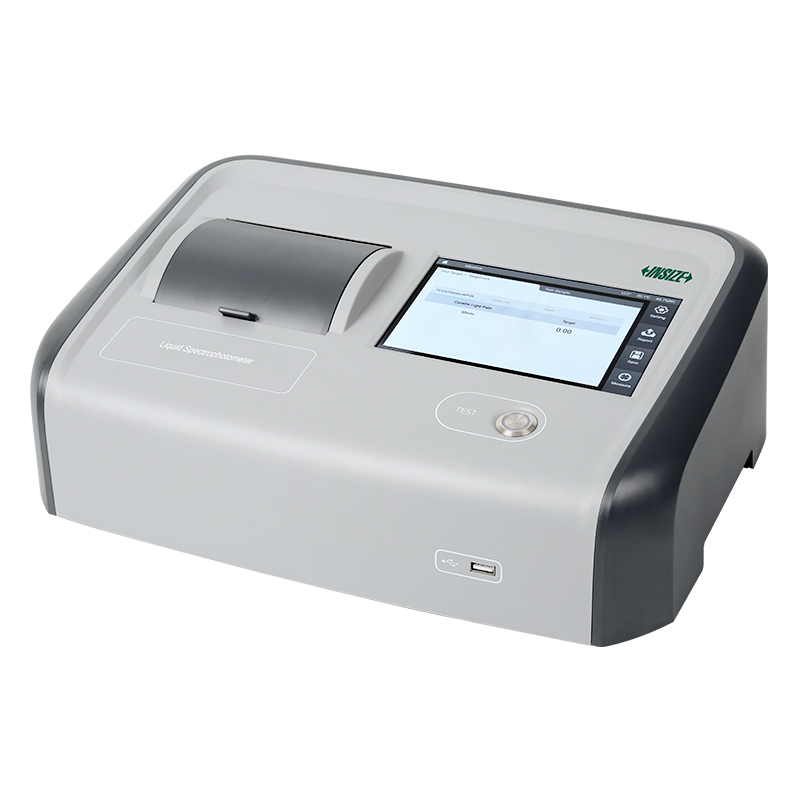

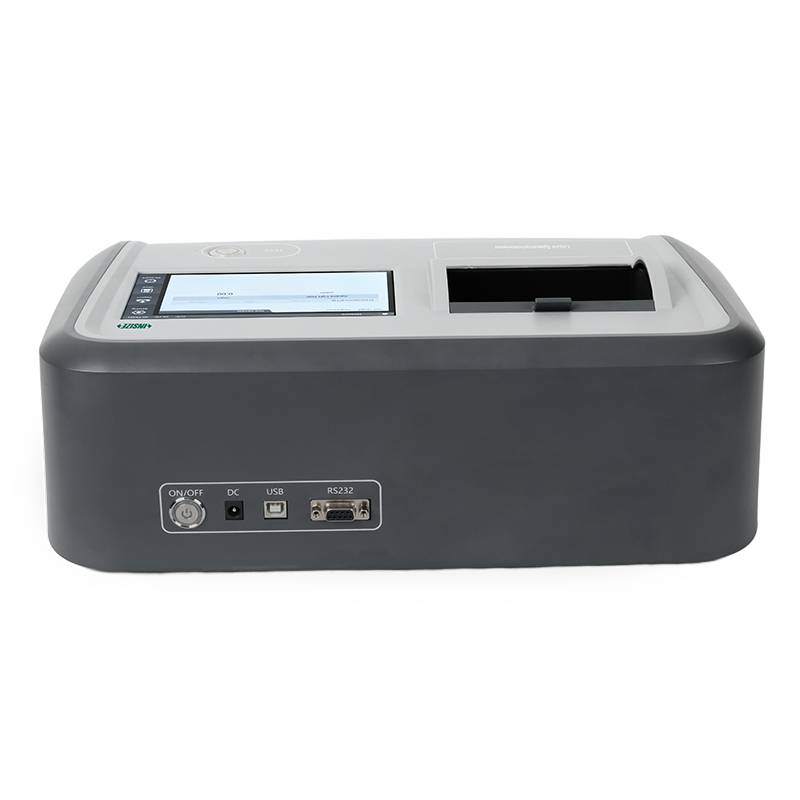

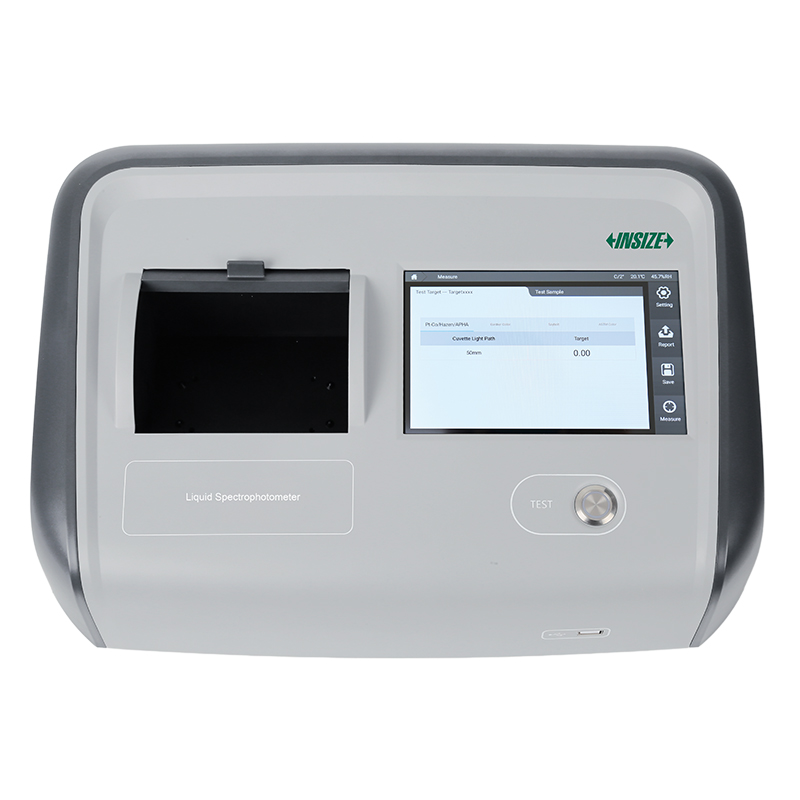

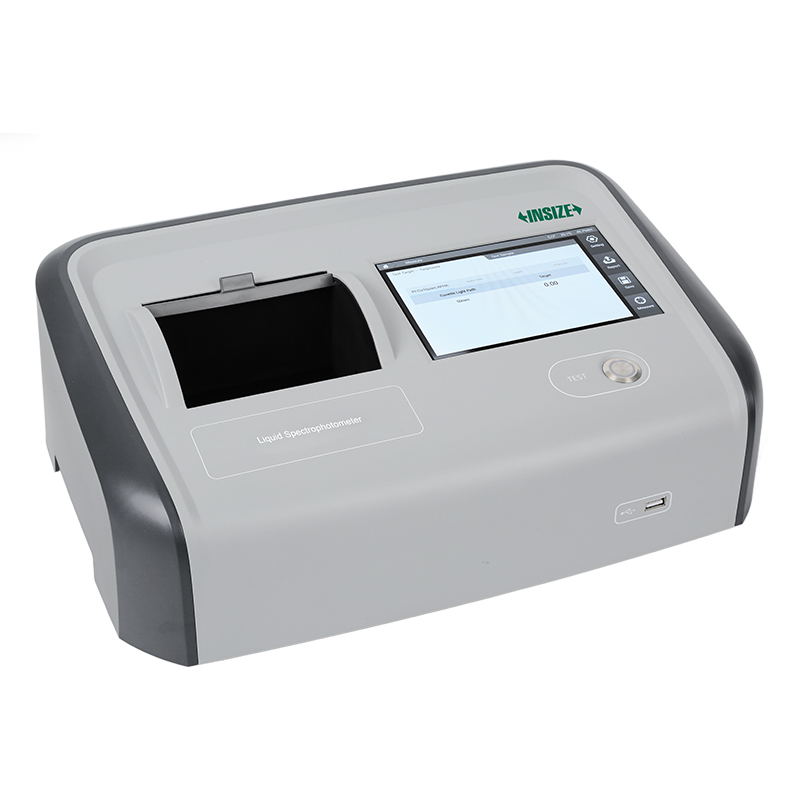

Benchtop Liquid Spectrophotometers
Code: 5709-LS01/LS02
According to CIE 15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722, ASTM D1209, ASTM D5386, ASTM D6045, ASTM D6166
Suitable for color measurement of liquid chemicals, coatings, pharmaceuticals, cosmetics, petroleum, industrial oil and other liquids
The measuring wavelength range is extended to 360 nm~780 nm
More than 30 color indicators, including pt-co, Gardner, Saybolt, ChP, USP, EP
7-inch capacitive touch screen with 180° rotatable display
Supports online software update and addition of measurement indicators
The minimum liquid addition is reduced to 1ml
Intelligent zero calibration ensures accurate measurement
Supports stand-alone testing or online testing via software
Can store more than 100,000 pieces of data, PDF data can be exported via USB flash drive
| Code | Repeatability | Wavelength range | Inter-instrument error | Reflectance range |
|---|---|---|---|---|
| 5709-LS01 | transmittance: standard deviation ≤0.08%, colorimetric value: standard deviation ΔE*ab≤0.015, colorimetric extreme value ≤0.04 | 360nm~780nm | ΔE*ab<0.25 | 0~200% |
| 5709-LS02 | transmittance: standard deviation ≤0.08%, colorimetric value: standard deviation ΔE*ab≤0.01, colorimetric extreme value ≤0.03 | 360nm~780nm | ΔE*ab<0.2 | 0~200% |

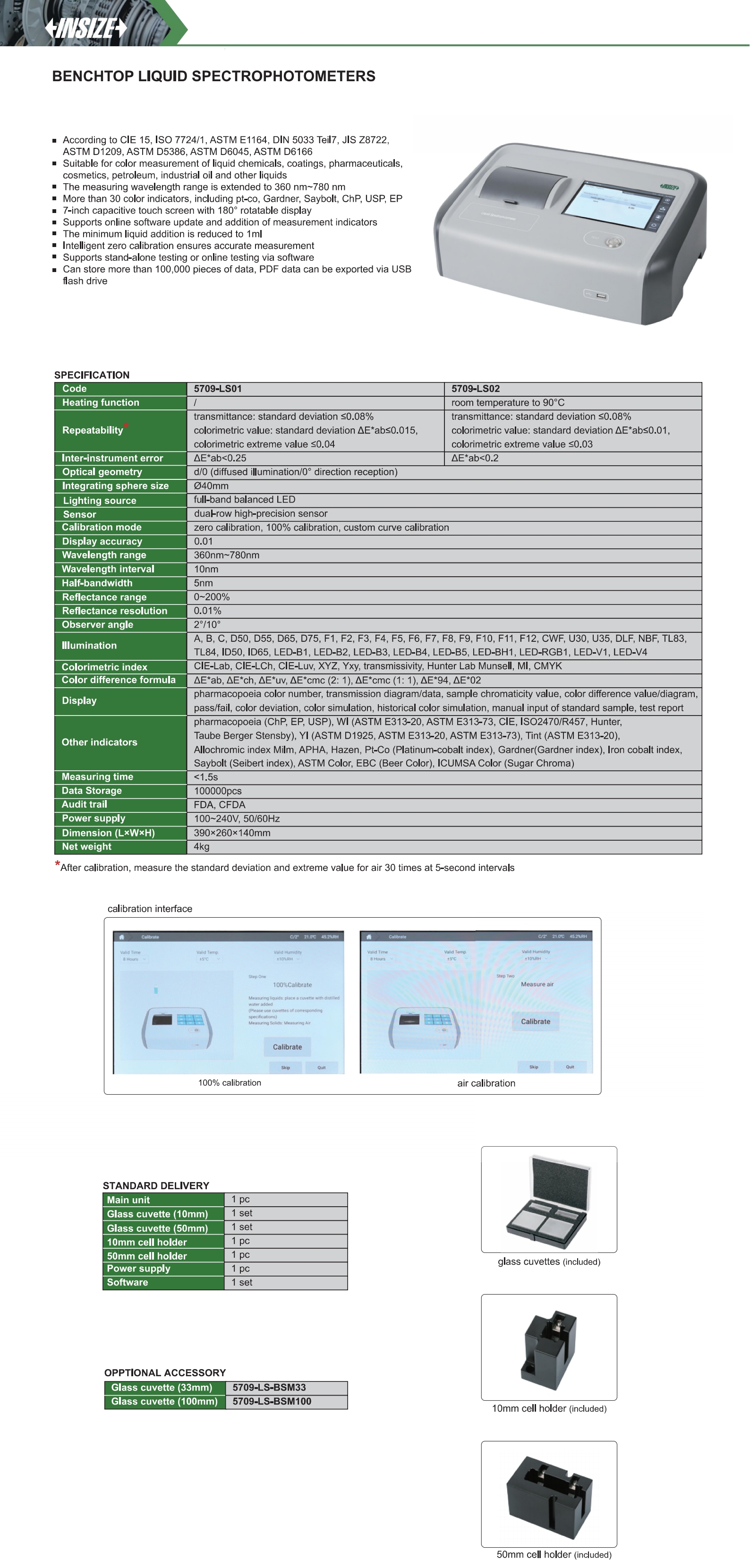

View the complete
product specifications
