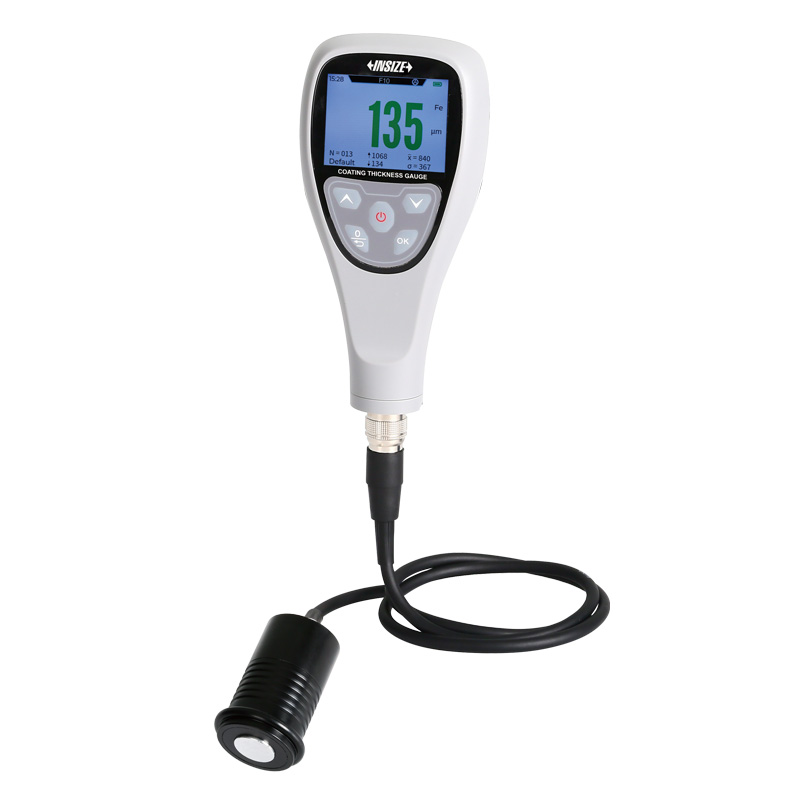

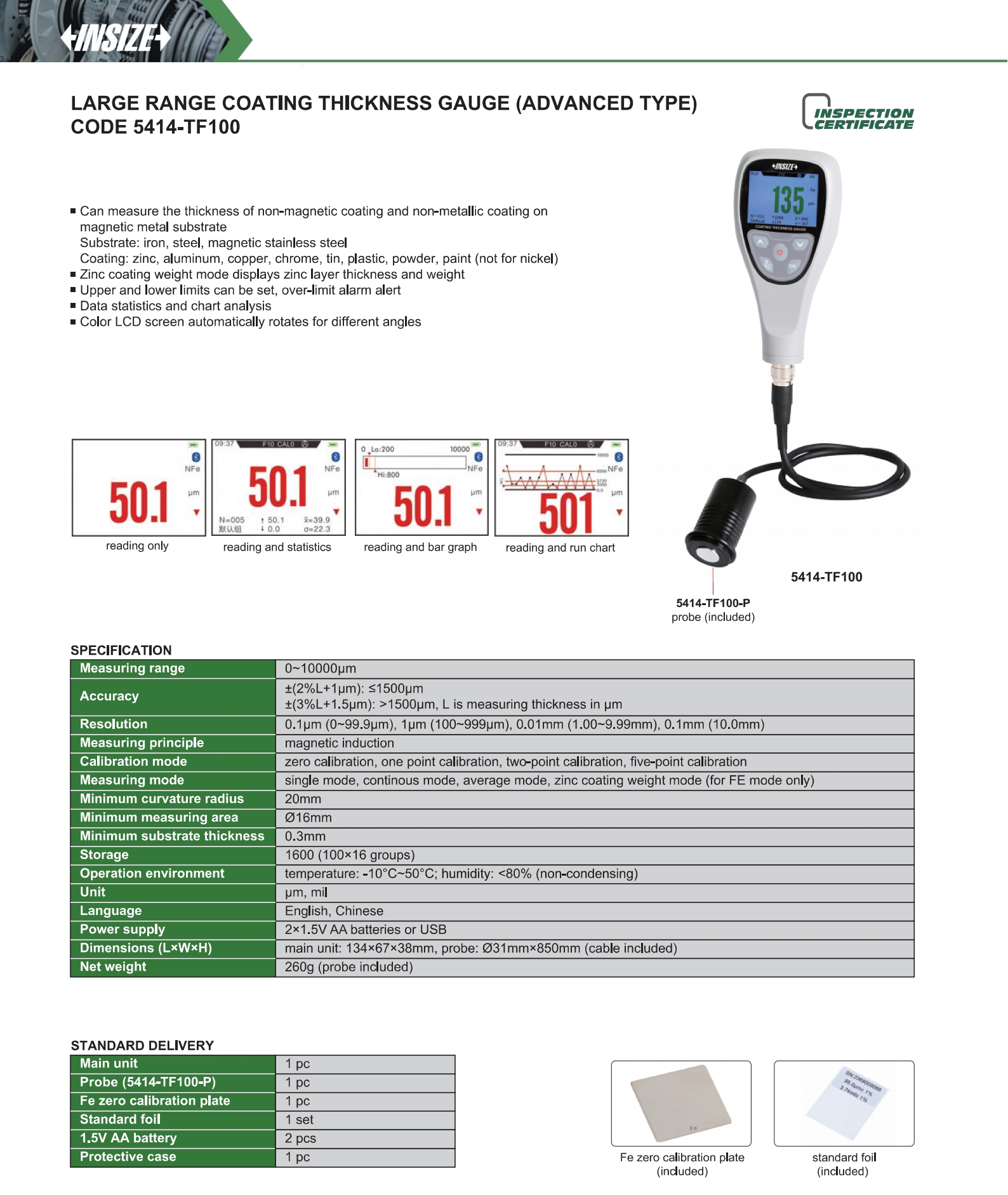

Large Range Coating Thickness Gauge (Advanced Type)
Code: 5414-TF100
Zinc coating weight mode displays zinc layer thickness and weight
Upper and lower limits can be set, over-limit alarm alert
Data statistics and chart analysis
Color LCD screen automatically rotates for different angles
| Code | Range | Accuracy | Resolution | Data transmission |
|---|---|---|---|---|
| 5414-TF100 | 0~10000µm | ±(2%L+1µm): ≤1500µm, ±(3%L+1.5µm): >1500µm | 0.1μm (0~99.9μm), 1μm (100~999μm), 0.01mm (1.00~9.99mm), 0.1mm (10.0mm) | no |
