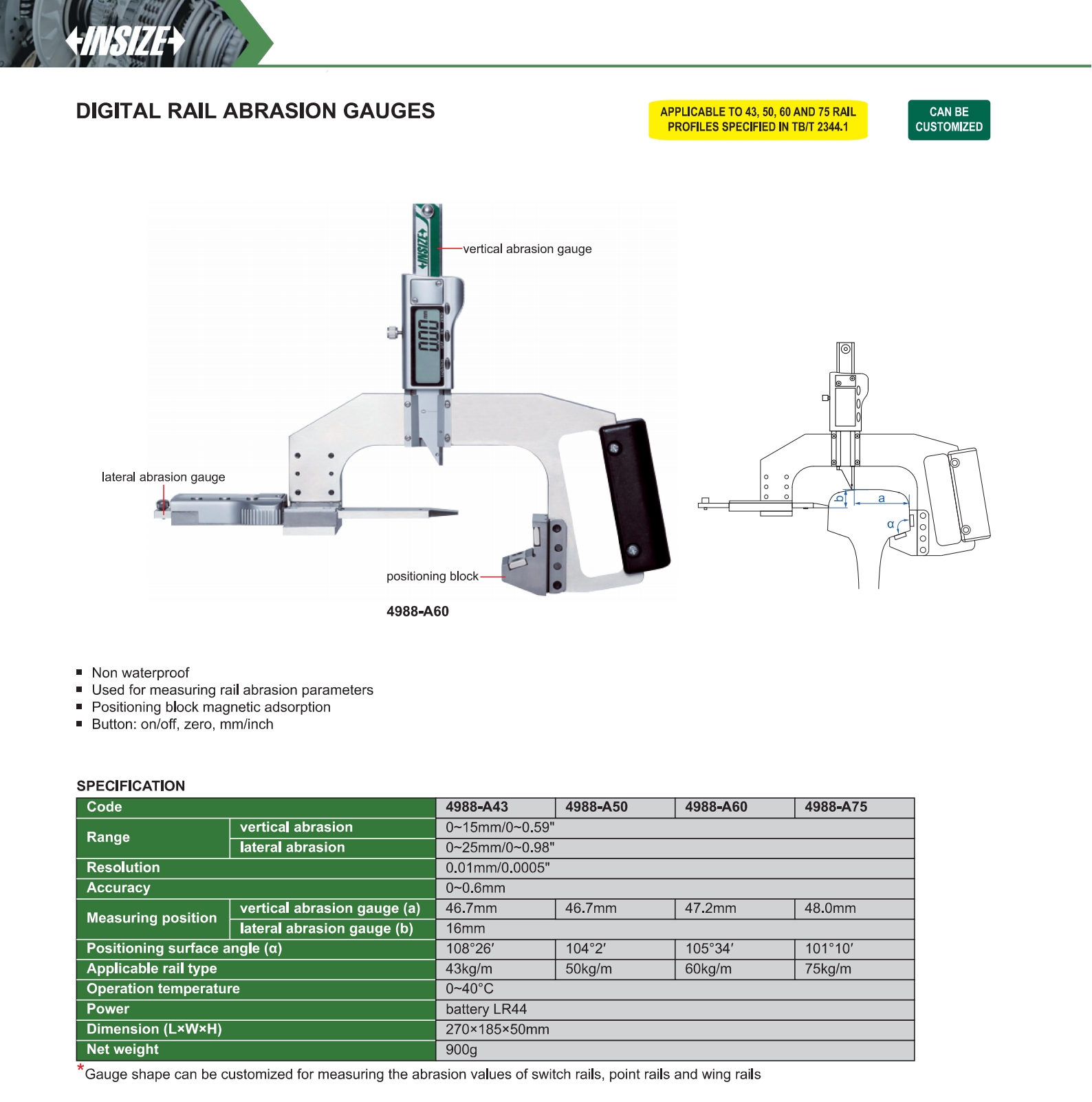

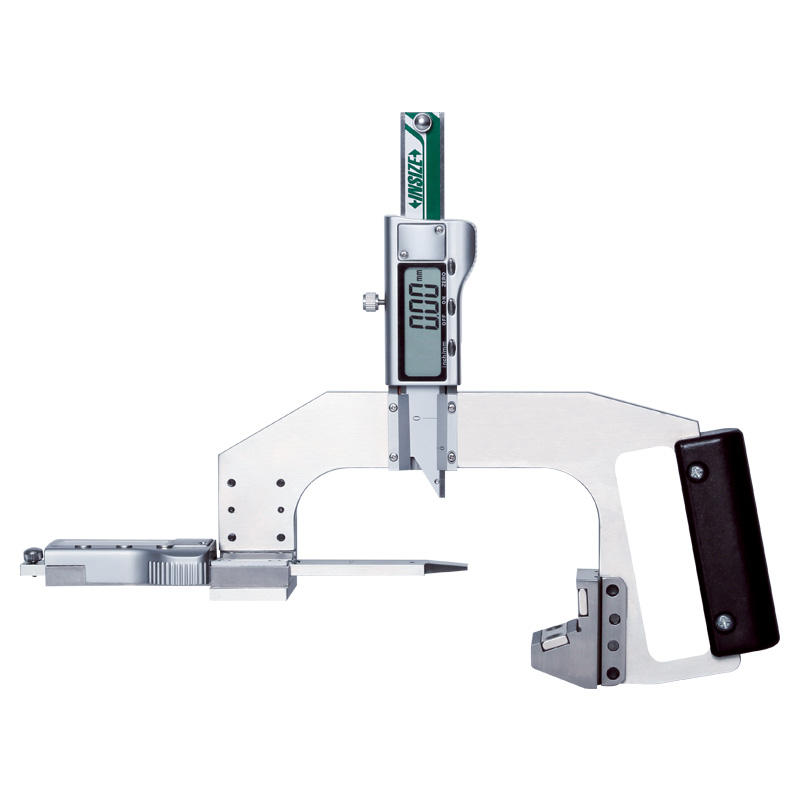

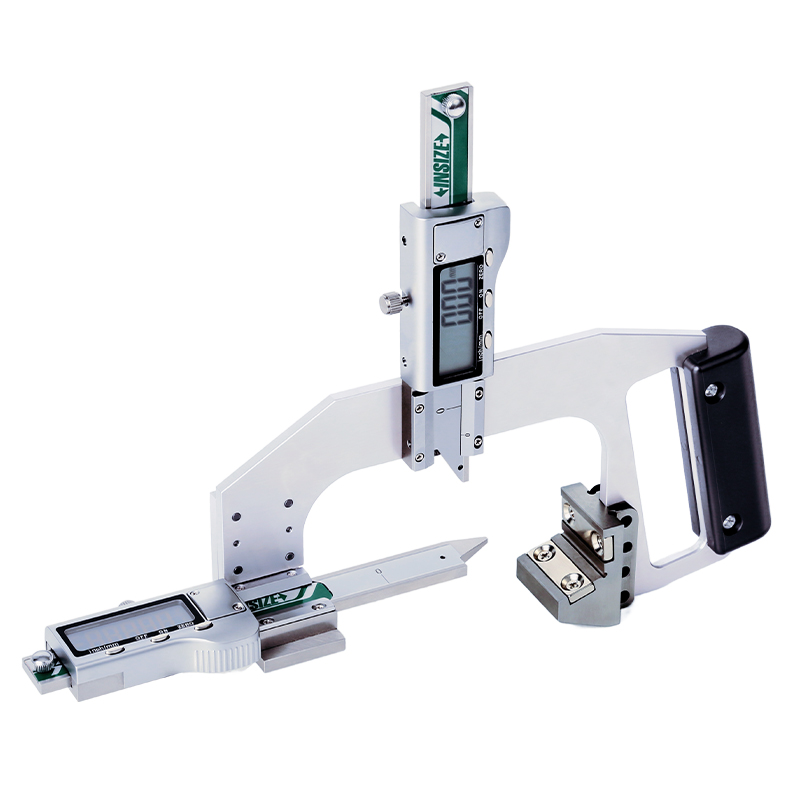

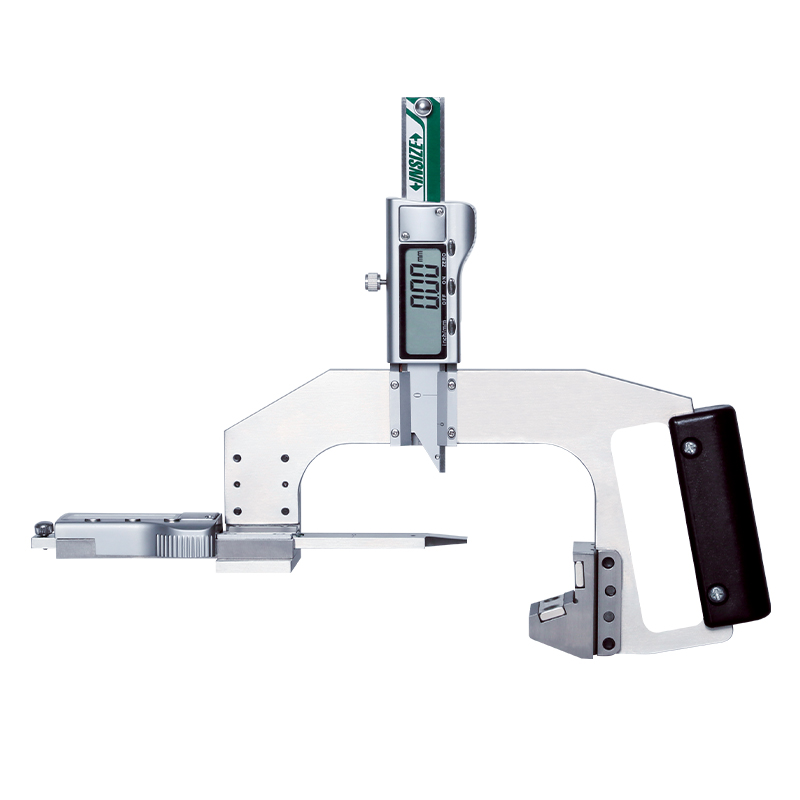

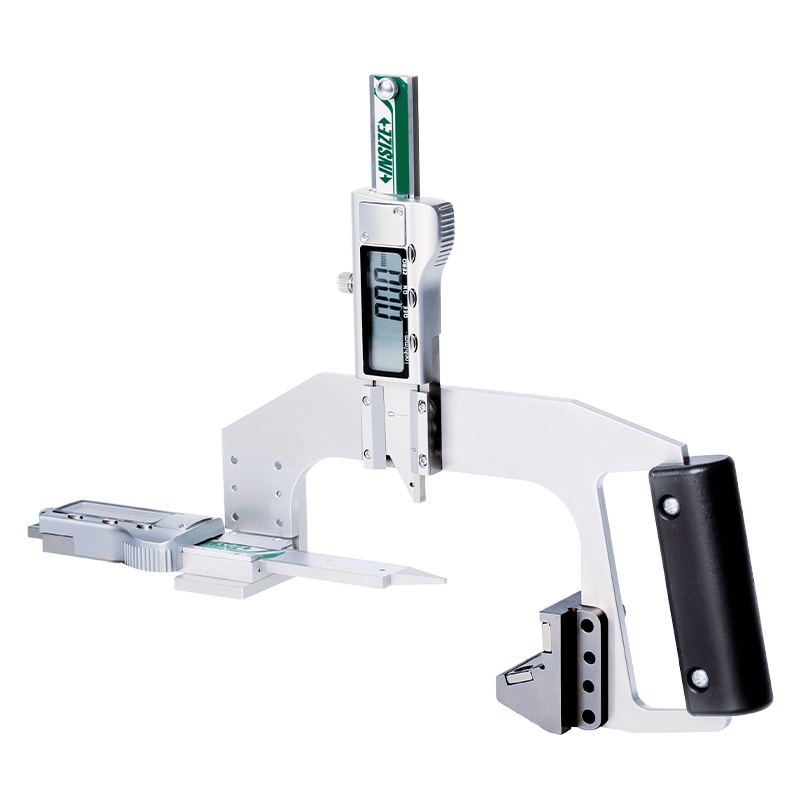

Digital Rail Abrasion Gauges
Code: 4988
Non waterproof
Used for measuring rail abrasion parameters
Positioning block magnetic adsorption
Button: on/off, zero, mm/inch
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 4988-A43 | vertical abrasion: 0~15mm/0~0.59", lateral abrasion: 0~25mm/0~0.98" | 0~0.6mm | 0.01mm/0.0005" |
| 4988-A50 | vertical abrasion: 0~15mm/0~0.59", lateral abrasion: 0~25mm/0~0.98" | 0~0.6mm | 0.01mm/0.0005" |
| 4988-A60 | vertical abrasion: 0~15mm/0~0.59", lateral abrasion: 0~25mm/0~0.98" | 0~0.6mm | 0.01mm/0.0005" |
| 4988-A75 | vertical abrasion: 0~15mm/0~0.59", lateral abrasion: 0~25mm/0~0.98" | 0~0.6mm | 0.01mm/0.0005" |
