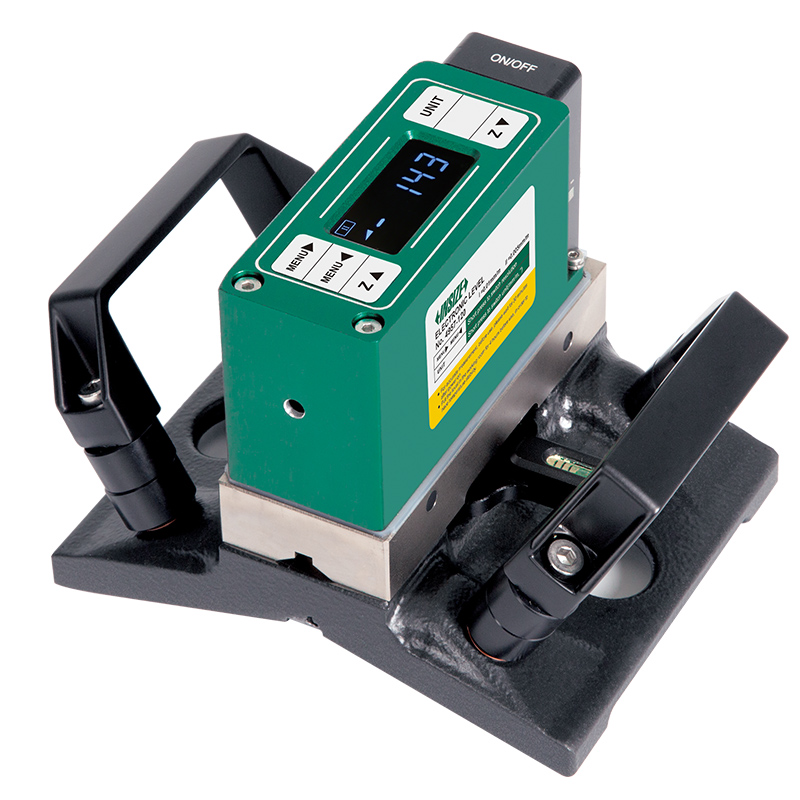

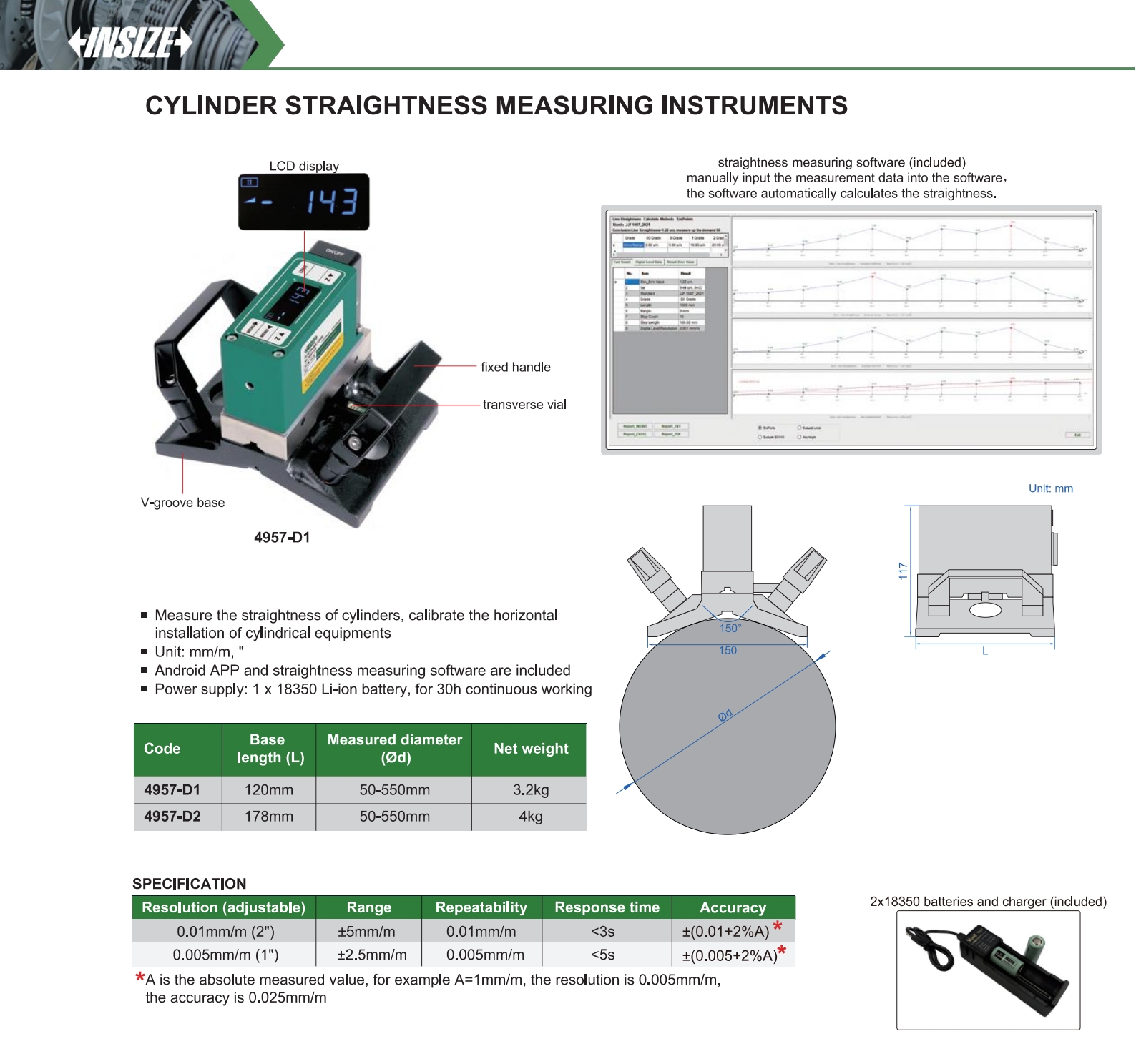

Cylinder Straightness Measuring Instruments
Code: 4957
Measure the straightness of cylinders, calibrate the horizontal installation of cylindrical equipments
Android APP and straightness measuring software are included
Power supply: 1 x 18350 Li-ion battery, for 30h continuous working
| Code | Range | Accuracy | Resolution | Repeatability |
|---|---|---|---|---|
| 4957-D1 | ±5mm/m | ±(0.01+2%A) | 0.01mm/m (2") | 0.01mm/m |
| 4957-D1 | ±2.5mm/m | ±(0.005+2%A) | 0.005mm/m (1") | 0.005mm/m |
| 4957-D2 | ±5mm/m | ±(0.01+2%A) | 0.01mm/m (2") | 0.01mm/m |
| 4957-D2 | ±2.5mm/m | ±(0.005+2%A) | 0.005mm/m (1") | 0.005mm/m |
