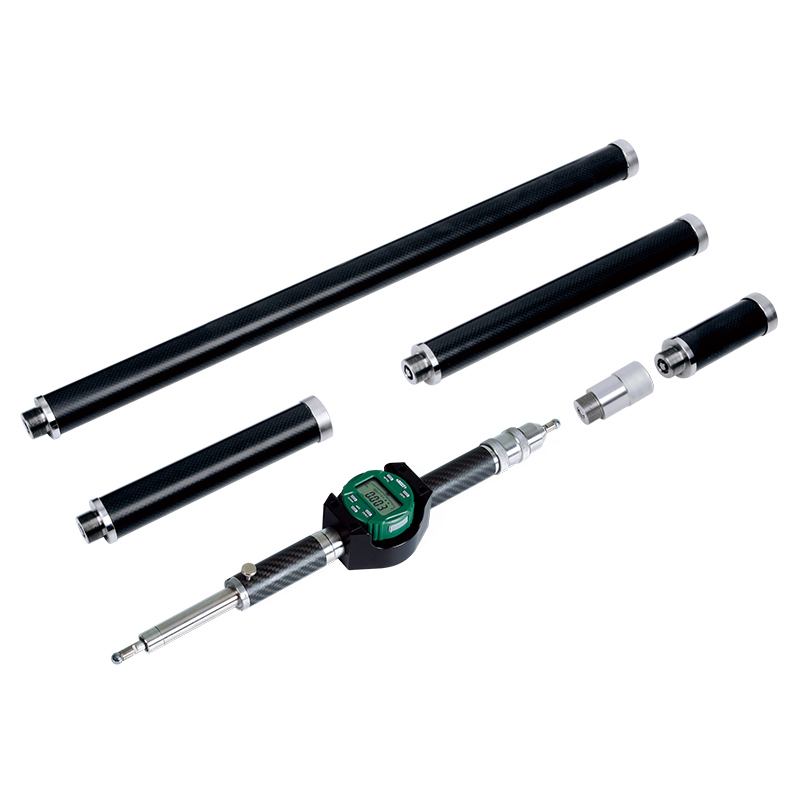

Carbon Fiber Bore Gauges With Interchangeable Points
Code: 3526
Carbon fiber extension rods, light weight, not easy to deform, low thermal expansion
Data output
Button function: on/off, zero, tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 3526-1000 | 430-1030mm | ±6µm | ±3µm |
| 3526-1500 | 430-1530mm | ±6µm | ±3µm |
| 3526-2000 | 430-2030mm | ±6µm | ±3µm |
| 3526-2400 | 430-2430mm | ±6µm | ±3µm |
| 3526-3400 | 430-3430mm | ±6µm | ±3µm |
| 3526-6400 | 430-6430mm | ±6µm | ±3µm |

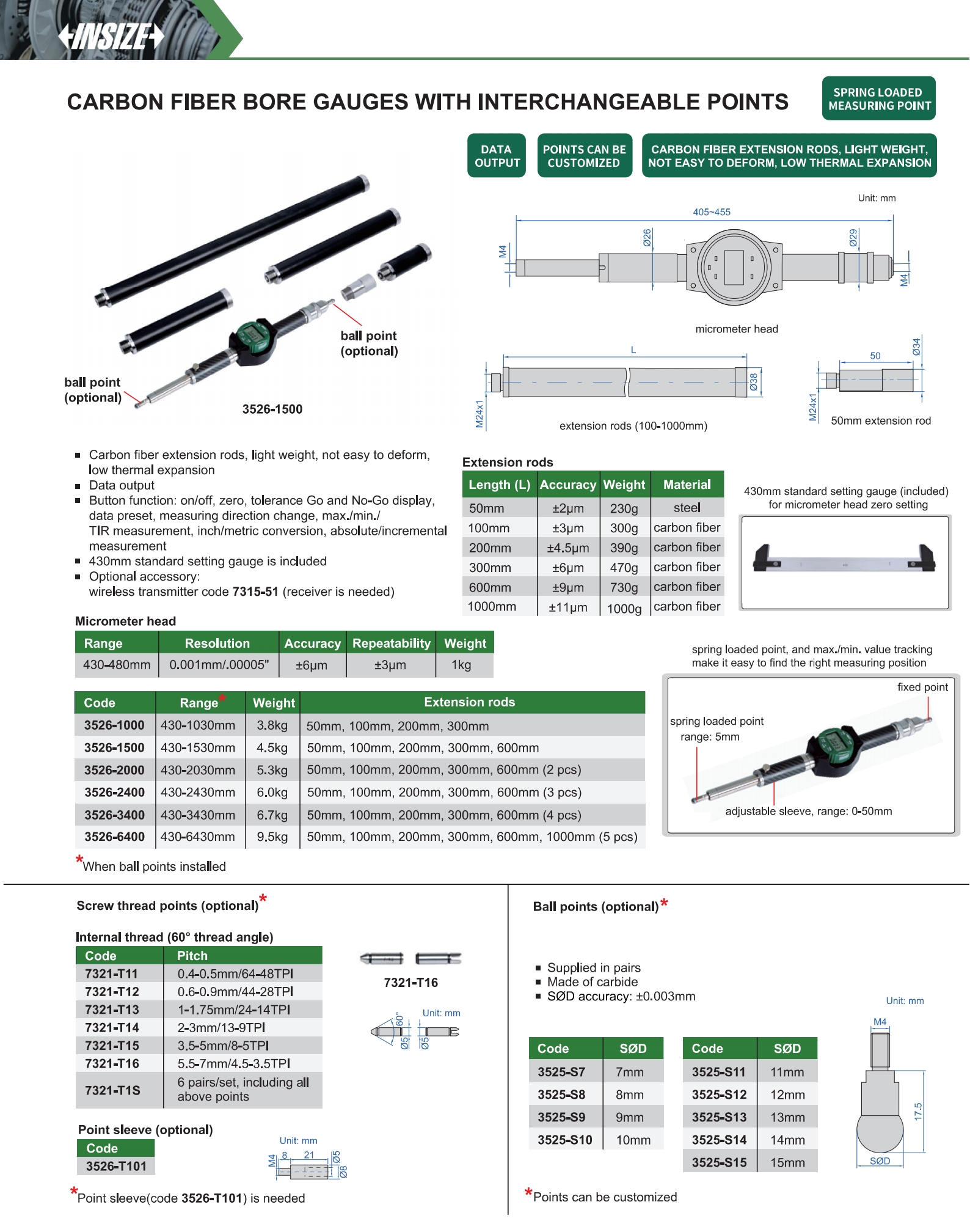

View the complete
product specifications
