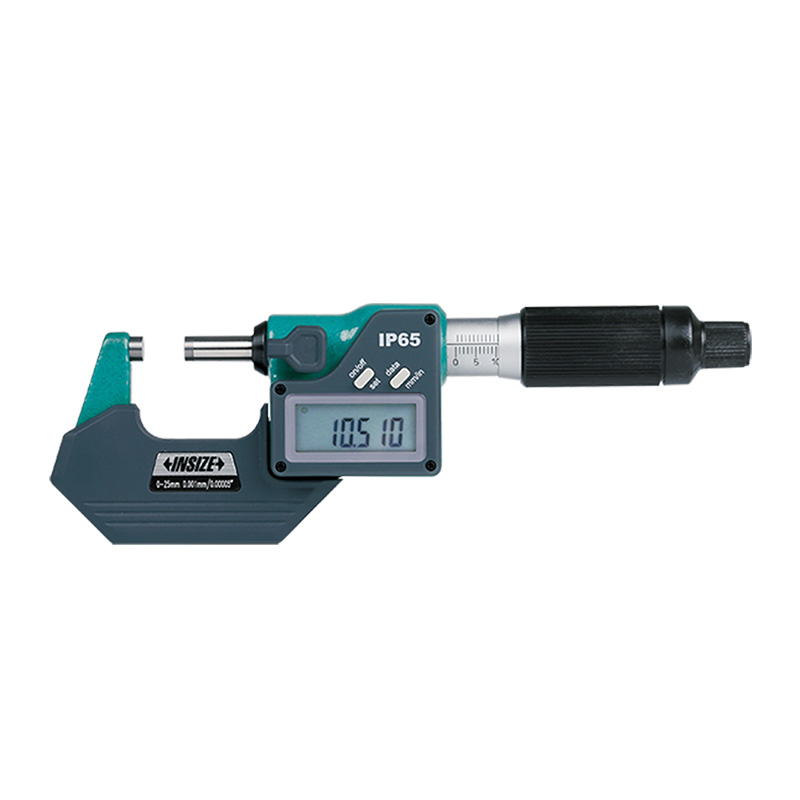

Quick Feeding Digital Outside Micrometers
Code: 3105
2mm feeding of each turn
Button function: on/off, set, mm/inch, data transmission
Automatic power off
Carbide measuring faces, friction thimble
Supplied with spherical anvil

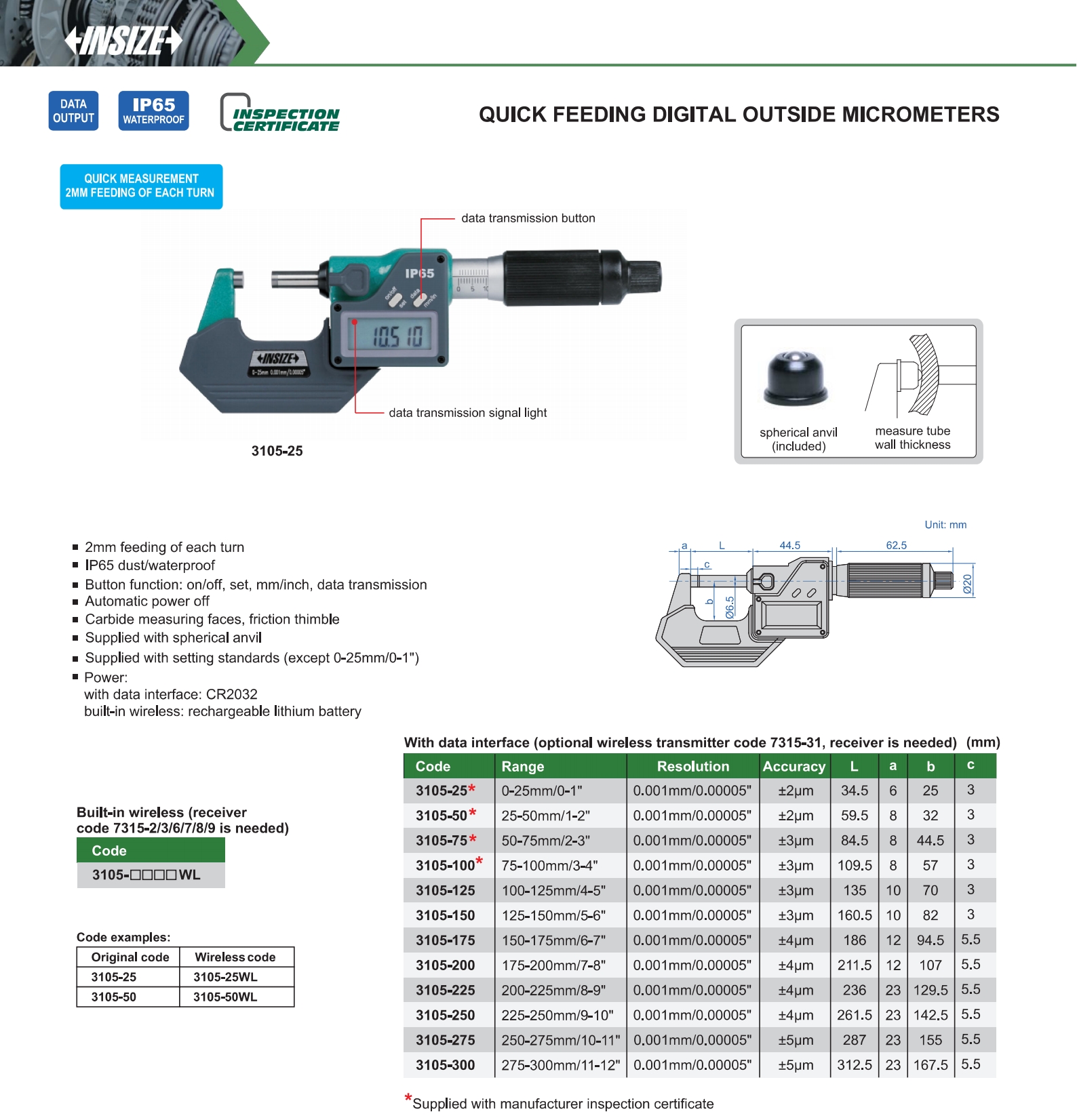

| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3105-25 | 0-25mm/0-1" | ±2µm | 0.001mm/0.00005" | with data interface |
| 3105-50 | 25-50mm/1-2" | ±2µm | 0.001mm/0.00005" | with data interface |
| 3105-75 | 50-75mm/2-3" | ±3µm | 0.001mm/0.00005" | with data interface |
| 3105-100 | 75-100mm/3-4" | ±3µm | 0.001mm/0.00005" | with data interface |
| 3105-125 | 100-125mm/4-5" | ±3µm | 0.001mm/0.00005" | with data interface |
| 3105-150 | 125-150mm/5-6" | ±3µm | 0.001mm/0.00005" | with data interface |
| 3105-175 | 150-175mm/6-7" | ±4µm | 0.001mm/0.00005" | with data interface |
| 3105-200 | 175-200mm/7-8" | ±4µm | 0.001mm/0.00005" | with data interface |
| 3105-225 | 200-225mm/8-9" | ±4µm | 0.001mm/0.00005" | with data interface |
| 3105-250 | 225-250mm/9-10" | ±4µm | 0.001mm/0.00005" | with data interface |
| 3105-275 | 250-275mm/10-11" | ±5µm | 0.001mm/0.00005" | with data interface |
| 3105-300 | 275-300mm/11-12" | ±5µm | 0.001mm/0.00005" | with data interface |
| 3105-25WL | 0-25mm/0-1" | ±2µm | 0.001mm/0.00005" | built-in wireless |
| 3105-50WL | 25-50mm/1-2" | ±2µm | 0.001mm/0.00005" | built-in wireless |
| 3105-75WL | 50-75mm/2-3" | ±3µm | 0.001mm/0.00005" | built-in wireless |
| 3105-100WL | 75-100mm/3-4" | ±3µm | 0.001mm/0.00005" | built-in wireless |
| 3105-125WL | 100-125mm/4-5" | ±3µm | 0.001mm/0.00005" | built-in wireless |
| 3105-150WL | 125-150mm/5-6" | ±3µm | 0.001mm/0.00005" | built-in wireless |
| 3105-175WL | 150-175mm/6-7" | ±4µm | 0.001mm/0.00005" | built-in wireless |
| 3105-200WL | 175-200mm/7-8" | ±4µm | 0.001mm/0.00005" | built-in wireless |
| 3105-225WL | 200-225mm/8-9" | ±4µm | 0.001mm/0.00005" | built-in wireless |
| 3105-250WL | 225-250mm/9-10" | ±4µm | 0.001mm/0.00005" | built-in wireless |
| 3105-275WL | 250-275mm/10-11" | ±5µm | 0.001mm/0.00005" | built-in wireless |
| 3105-300WL | 275-300mm/11-12" | ±5µm | 0.001mm/0.00005" | built-in wireless |
