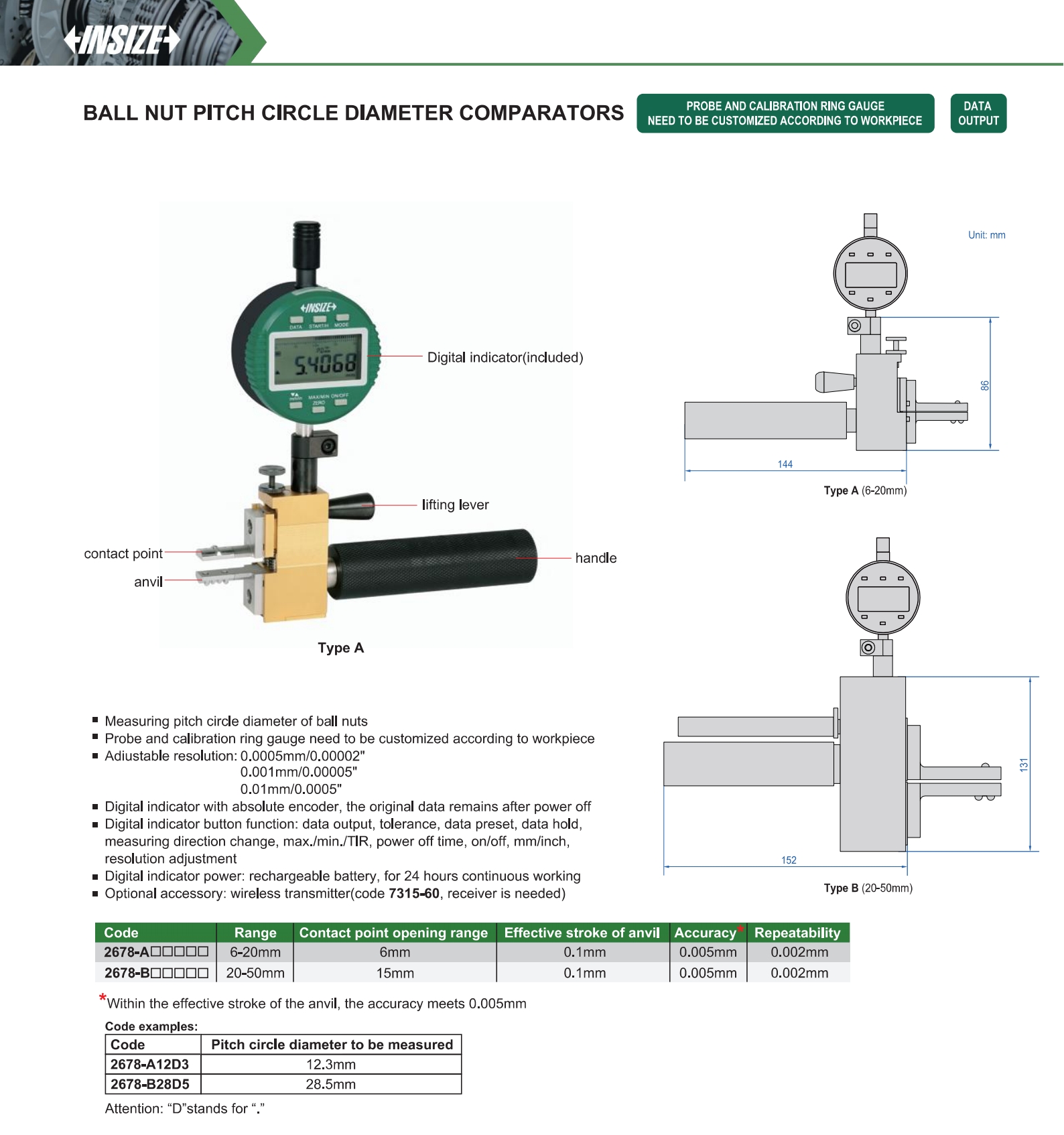

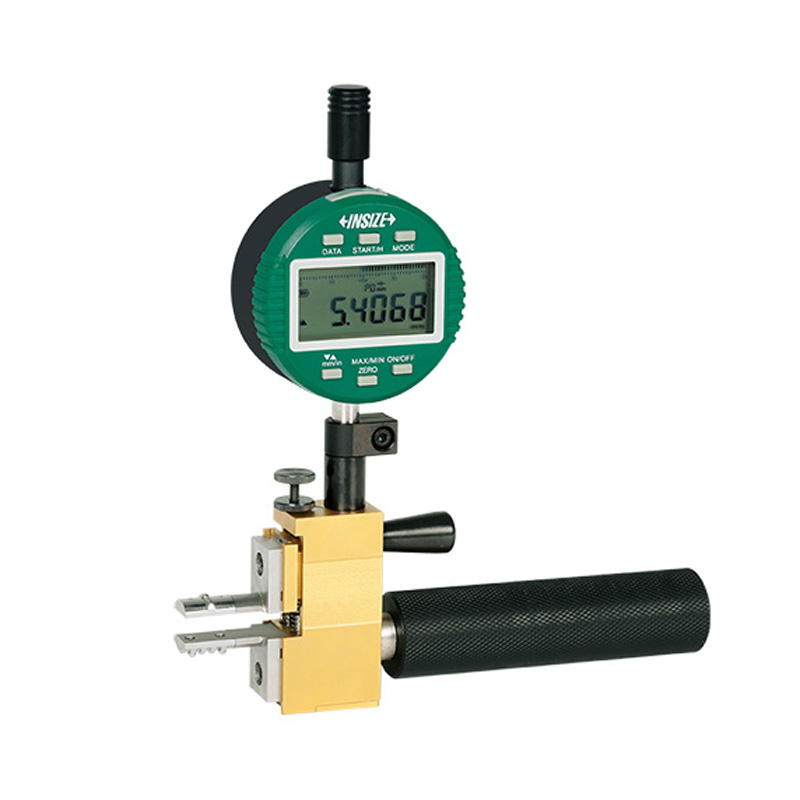

Ball Nut Pitch Circle Diameter Comparators
Code: 2678
Measuring pitch circle diameter of ball nuts
Probe and calibration ring gauge need to be customized according to workpiece
Digital indicator with absolute encoder, the original data remains after power off
Digital indicator button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TlR, power off time, on/off, mm/inch, resolution adjustment
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2678-A□□□□□ | 6-20mm | 0.005mm | 0.0005mm/0.00002"， 0.001mm/0.00005"， 0.01mm/0.0005" |
| 2678-B□□□□□ | 20-50mm | 0.005mm | 0.0005mm/0.00002"， 0.001mm/0.00005"， 0.01mm/0.0005" |
